RS-232 Control
The Blustream ACM200 can be controlled via serial using the serial DB9 connector.
For the full list of command protocols please see 'RS-232 & Telnet Commands' located at the rear of this manual.
Baud Rate: 57600
Data Bit:
8-bit
Parity: None
Stop Bit:
1-bit
Flow Control: None
The Baudrate for the ACM200 can be adjusted using the ACM200 bult-in web-GUI or by issuing the following commands:
RSB x : Set RS-232 Baud Rate to X bps
Where x = 0 : 115200
1 : 57600
2 : 38400
3 : 19200
4 : 9600

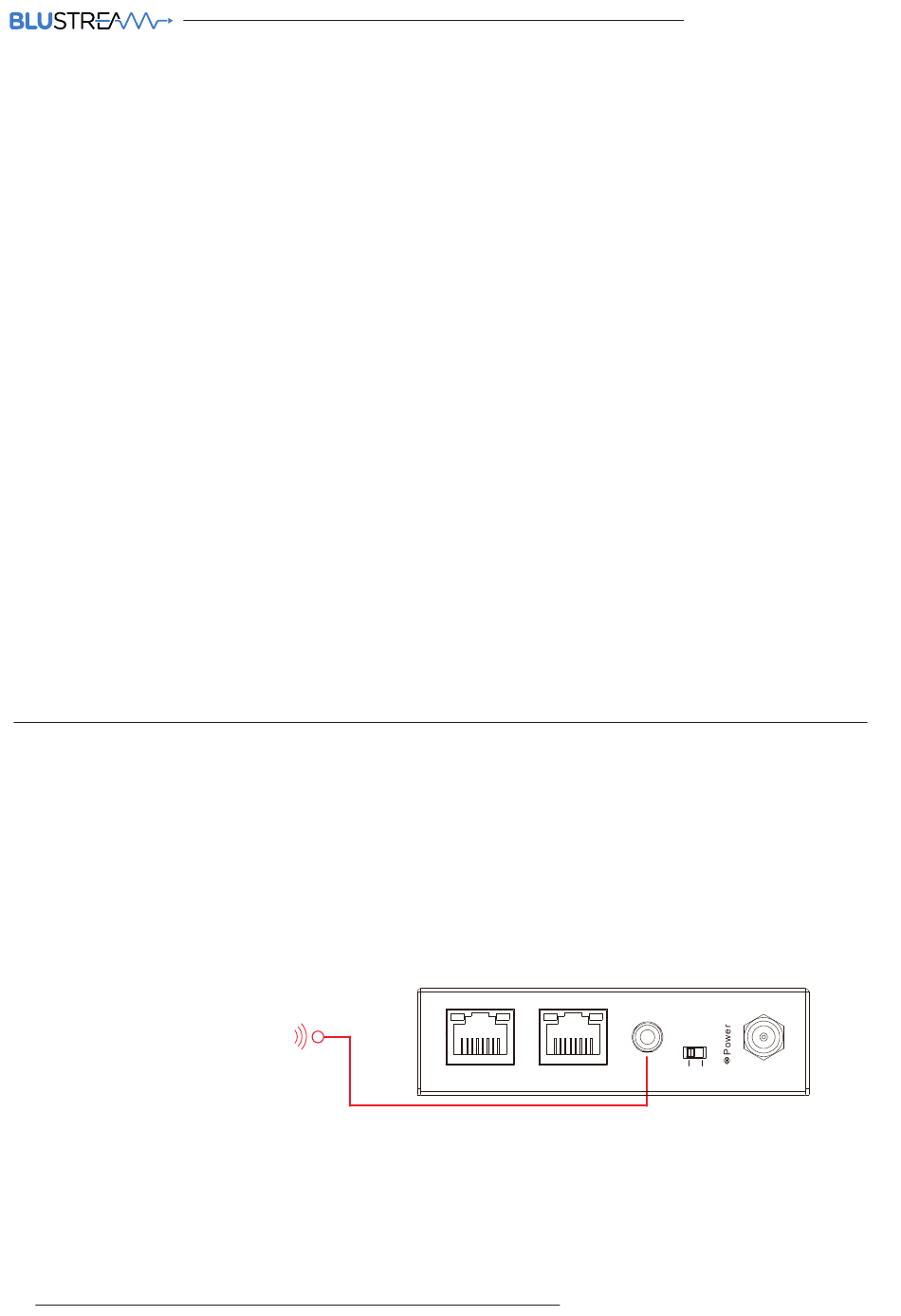

Infrared Control

The Blustream Multicast system can be controlled using local InfraRed control from a third party control system.
Note: Only the source selection feature is available using local IR control. For advanced features such as video wall mode, audio
embedding etc. you will need to use RS-232 or TCP/IP control.
Blustream have created 16x input & 16x output IR commands allowing source selection of up to 16x IPxxxUHD-TX Transmitters
on up to 16x IPxxxUHD-RX Receivers. For systems larger than 16x source devices (IPxxxUHD-TX) it is recommended to use RS-232
or TCP/IP control.
Third Party Control System
04
Normal
RS-232
PoE Link
Rx Tx Gnd
IR IR Yellow Green Yellow
CH Select
TX RX RS-232
Video LAN(PoE) Control LAN
ACM200
ACM200
MCU
IO Level
Reset 5V 12V
Link
Green
IR
MULTICAST UHD
CH
5V 12V
IR Ctrl DC 12V
www.blustream.co.uk / www.blustream.com.au
API DEVELOPMENT
Link
IP100UHD-RX
