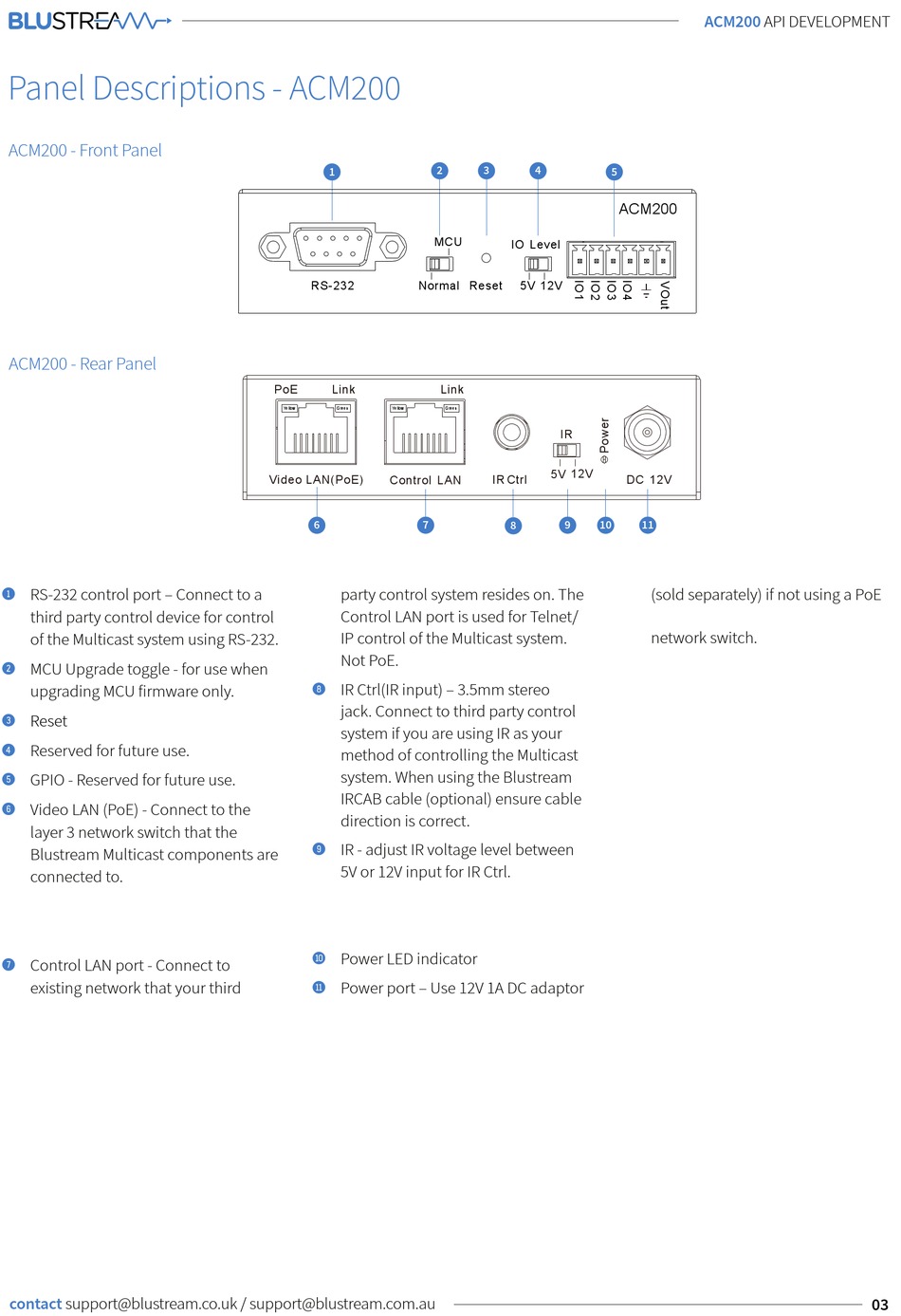

Panel Descriptions - ACM200
ACM200 - Front Panel
ACM200 - Rear Panel
RS-232 control port – Connect to a
1
third party control device for control
of the Multicast system using RS-232.
MCU Upgrade toggle - for use when
2
upgrading MCU firmware only.
Reset
3
Reserved for future use.
4
GPIO - Reserved for future use.
5
Video LAN (PoE) - Connect to the
6
layer 3 network switch that the
Blustream Multicast components are
connected to.
Control LAN port - Connect to
7
existing network that your third
contact
support@blustream.co.uk / support@blustream.com.au
2
1
MCU
MCU
RS-232 Normal
RS-232 Normal
PoE Link
PoE
Link
Yellow Green Yellow
Yellow Green Yellow
Video LAN(PoE) Control LAN
Video LAN(PoE) Control LAN
6 7
party control system resides on. The
Control LAN port is used for Telnet/
IP control of the Multicast system.
Not PoE.
IR Ctrl(IR input) – 3.5mm stereo
8
jack. Connect to third party control
system if you are using IR as your
method of controlling the Multicast
system. When using the Blustream
IRCAB cable (optional) ensure cable
direction is correct.
IR - adjust IR voltage level between
9
5V or 12V input for IR Ctrl.
Power LED indicator
q
Power port – Use 12V 1A DC adaptor
w
3 4
IO Level
IO Level
Reset 5V 12V
Reset 5V 12V
Link
Link
Green
Green
IR
IR
5V 12V
IR Ctrl
5V 12V
IR Ctrl
9 10
8
ACM200 API DEVELOPMENT
5
ACM200
ACM200
DC 12V
DC 12V
11
(sold separately) if not using a PoE
network switch.
