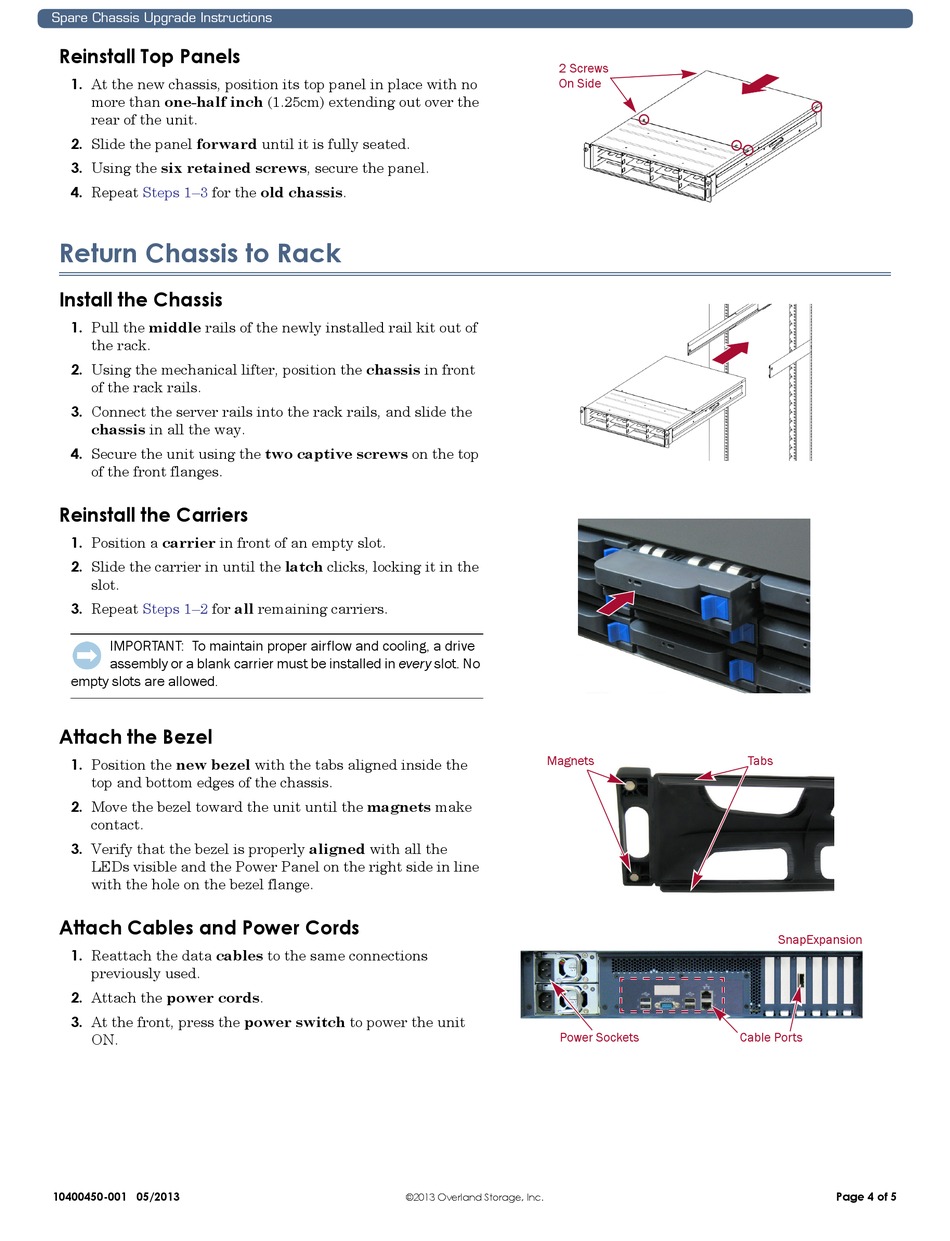

Spare Chassis Upgrade Instructions

Reinstall Top Panels

1. At the new chassis, position its top panel in place with no
more than one-half inch (1.25cm) extending out over the
rear of the unit.
2. Slide the panel forward until it is fully seated.
3. Using the six retained screws, secure the panel.
4. Repeat
Steps 1–3 for the old chassis.

Return Chassis to Rack

Install the Chassis
1. Pull the middle rails of the newly installed rail kit out of
the rack.
2. Using the mechanical lifter, position the chassis in front
of the rack rails.
3. Connect the server rails into the rack rails, and slide the
chassis in all the way.
4. Secure the unit using the two captive screws on the top
of the front flanges.

Reinstall the Carriers

1. Position a carrier in front of an empty slot.
2. Slide the carrier in until the latch clicks, locking it in the
slot.
3. Repeat Steps 1–2 for all remaining carriers.
IMPORTANT: To maintain proper airflow and cooling, a drive
assembly or a blank carrier must be installed in every slot. No
empty slots are allowed.

Attach the Bezel

1. Position the new bezel with the tabs aligned inside the
top and bottom edges of the chassis.
2. Move the bezel toward the unit until the magnets make
contact.
3. Verify that the bezel is properly aligned with all the
LEDs visible and the Power Panel on the right side in line
with the hole on the bezel flange.

Attach Cables and Power Cords

1. Reattach the data cables to the same connections
previously used.
2. Attach the power cords.
3. At the front, press the power switch to power the unit
ON.
10400450-001 05/2013
2 Screws
On Side
Magnets
Power Sockets
©2013 Overland Storage, Inc.
Tabs
SnapExpansion
Cable Ports
Page 4 of 5

