Overland Storage SnapSAN S1000 Replacement Instructions

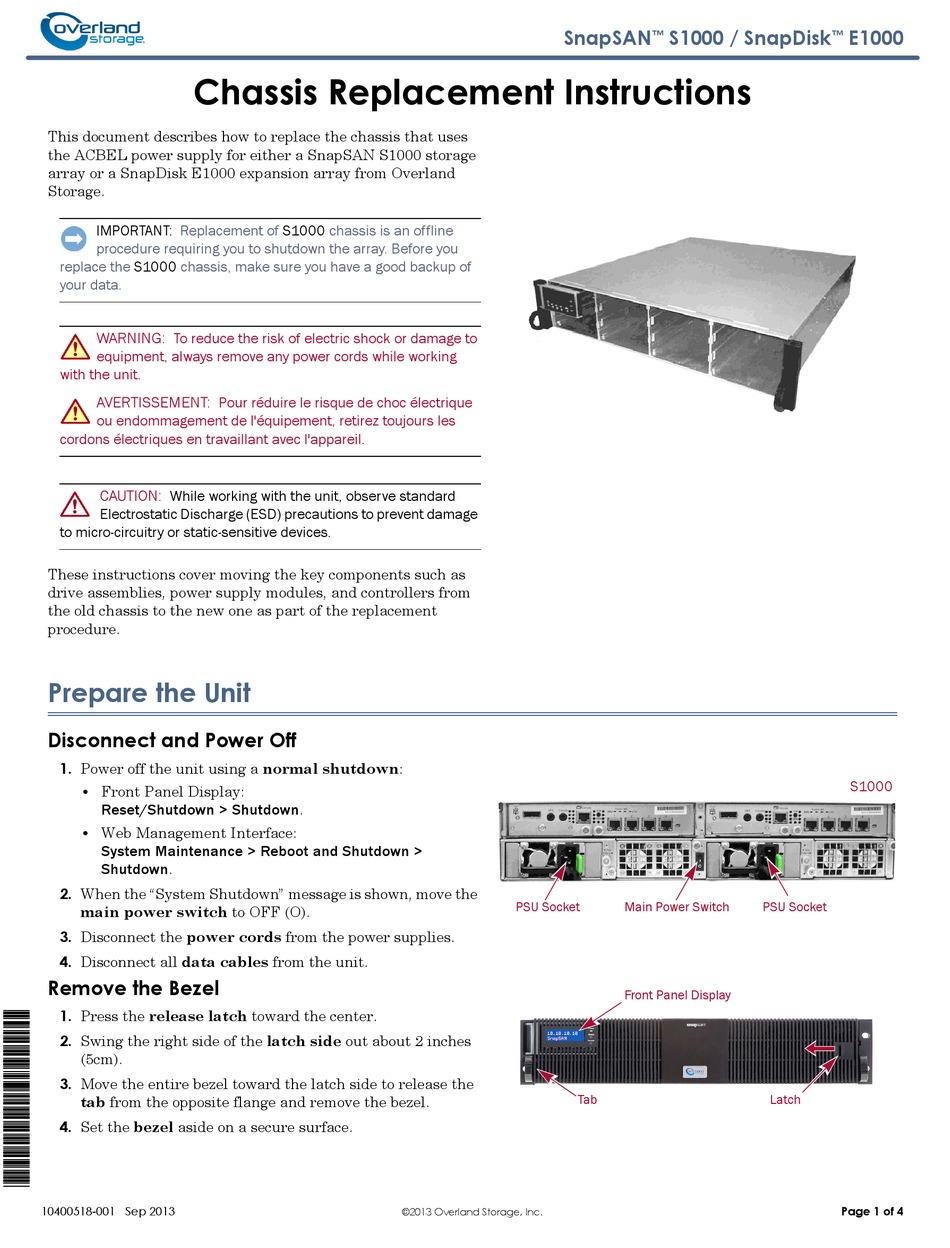

Chassis Replacement Instructions
This document describes how to replace the chassis that uses
the ACBEL power supply for either a SnapSAN S1000 storage
array or a SnapDisk E1000 expansion array from Overland
Storage.
IMPORTANT: Replacement of
procedure requiring you to shutdown the array. Before you
replace the S1000 chassis, make sure you have a good backup of
your data.
WARNING: To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working
with the unit.
AVERTISSEMENT:
Pour réduire le risque de choc électrique
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.
These instructions cover moving the key components such as
drive assemblies, power supply modules, and controllers from
the old chassis to the new one as part of the replacement
procedure.

Prepare the Unit

Disconnect and Power Off

1. Power off the unit using a normal shutdown:
• Front Panel Display:
Reset/Shutdown > Shutdown.
• Web Management Interface:
System Maintenance > Reboot and Shutdown >
Shutdown.
2. When the "System Shutdown" message is shown, move the
main power switch to OFF (O).
3. Disconnect the power cords from the power supplies.
4. Disconnect all data cables from the unit.

Remove the Bezel

1. Press the release latch toward the center.
2. Swing the right side of the latch side out about 2 inches
(5cm).
3. Move the entire bezel toward the latch side to release the
tab from the opposite flange and remove the bezel.
4. Set the bezel aside on a secure surface.
10400518-001 Sep 2013
S1000 chassis is an offline
©2013 Overland Storage, Inc.
SnapSAN S1000 / SnapDisk
™
PSU Socket Main Power Switch
Front Panel Display
Tab
E1000
™
S1000
PSU Socket
Latch
 Page 1 of 4
