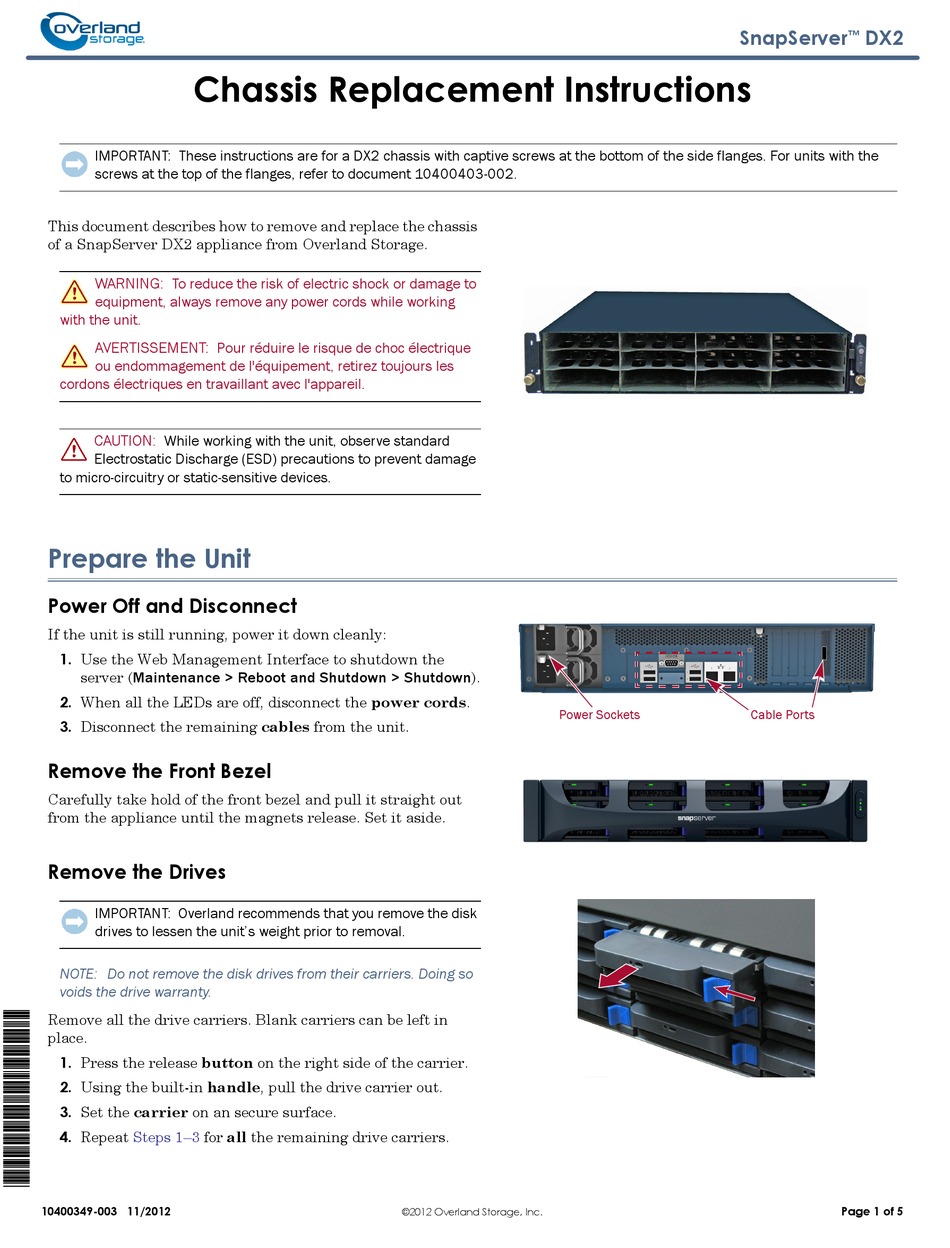

Chassis Replacement Instructions
IMPORTANT: These instructions are for a DX2 chassis with captive screws at the bottom of the side flanges. For units with the
screws at the top of the flanges, refer to document 10400403-002.

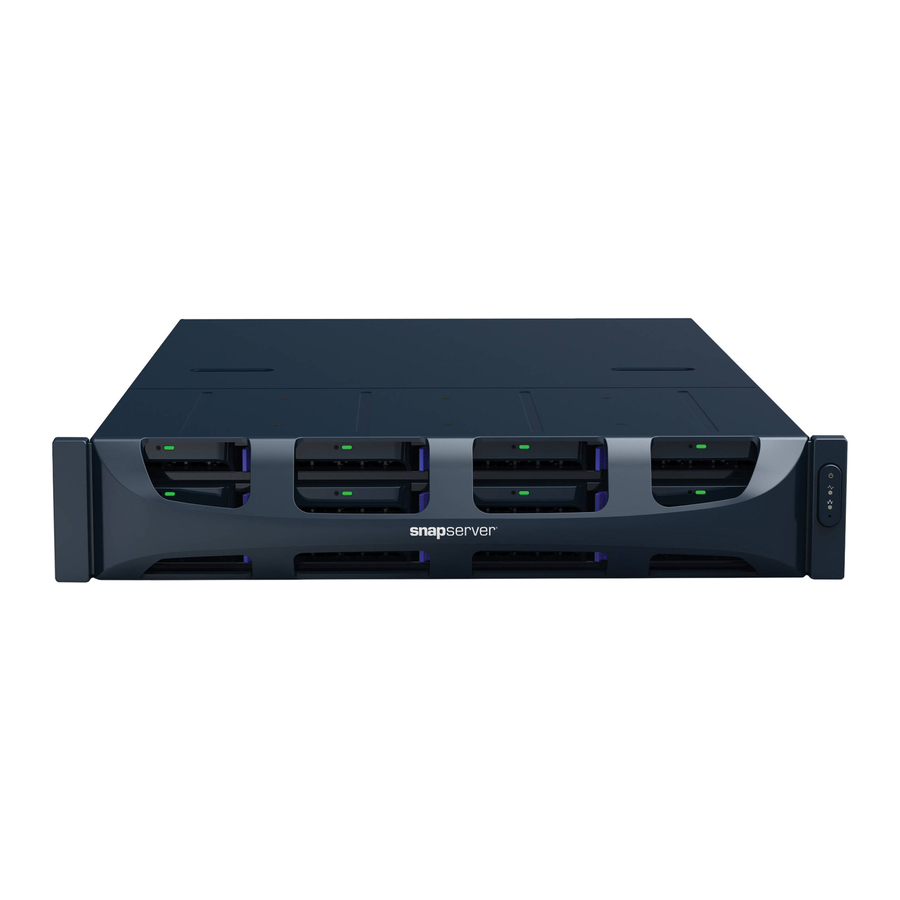

This document describes how to remove and replace the chassis
of a SnapServer DX2 appliance from Overland Storage.
WARNING: To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working
with the unit.
AVERTISSEMENT:
Pour réduire le risque de choc électrique
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.
Prepare the Unit
Power Off and Disconnect
If the unit is still running, power it down cleanly:
1. Use the Web Management Interface to shutdown the
server (Maintenance > Reboot and Shutdown > Shutdown).
2. When all the LEDs are off, disconnect the power cords.
3. Disconnect the remaining cables from the unit.
Remove the Front Bezel
Carefully take hold of the front bezel and pull it straight out
from the appliance until the magnets release. Set it aside.
Remove the Drives
IMPORTANT: Overland recommends that you remove the disk
drives to lessen the unit's weight prior to removal.
NOTE: Do not remove the disk drives from their carriers. Doing so
voids the drive warranty.
Remove all the drive carriers. Blank carriers can be left in
place.
1. Press the release button on the right side of the carrier.
2. Using the built-in handle, pull the drive carrier out.
3. Set the carrier on an secure surface.
4. Repeat Steps 1–3 for all the remaining drive carriers.
10400349-003 11/2012
Power Sockets
©2012 Overland Storage, Inc.
SnapServer DX2
™
Cable Ports
