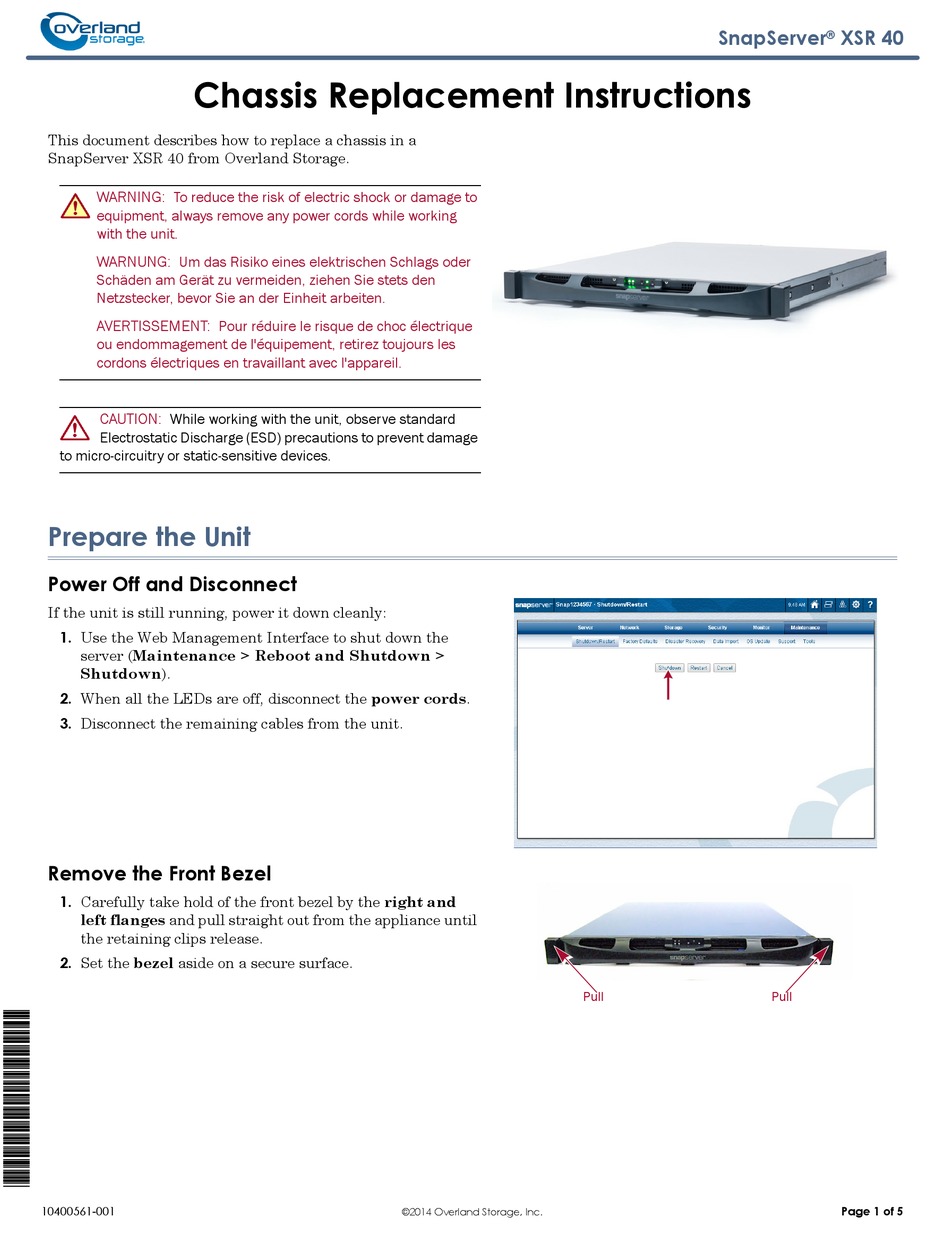

Chassis Replacement Instructions
This document describes how to replace a chassis in a
SnapServer XSR 40 from Overland Storage.
WARNING:
To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working
with the unit.
WARNUNG:
Um das Risiko eines elektrischen Schlags oder
Schäden am Gerät zu vermeiden, ziehen Sie stets den
Netzstecker, bevor Sie an der Einheit arbeiten.
AVERTISSEMENT:
Pour réduire le risque de choc électrique
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.

Prepare the Unit

Power Off and Disconnect

If the unit is still running, power it down cleanly:
1. Use the Web Management Interface to shut down the
server (Maintenance > Reboot and Shutdown >
Shutdown).
2. When all the LEDs are off, disconnect the power cords.
3. Disconnect the remaining cables from the unit.

Remove the Front Bezel

1. Carefully take hold of the front bezel by the right and
left flanges and pull straight out from the appliance until
the retaining clips release.
2. Set the bezel aside on a secure surface.
10400561-001
©2014 Overland Storage, Inc.
SnapServer
Pull
XSR 40
®
Pull
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SnapServer XSR 40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Overland Storage SnapServer XSR 40

Summary of Contents for Overland Storage SnapServer XSR 40

  • Page 1 XSR 40 ® Chassis Replacement Instructions This document describes how to replace a chassis in a SnapServer XSR 40 from Overland Storage. WARNING: To reduce the risk of electric shock or damage to equipment, always remove any power cords while working with the unit.
  • Page 2 1. Remove and retain the screws holding one of the brackets on the old chassis. 2. Position the bracket on the new chassis, and secure it with the retained screws. 3. Repeat Steps 1–2. Continue with “Remove Top Panel.” 10400561-001 Page 2 of 5 ©2014 Overland Storage, Inc. ...
  • Page 3 Remove Screws 8. Install the slot cover in the old chassis with the locking bracket and the retained screws. PCIe Card 10400561-001 Page 3 of 5 ©2014 Overland Storage, Inc. ...
  • Page 4 2. Push the bezel onto the unit until the retaining clips latch and the bezel snaps into place. 3. Verify that the bezel is aligned properly and that all the Retaining Clip LEDs are visible. 10400561-001 Page 4 of 5 ©2014 Overland Storage, Inc. ...
  • Page 5 1. Place the old chassis in the anti-static bag and put it in the replacement part’s box. 2. Use the existing packing materials to secure it in the box. 3. Use an RMA to return the part to Overland Storage. For return shipping details and RMA number, go to: http://docs.overlandstorage.com/return-instructions http://support.overlandstorage.com...
