Ursalink AM100 Series User Manual

Hide thumbs Also See for AM100 Series:
Table of Contents

Advertisement

Quick Links

AM100 Series User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ursalink AM100 Series

Summary of Contents for Ursalink AM100 Series

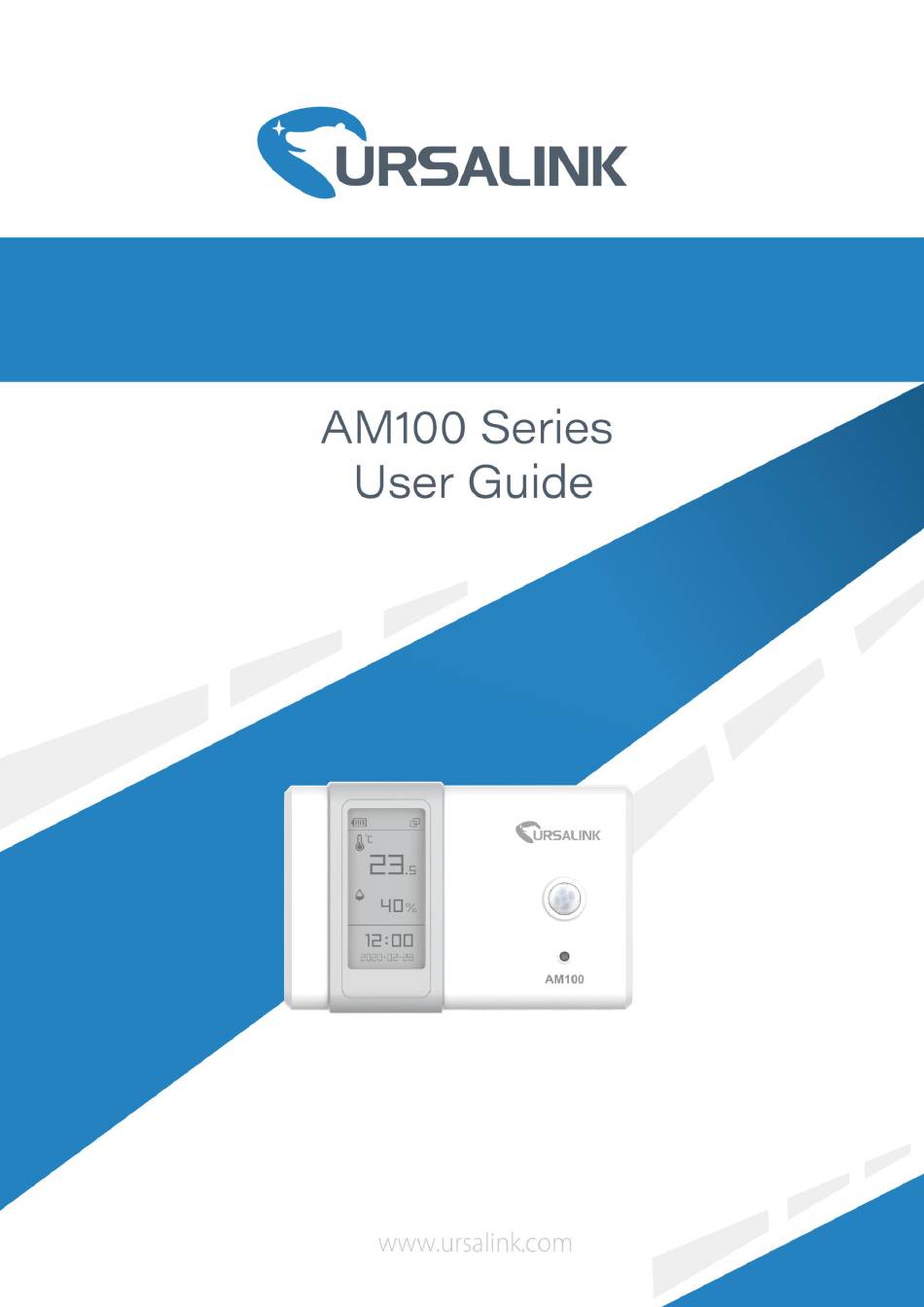

  • Page 1 AM100 Series User Guide...
  • Page 2 Do not place the device close to objects with naked flames, heat source (oven or sunlight), cold source, liquid and extreme temperature changes.  The device is not intended to be used as a reference sensor, and Ursalink will not should responsibility for any damage which may result from inaccurate readings.

  • Page 3: Table Of Contents

    7. Sensor Parameters (for App and PC).....................21 7.1 LoRa WAN Settings......................21 7.1.1 Basic Settings-OTAA....................21 7.1.2 Basic Settings-ABP....................22 7.1.3 Channel Settings.......................23 7.2 Device Settings........................25 7.2.1 General........................25 7.2.1 Data Collection......................25 7.2.2 Data Calibration......................26 7.2.3 Threshold........................27 8.Sensor Management via Ursalink Cloud..................27 8.1 Ursalink Cloud Registration....................27...
  • Page 4 AM100 Series User Guide 8.2 Add a Ursalink LoRaWAN Gateway..................28 8.3 Add AM100/AM102 to Cloud....................29...

  • Page 5: Overview

    Sensor data are transmitted in real-time using standard LoRaWAN protocol. LoRaWAN enables encrypted radio transmissions over long distance while consuming very little power. The user can obtain sensor data and view the trend of data change through Ursalink Cloud or through the user's own Network Server.
  • Page 6 AM100 Series User Guide Detection Area 94 ° Horizontal, 82 ° Vertical Detection Distance Output Range 0-65535 Light Range 60000 lux (Visible + IR, IR) Accuracy ±30% Range 400 - 5000 ppm Accuracy ±30 ppm or ±3 % of reading...

  • Page 7: Dimensions(Mm)

    Mounting Warranty Quick (LR6) Sticker Screws Card Guide If any of the above items is missing or damaged, please contact your Ursalink sales representative. 2.2 Product Overview Front Panel: ①E-ink screen ② NFC Area ③ LoRa Antenna (Internal) ④PIR Sensor...

  • Page 8: Power Supply

    Remove the battery cover and install two new AA/LR6 batteries. Batteries can be replaced on the fly. 3.2 External Power Supply AM100 series can be powered by type-C USB port (5V, 100mA). When battery and external power are both installed, external power will power the device first.

  • Page 9: Sensor Installation

    There should not be any isolates or barriers in PIR detection range. 4.2 Installation Note In order to ensure the best detection and LoRaWAN communication effect, it is recommended to install AM100 series as follows: There should not be any isolates or barriers in PIR and light detection range. ...

  • Page 10: Wall Mounting

    4. Mount the device on the wall. 5. Turn ON/OFF the Sensor AM100 series can be turned ON/OFF via smartphone or computer with NFC (Near Field Communication) or button. Select one of following methods to turn on/off the device. Note: When AM100/AM102 is off, the screen staticly displays the following information which...

  • Page 11: Turn On/Off Via Smartphone App

    AM100 Series User Guide 5.1 Turn ON/OFF via Smartphone APP 1. Download Ursalink configuration APP “Toolbox” and install it on your smartphone. The smartphone must support NFC. 2. Enable NFC on the smartphone and open the APP. 3. Attach the smartphone with NFC area to the device.

  • Page 12: Turn On/Off Via Pc Software

    AM100 Series User Guide 5.2 Turn ON/OFF via PC Software 1. Download Ursalink configuration software “Toolbox” and open the software. 2. Connect NFC reader to computer and attach the device to NFC reader. 3. Select type as NFC and serial port of NFC reader, then click “save”.

  • Page 13: Turn On/Off Via Button

    6.Sensor Configuration Ursalink AM100 series sensors can be monitored and configured via NFC technology. In order to protect the security of sensor, password validation is required when turning on/off the sensor or changing configuration. Select one of the following ways to configure AM sensors.

  • Page 14: Read Configuration

    AM100 Series User Guide 6.1.1 Read Configuration 1. Open APP “Toolbox” and click “Read” to read current data of device. 2.Attach the smartphone with NFC area to the device until the APP shows a success prompt. Note: Read failure can be caused by long distance, wrong location or rapid movement.

  • Page 15: Template Settings

    AM100 Series User Guide 3. Enter password (default password: 123456). 4. Attach the smartphone with NFC area to the device and wait a few seconds until APP shows a success prompt. The device will automatically re-join the network if LoRaWAN paramters are changed.
  • Page 16 AM100 Series User Guide 2. Attach the smartphone with NFC area to another device. 3. Select the template file from Toolbox and click “Write”. 4. Enter password of this device and keep the two devices close until the APP shows a success...

  • Page 17: Configuration Via Pc

    AM100 Series User Guide 5. Slide the template item left to edit or delete the template. 6.2 Configuration via PC Make sure “Toolbox” is downloaded on your computer. 6.2.1 Read Configuration 1. Open software “Toolbox” and click “Read” to read current information of device.

  • Page 18: Write Configuration

    AM100 Series User Guide Note: Failing to read can be caused by long distance, wrong location, or rapid movement. 6.2.2 Write Configuration 1. Go to “Settings” page to change parameters as requirements and click “save”. 2. Click “Write” and enter the correct password (default password: 123456).

  • Page 19: Template And Reset

    AM100 Series User Guide Note: Keep the two devices close and don’t move them in order that you can get the best connectivity as possible when upgrading. Failing to upgrade can be caused by long distance, wrong location, or rapid movement.
  • Page 20 AM100 Series User Guide 3. Click”Browse” to select the correct template from computer. 4. Click”Import”to import the template to the device. 6.2.4.2 Reset Click the”Reset” to reset the setting to factory default.

  • Page 21: Sensor Parameters (For App And Pc)

    7. Sensor Parameters (for App and PC) 7.1 LoRa WAN Settings 7.1.1 Basic Settings-OTAA Location: Ursalink ToolBox (PC): LoRaWAN Settings → Basic Ursalink ToolBox (APP): Device → Settings → LoRaWAN Settings Basic Settings-OTAA Item Description Default Enter the application EUI. The Network Server receives...

  • Page 22: Basic Settings-Abp

    Network Server will not adjust the datarate of the device. 7.1.2 Basic Settings-ABP Location: Ursalink ToolBox (PC): LoRaWAN Settings → Basic Ursalink ToolBox (APP): Device → Settings → LoRaWAN Setting Basic Settings-ABP Item Description Default Enter the application EUI.The Network Server receives...

  • Page 23: Channel Settings

    Network Server will not adjust the datarate of the device. 7.1.3 Channel Settings Location: Ursalink ToolBox (PC): LoRaWAN Settings → Channel Ursalink ToolBox (APP): Device → Settings → LoRaWAN Settings Note: Make sure the LoRa channel configuration of AM100 series matches the LoRaWAN gateway.
  • Page 24 AM100 Series User Guide LoRa frequency configuration is as follows if the sensor LoRa frequency is one of EU433/EU868/RU864/IN865/AS923/KR920: LoRa frequency configuration is as follows if the sensor LoRa frequency is one of CN470/US915/AU915: Enter the index of the channel to be enabled in the input box, separated by commas.

  • Page 25: Device Settings

    16 channels numbered 80 to 95 utilize LoRa 125 kHz BW starting at 486.3 MHz and incrementing linearly by 1.6 MHz to 489.3. 7.2 Device Settings 7.2.1 General Location: Ursalink ToolBox (PC): Device Settings → General Ursalink ToolBox (APP): Device → Settings → General Settings Device General Settings Item Description Default Device Type Show the type of the device.

  • Page 26: Data Calibration

    AM100 Series User Guide Ursalink ToolBox (APP): Device → Settings → Data Collection Settings Note: The data displayed on the screen is the current value. The data reported to the gateway is the average of the reporting interval. 7.2.2 Data Calibration Location: Ursalink ToolBox (PC): Device Settings →...

  • Page 27: Threshold

    5s. 8.Sensor Management via Ursalink Cloud Ursalink cloud is a comprehensive platform that provides multiple services including device remote management and data visualization with the easiest operation procedures. 8.1 Ursalink Cloud Registration Register and log in Ursalink Cloud.
  • Page 28 AM100 Series User Guide 8.2 Add a Ursalink LoRaWAN Gateway 1. Enable “Ursalink” type network server and “Ursalink Cloud” mode in gateway web GUI. Note: Ensure gateway has accessed the Internet.
  • Page 29 AM100 Series User Guide 2.Go to “My Devices->Gateway” of Ursalink Cloud and click “Add” to add gateway to Ursalink Cloud via SN. 3.Check if gateway is online in Ursalink Cloud. 8.3 Add AM100/AM102 to Cloud 1. Go to “Device->My Devices” and click “Add Device”. Fill in the SN of AM100/AM102 and select associated gateway.
  • Page 30 AM100 Series User Guide 3.Go to “Dashboard” page to add widgets to the dashboard. -END-...

This manual is also suitable for:

Am102Am100
