- Page 1 SB401-MN Storage Server Barebone User's Manual UM_SB401-MN_v1_081419...
-
Page 2: Table Of Contents
Table of Contents Preface ������������������������������������������������������������������������������������������������� i Safety Instructions ������������������������������������������������������������������������������ ii About This Manual ������������������������������������������������������������������������������ iv Chapter 1� Product Features �������������������������������������������������������������� 1 1�1 Box Contents ������������������������������������������������������������������������������������1 1�2 Specifications������������������������������������������������������������������������������������2 1�3 Features ��������������������������������������������������������������������������������������������3 Chapter 2� Hardware Setup ���������������������������������������������������������������� 6 2�1 Central Processing Unit Setup ����������������������������������������������������������6 2.1.1 Processor Installation ..................6 2�2 System Memory Setup �����������������������������������������������������������������������9 2.2.1 DIMM Installation ....................9... - Page 3 3.6.5 Drive Slot Map ....................37 Chapter 4. BIOS Configuration Settings ������������������������������������������� 38 4�1 Navigation Keys �������������������������������������������������������������������������������38 4�2 BIOS Menu �������������������������������������������������������������������������������������39 4�3 Main �����������������������������������������������������������������������������������������������40 4.3.1 Main ........................40 4�4 Advanced ����������������������������������������������������������������������������������������41 4.4.1 iSCSI Configuration ..................41 4.4.2 Intel® Virtual RAID on CPU ................41 4.4.3 Trusted Computing ..................
- Page 4 4.6.4 UPI Configuration .................... 50 4.6.5 Memory Configuration ..................51 4.6.6 IIO Configuration ..................... 51 4�7 Server Management �������������������������������������������������������������������������54 4.7.1 Server Management ..................54 4.7.2 System Event Log .................... 55 4.7.3 BMC Network Configuration ................55 4�8 Security �������������������������������������������������������������������������������������������56 4.8.1 Security ......................56 4�9 Boot ������������������������������������������������������������������������������������������������58 4.9.1 Boot ........................
- Page 5 Copyright © 2019 AIC, Inc� All Rights Reserved� This document contains proprietary information about AIC products and is not to be disclosed or used except in accordance with applicable agreements.
- Page 6 Document Release History Release Date Version Update Content August User's Manual release to public. 2019...
-
Page 7: Preface
Disclaimer AIC shall not be liable for technical or editorial errors or omissions contained herein. The information provided is provided "as is" without warranty of any kind. To the extent permitted by law, neither AIC or its affiliates, subcontractors or suppliers will be liable for incidental, special or consequential damages including downtime cost;... -
Page 8: Safety Instructions
Safety Instructions Before getting started, please read the following important cautions: • All cautions and warnings on the equipment or in the manuals should be noted. • Most electronic components are sensitive to electrical static discharge. Therefore, be sure to ground yourself at all times when installing the internal components. •... - Page 9 • If one of the following situations arise, the equipment should be checked by service personnel: 1. The power cord or plug is damaged. 2. Liquid has penetrated the equipment. 3. The equipment has been exposed to moisture. 4. The equipment does not work well or will not work according to its user manual. 5.
-
Page 10: About This Manual
This document pellucidly presents a brief overview of the product design, device installation, and firmware settings for SB401-MN. For the latest version of this user's manual, please refer to the AIC website: https://www.aicipc.com/en/productdetail/51124. -
Page 11: Chapter 1� Product Features

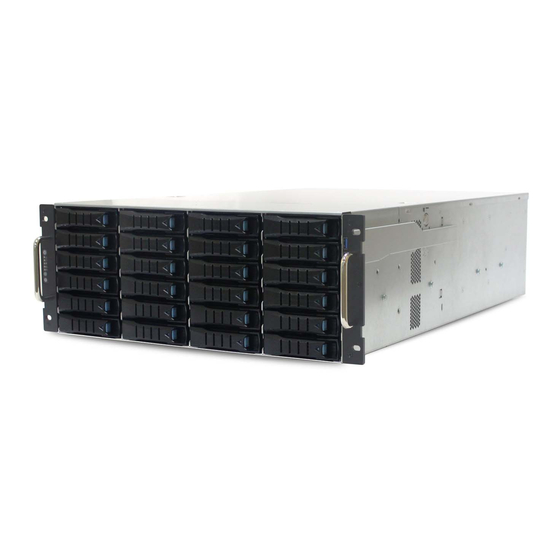

SB401-MN User Manual SB401-MN User Manual Chapter 1. Product Features SB401-MN is a high density storage server that includes mother board, chassis, power supply, and HDD backplane. For more information about our product, please visit our website at http://www.aicipc.com/en. Before removing the subsystem from the shipping carton, visually inspect the physical condition of the shipping carton. -
Page 12: 1�2 Specifications
SB401-MN User Manual Chapter 1. Product Features 1.2 Specifications mm : 430 x 680 x 174.3 AMI UEFI BIOS BIOS Type Dimensions (W x D x H) • ACPI inches : 17 x 26.8 x 6.8 • PXE • WOL... -
Page 13: 1�3 Features
Chapter 1. Product Features 1�3 Features SB401-MN is a reliable 4U storage server barebone with 24 x 3.5” hot swap drive bays at the front and 2 x 2.5" hot swap drive bays at the rear. This product is designed to accommodate the serverboard, Mensa, which supports two Intel®... - Page 14 SB401-MN User Manual Chapter 1. Product Features Front Panel Item Description Item Description Power Button System Alert LED Power Status LED System ID Button Drive Activity LED System Reset Button LAN Activity LED USB 3.0 Type A port Rear Panel ...
- Page 15 SB401-MN User Manual Chapter 1. Product Features Top View Item Description Mensa Motherboard 4 x 80x38mm easy swap fans...
-
Page 16: Chapter 2� Hardware Setup
Chapter 2� Hardware Setup SB401-MN User Manual Chapter 2. Hardware Setup This section describes a simple instruction guide for installing the hardware components on the serverboard system. Turn off and unplug all system and peripheral devices before proceeding. 2�1 Central Processing Unit Setup The serverboard supports dual Xeon scalable processors with Socket P0 (LGA-3647 Socket). - Page 17 SB401-MN User Manual Chapter 2. Hardware Setup Processor Socket Assembly: The server board includes two processor sockets (LGA-3647), supports one or two of the Intel® Xeon® Processor Scalable Family and has a Thermal Design Power (TDP) of up to 205W on selected models.
- Page 18 SB401-MN User Manual Chapter 2. Hardware Setup PHM Screw Installation Order The PHM sits level with the processor socket assembly. The PHM is NOT installed properly if it does not sit level with the processor socket assembly. Once the PHM is seated over the processor socket assembly, the four heat sink torque screws must be secured in the following order as shown below.
-
Page 19: 2�2 System Memory Setup
SB401-MN User Manual Chapter 2. Hardware Setup 2�2 System Memory Setup This server board supports 12 DIMM memory slots with 6 channel per CPU. 2�2�1 DIMM Installation Step 1 Unlock the dimm socket by pressing the retaining clips outward. Step 2 Insert the memory module into the slot. Make sure that the dimm notch is accurately positioned. -
Page 20: Dimm Location
SB401-MN User Manual Chapter 2. Hardware Setup 2�2�2 DIMM Location The DIMMs are displayed on the Mensa board as DIMM F1, DIMM E1, DIMM D1, DIMM A1, DIMM B1, DIMM C1, DIMM C0, DIMM B0, and DIMM A0. To ensure satisfactory performance, you need to: ... -
Page 21: Dimm Slot Installation Order
SB401-MN User Manual Chapter 2. Hardware Setup 2�2�3 DIMM Slot Installation Order Populate the DIMM slots according to the suggested order below to ensure a stable system performance. CPU 1 CPU0 DIMM_F1 DIMM_C0 DIMM_E1 DIMM_B0 DIMM_A1 DIMM_A0 2 DIMM DIMM_D1... - Page 22 SB401-MN User Manual Chapter 2. Hardware Setup CPU 1 CPU0 DIMM_F1 DIMM_C0 DIMM_E1 DIMM_B0 DIMM_E1 DIMM_C0 DIMM_D1 DIMM_A0 DIMM_D1 DIMM_B0 DIMM_A1 DIMM_A0 CPU 1 CPU 0 10 DIMM DIMM_B1 DIMM_E0 DIMM_C1 DIMM_D0 DIMM_A1 DIMM_D0 DIMM_B1 DIMM_E0 DIMME_C1 DIMM_F0 CPU 1...
-
Page 23: 2�3 Top Cover
SB401-MN User Manual Chapter 2. Hardware Setup 2�3 Top Cover Press the release button x 2 on both sides of the chassis. Slide the top cover towards the rear end of the system barebone. Lift the cover upward to remove. -
Page 24: 2�4 Power Supply Unit Module
SB401-MN User Manual Chapter 2. Hardware Setup 2�4 Power Supply Unit Module Push the ejector to release the module. Pull the handle to remove the module out of the chassis. Push the replaced power supply unit into the chassis. Ensure that the module is hooked into the cage. -
Page 25: 2�5 Fan Module
SB401-MN User Manual Chapter 2. Hardware Setup 2�5 Fan Module 2�5�1 Fan Unplug the cables and connectors. Loosen the captive screw to remove the bracket holder. Pull the fan module from the node. Check to carefully dislodge the rubber connectors from the attached bracket. -
Page 26: Optional Fan
SB401-MN User Manual Chapter 2. Hardware Setup 2�5�2 Optional Fan Dislodge the fan by loosening the captive screw on the fan module. Pull the module out of the chassis. NOTE The fan should be blowing toward the rear end of the chassis. If one of the fans is facing the wrong direction. -
Page 27: 2�6 Hard Disk Drive
SB401-MN User Manual Chapter 2. Hardware Setup 2�6 Hard Disk Drive 2�6�1 HDD: 3�5-inch Press the release button the tray lever to loosen the lever. Pull the tray lever outward completely. Pull the tray out of the system. -
Page 28: Hdd: 2.5-Inch
SB401-MN User Manual Chapter 2. Hardware Setup 2�6�2 HDD: 2�5-inch Press the release button the tray lever to loosen the lever. Pull the tray lever outward completely. Pull the tray out of the system. Insert the hard disk drive into the tray. Ensure that the dimples on the tray match the hard disk drive. -
Page 29: 2�7 Hdd Backplane Module
SB401-MN User Manual Chapter 2. Hardware Setup 2�7 HDD Backplane Module Detach the cables and hard disk drives from the backplane module. Dislodge the screws on the module. Lift the module upward to remove. Insert the replaced HDD backplane into the chassis and secure the screws. -
Page 30: 2�8 Slide Rail Installation
SB401-MN User Manual Chapter 2. Hardware Setup 2�8 Slide Rail Installation NOTE This sections provides a basic instruction for mounting the slide rail onto the system. Tool-less rails vary per order. The rail in this manaul may not exactly match the rail for your system. - Page 31 SB401-MN User Manual Chapter 2. Hardware Setup Install the inner rail onto the system barebone. Lock the keyholes and secure the screws. Keyhole screw Continue installing the outer rail bracket to the mounting frame. Attach the outer rail assembling to the frame and press the bracket to fix the rail onto the frame.
- Page 32 SB401-MN User Manual Chapter 2. Hardware Setup Pull out the middle channel until the ball bearing retainer is locked forward. CAUTION Verify ball bearing retainer is locked forward. Slide the release tab and push barebone into rack. Make sure the barebone is...
-
Page 33: Chapter 3� Hardware Settings
Chapter 3� Hardware Settings SB401-MN User Manual Chapter 3. Hardware Settings This section provides illustrations that display the internal jumpers, connectors, and system LED indicators on the Mensa motherboard. The motherboard layout and essential connectors are listed below for your reference. -
Page 34: 3�2 Motherboard Content List
Chapter 3. Hardware Settings SB401-MN User Manual 3�2 Motherboard Content List Connectors/Jumper/Header Location Connector/Jumper/Header Location Front Panel 4Px2_ATX_PWR PWCN2 SSI_FP Connector System FAN SYS_FAN_1 22 USB3.0-TYPE-RA TYPEA_USB3 Connectors Front USB3.0 4Px2_ATX_PWR PWCN3 USB3_FPIO2 Connector TYPE-A USB2.0 CPU FAN Connectors CPU0_FAN_1... -
Page 35: 3�3 Motherboard Connector And Jumper Location
SB401-MN User Manual Chapter 3. Hardware Settings 3�3 Motherboard Connector and Jumper Location DIMM F1 DIMM E1 DIMM D1 DIMM C0 DIMM B0 DIMM A0 CPU 1 CPU 0 DIMM A1 DIMM B1 DIMM C1 DIMM D0 DIMM E0 PCIe 11... -
Page 36: 3�4 Connector And Jumper
Chapter 3. Hardware Settings SB401-MN User Manual 3�4 Connector and Jumper 1 3 PWCN2/PWCN3: 8-pin ATX Power J104: Clear CMOS Jumper Connector J104 Setting 1 5 VCC12 Pin1-2 Normal (default) 2 6 VCC12 Pin2-3 Clear CMOS 3 7 VCC12 4 8 VCC12 SATA0-3/SATA4-7: 7-pin Vertical SATA3.0... - Page 37 SB401-MN User Manual Chapter 3. Hardware Settings SSATA_SGPIO1: SSATA SGPIO Pin Header J122: VROC Header (full featured RAID 0, 1, 10, 5, using Intel® VROC, for NVMe SSD SKU) 1 2 SSDATA IN 1 2 VCC3_AUX 3 4 SSDATA OUT...
-
Page 38: 3�5 Internal Led Indicator
Chapter 3. Hardware Settings SB401-MN User Manual 3�5 Internal LED Indicator DIMM F1 DIMM E1 DIMM D1 DIMM C0 DIMM B0 DIMM A0 CPU 1 CPU 0 DIMM A1 DIMM B1 DIMM C1 DIMM D0 DIMM E0 PCIe 11 DIMM F0... - Page 39 SB401-MN User Manual Chapter 3. Hardware Settings Signal +3V_AUX State Description The LED shuts off when the BMC BMC Heart Beat controller cannot be detected or BMC_HB_LED properly initiated. The LED blinks per second to Blinking Green indicate that the BMC controller is working normally.
-
Page 40: 3�6 Hdd Backplane
Chapter 3. Hardware Settings SB401-MN User Manual 3�6 HDD Backplane 3�6�1 Connector Location Top view JFAN1 JMCU_UART JFAN4 JI2C4 JEXP_UART JPMBUS JFAN3 JI2C0 JMCU_DBG JFAN2 JI2C3 JEXP2 Flash Sensor Expander Expander Sensor SASHD3 SASHD2 SASHD1 JPWR1 JPWR2 JFRONT Bottom view... -
Page 41: Connectors
SB401-MN User Manual Chapter 3. Hardware Settings 3�6�2 Connectors Power Connector (JPWR1) Description Description +12V +12V +3.3V MUTE_L +5VSTBY PSU_N1 PS_ON_L Power Connector (JPWR2) Description Description +12V +12V +12V +12V... - Page 42 Chapter 3. Hardware Settings SB401-MN User Manual I2C Connector (JI2C0, JI2C3, JI2C4) Description I2C_CLOCK I2C_DATA FAN Connector (JFAN1, JFAN2, JFAN3, JFAN4) Description +12V TACH Console for Expander (JEXP_UART) Description Description DEBUG_RXD SMART_RXD DEBUG_TXD SMART_TXD Console for MCU (JMCU_DBG) Description MCU_RXD...
-
Page 43: Led Indicator
SB401-MN User Manual Chapter 3. Hardware Settings 3�6�3 LED Indicator LED2 LED2 LED1 LED1 SASHD Status LED SASHD Status LED LED3 LED3... - Page 44 Chapter 3. Hardware Settings SB401-MN User Manual Blue (On) HDD present HDD Activity is detected or has locate HDD Activity LEDs Blue (Blinking) HDD(slow). HDD is not connected or is power off. No control bit is set or set by any of the following bits: 1.
-
Page 45: Jumper
SB401-MN User Manual Chapter 3. Hardware Settings 3�6�4 Jumper JMCU_RST JMCU_RST JMD_SEL JMD_SEL Open Normal, default JMCU_RST Close Reset MCU Open Normal, default JMD_SEL Close Boot loader mode 2.54mm Header for Front I/O – JFRONT Fan number select • Fan number select... - Page 46 Chapter 3. Hardware Settings SB401-MN User Manual • AT Mode Setting Description Remark AT_SEL_N Active Low • Mute SW Description Remark MUTE Input(-) Active Low...
-
Page 47: Drive Slot Map
SB401-MN User Manual Chapter 3. Hardware Settings 3�6�5 Drive Slot Map... -
Page 48: Chapter 4. Bios Configuration Settings
Chapter 4. BIOS Configuration Settings Chapter 4 BIOS Configuration Settings SB401-MN User Manual This chapter demonstrates how to configure the UEFI BIOS settings in your system device. You can enter the BIOS screen during system startup. To enter BIOS configuration settings, •... -
Page 49: 4�2 Bios Menu
SB401-MN User Manual Chapter 4 BIOS Configuration Settings 4�2 BIOS Menu Press and to select the options of the menu bar. Press Enter to access the option screen. Menu Description Displays system information such as CPU bus speed, system memory speed, total... -
Page 50: 4�3 Main
Chapter 4 BIOS Configuration Settings SB401-MN User Manual 4�3 Main 4�3�1 Main Main Option Key: Option Key Descriptuon System time Configures current time. System date Configures current date. -
Page 51: 4�4 Advanced
SB401-MN User Manual Chapter 4 BIOS Configuration Settings 4�4 Advanced Advanced Option Key: 4.4.1 iSCSI Configuration iSCSI Configuration Add an Attempt Delete Attempts Change Attempt Order 4�4�2 Intel® Virtual RAID on CPU Intel® Virtual RAID on CPU All Intel VMD controllers 4�4�3 Trusted Computing... -
Page 52: S5 Rtc Wake Settings
Chapter 4 BIOS Configuration Settings SB401-MN User Manual 4�4�5 S5 RTC Wake Settings S5 RTC Wake Settings Disable Fixed Time Dynamic Time Wake up hour Select 0-23. Wake up minute Wake System from S e l e c t 0 - 5 9 f o r Wake up Minute Minute. -
Page 53: Console Redirection Settings
SB401-MN User Manual Chapter 4 BIOS Configuration Settings 4�4�9 Console Redirection Settings Serial Port for Out-Of-Band Management/ Windows Emergency Services (EMS) Console Redirection Settings Out-of-Band Mgmt Port COM1 Terminal Type VT-UTF8 VT100 VT100+ ANSI Bits per Second 115200 9600 19200... -
Page 54: S5 Rtc Wake Setting
Chapter 4 BIOS Configuration Settings SB401-MN User Manual 4�4�12 S5 RTC Wake Setting S5 RTC Wake Settings CSM Support Enable Disable Option ROM Force BIOS Keep Current Messages Network Legacy Do not launch UEFI Storage Legacy Do not launch UEFI... -
Page 55: Nvdimm Adr Configuration
SB401-MN User Manual Chapter 4 BIOS Configuration Settings 4.4.16 NVDIMM ADR Configuration NVDIMM ADR Configuration Assert ADR on Reset Enable Disable Assert ADR on Enable Disable Shutdown 4.4.17 AST2500 Super IO Configuration AST2500 Super IO Configuration Super IO Chip Read only. -
Page 56: Platform Configuration
Chapter 4 BIOS Configuration Settings SB401-MN User Manual 4.5 Platform Configuration 4.5.1 Platform Configuration Platform Option Key: Option Key Description PCH Configuration Displays and provides option to change the PCH Settings. Miscellaneous Configuration Configures active video type. Server ME Configuration... -
Page 57: Pch Configuration
SB401-MN User Manual Chapter 4 BIOS Configuration Settings 4.5.2 PCH Configuration PCH Configuration Power On PCH Devices Restore AC Power Loss Power Off Last State PCI Express Root Enable Disable Port 1 Disable ASPM PCIE ASPM ASPM L1 ASPM Auto... -
Page 58: Miscellaneous Configuration
Chapter 4 BIOS Configuration Settings SB401-MN User Manual Enable/Disable ADR Enable Disable ADR GPIO GPIO_B GPIO_C Host Partition Reset ADR Enable Disable Enable Enable/Disable ADR Enable Held-off Timer PCH DFX 25 uS 50 uS Configuration ADR timer expire time 100 uS... -
Page 59: Socket Configuration
SB401-MN User Manual Chapter 4 BIOS Configuration Settings 4.6 Socket Configuration 4.6.1 Socket Configuration Socket Configuration Option Key: Option Key Description Processor Configuration Displays and provides option to change the Processor Settings. Common RefCode Displays and provides option to change the Common Configuration RefCode Settings. -
Page 60: Processor Configuration
Chapter 4 BIOS Configuration Settings SB401-MN User Manual 4.6.2 Processor Configuration Processor Configuration Hyper-Threading Enable Disable [ALL] Max CPUID Value Enable Disable Limit Execute Disable Bit Enable Disable Enable Intel® TXT Enable Disable Lock Chipset Enable Disable Hardware Prefetcher Enable... -
Page 61: Memory Configuration
SB401-MN User Manual Chapter 4 BIOS Configuration Settings 4.6.5 Memory Configuration Memory Configuration Memory Auto Disable Configuration Memory Frequency Auto 1866 2133 2400 2666 ECC Support Enable Disable Memory Topology Read only. Mirror Mode Mirror Mode Mirror Mode Disable Mirror TAD0... - Page 62 Chapter 4 BIOS Configuration Settings SB401-MN User Manual Socket 0 Auto PcieBr1D00F0 – PCI-E ASPM Support L1 Only Disable Port 1A Enable L0s Support Disable Socket 0 Socket 0 Transparent Bridge PcieBr2D00F0 – Non-Transparent Configuration NTB to NTB Port 2A...
- Page 63 SB401-MN User Manual Chapter 4 BIOS Configuration Settings Socket 1 Socket 1 Hide Port? Configuration Intel® VMD for Enable Volume Management Disable Device for PStack0 Intel VMD Intel® VMD for Enable Intel® VMD for Volume Volume Management Technology Management for...
-
Page 64: 4�7 Server Management
Chapter 4 BIOS Configuration Settings SB401-MN User Manual 4�7 Server Management 4�7�1 Server Management Server Management Option Key: Server Management FRB-2 Timer Enable Disable FRB-2 Timer timeout 3 minutes 4 minutes 5 minutes 6 minutes FRB-2 Timer Policy Do Nothing... -
Page 65: System Event Log
SB401-MN User Manual Chapter 4 BIOS Configuration Settings 4�7�2 System Event Log System Event Log Enable Disable Yes, on next Erase SEL reset Yes, on every reset Do Nothing SEL Components When SEL is Erase Full Immediately Disable Log EFI Status... -
Page 66: 4�8 Security
Chapter 4 BIOS Configuration Settings SB401-MN User Manual 4�8 Security 4�8�1 Security Security Option Key: Security Set administrator password in the Create New Password window. Administrator After you key in the password, the Confirm New Password window Password will pop out to ask for confirmation. - Page 67 SB401-MN User Manual Chapter 4 BIOS Configuration Settings Secure Boot Attempt Secure Boot Enable Disable Secure Boot Mode Standard Custom Provision Factory Default keys Install Factory Default Keys Enroll Efi Image Save All Secure Boot Variables Key Management Platform Key (PK)
-
Page 68: 4�9 Boot
Chapter 4 BIOS Configuration Settings SB401-MN User Manual 4�9 Boot 4�9�1 Boot Boot Option Key: Boot Setup Prompt Number of seconds to wait for setup activation key. 65535 Timeout (0xFFFF) means indefinite waiting. Bootup NumLock State Quiet Boot Enable Disable... -
Page 69: 4�10 Save And Exit
SB401-MN User Manual Chapter 4 BIOS Configuration Settings 4�10 Save and Exit 4�10�1 Save and Exit Save and Exit Option Key: Save and Exit Save Changes and Exit system setup after saving the changes. Exit Discard Changes and Exit system setup without saving any changes. -
Page 70: Chapter 5. Bmc Configuration Settings
Chapter 5. BMC Configuration Settings SB401-MN User Manual Chapter 5. BMC Configuration Settings 5�1 Login NOTE This feature works with the JAVA 6 run time installed console environment. The IP address below is an example using the default IP setting. The IP address is configurable Step 1 Open the browser then type in the default BMC IP address: 192.168.22.108... -
Page 71: 5�2 Web Gui
SB401-MN User Manual Chapter 5. BMC Configuration Settings 5�2 Web GUI 5�2�1 Menu Bar Click to select the options of the menu bar. Menu Description The Dashboard page gives the overall information about the Dashboard status of a device. The Sensor Readings page displays all the sensor related Sensor information. -
Page 72: User Information And Quick Button
SB401-MN User Manual Chapter 5. BMC Configuration Settings 5�2�2 User Information and Quick Button The user information and quick access buttons are located at the top right corner. It displays the logged-in user, his/her privilege and the four quick buttons allowing you to perform different functions. - Page 73 SB401-MN User Manual Chapter 5. BMC Configuration Settings 5�2�3 Dashboard The Dashboord page displays device, system, and network information. Click Dashboard on the menu bar to view the overall information of the server. 5�2�4 Sensor The Sensor page displays the status and records on related sensors.
-
Page 74: System Inventory
SB401-MN User Manual Chapter 5. BMC Configuration Settings 5�2�5 System Inventory The System Inventory page displays network information, including Vendor name, Model, and Sofware version. Click System Inventory on the menu bar to open. 5�2�6 FRU Information The FRU Information page displays Basic Information, Chassis Information, Board Information and Product Information of the FRU device. -
Page 75: Logs And Reports
SB401-MN User Manual Chapter 5. BMC Configuration Settings 5�2�7 Logs and Reports The System Inventory page displays IPMI Event Log and Video Log. Click Logs and Reports from the menu bar select Event Log or Video Log to view the contents. -
Page 76: Settings
SB401-MN User Manual Chapter 5. BMC Configuration Settings 5�2�8 Settings The Settings page displays the configuration settings for Date & Time, External User Services, KVM Mouse Setting, Log Settings, Media Redirection Settings, Network Settings, PAM Order Settings, Platform Event Filter, Services, SMTP Settings, SSL... - Page 77 SB401-MN User Manual Chapter 5. BMC Configuration Settings Settings Menu and Option Keys: Settings Date and Time LDAP/E-directory Active directory Radius Settings Settings Settings External User General Advanced Services General Role General Role Radius Radius Settings Groups Settings Groups Settings...
-
Page 78: Remote Control
SB401-MN User Manual Chapter 5. BMC Configuration Settings 5�2�9 Remote Control The Remote Control page displays the configuration for power control and remote KVM. Click Java Console to start the JViewer video redirection. - Page 79 SB401-MN User Manual Chapter 5. BMC Configuration Settings Click Launch KVM to open the Remote KVM page.
- Page 80 SB401-MN User Manual Chapter 5. BMC Configuration Settings Procedure To Start KVM 1. Click Start KVM to start the H5Viewer video redirection. 2. Click Browse to select CD Image. 3. Click Start Media to redirect the selected CD image file to the Host.
- Page 81 SB401-MN User Manual Chapter 5. BMC Configuration Settings Remote KVM Menu and Option Key Button Description Start KVM Starts the H5Viewer video redirection. Stop KVM Stops the H5Viewer video redirection. Pause Video This option is used for pausing Console Redirection.
- Page 82 SB401-MN User Manual Chapter 5. BMC Configuration Settings Record This option is to start recording the screen. Video Stop Video Record This option is used to stop the recording. Recording Record This option is used to set Video Recording Duration.
-
Page 83: Power Control
SB401-MN User Manual Chapter 5. BMC Configuration Settings 5�2�10 Power Control The Power Control page allows you to view and control the power of your server. To open Power Control, click Power Control from the menu bar. The various options of Power Control are given below. -
Page 84: Chassis Identify Control
SB401-MN User Manual Chapter 5. BMC Configuration Settings 5�2�11 Chassis Identify Control The Chassis Identify Control page displays the BMC’s UID control information. Users can change the Identify LED behavior on this page. Click Chassis Identify Control from the menu bar. Select Off/On to control UID LED. - Page 85 SB401-MN User Manual Chapter 5. BMC Configuration Settings 5�2�13 Maintenance This Maintenance page displays the configuration settings for Backup Configuration, Firmware Image Location, Firmware Information, BIOS Information, Fimware Update, Preserve Configuration, Restore Configuration, Restore Configuration, and Restore Factory Defaults.
- Page 86 SB401-MN User Manual Chapter 5. BMC Configuration Settings Maintenance Procedure 1. Click Check All to backup the selected configuration items. The Backup Configuration page will appear Click Download Config Backup to save the backup file to the client system 2. Click OK to perform the backup action. The Backup file will be Configuration saved in the client system.
-
Page 87: Sign Out
SB401-MN User Manual Chapter 5. BMC Configuration Settings 5�2�14 Sign out To log out of the BMC: Method 1: Click Sign out from the menu bar. The Logout dialog box will pop out. Method 2: Click the root quick button on the top right corner of the screen. -
Page 88: Chapter 6� Technical Support
Chapter 6� Technical Support Taiwain, Global Headquarters South California, United States Address: No� 152, Section 4, Address: 21808 Garcia Lane Linghang N� Rd, Dayuan District, City of Industry, CA 91789, Taoyuan City 337, Taiwan United States Tel: +886-3-433-9188 Toll free: +7-4997019998 Fax: +886-3-287-1818 Tel: +1-909-895-8989 Fax: +1-909-895-8989#157...
