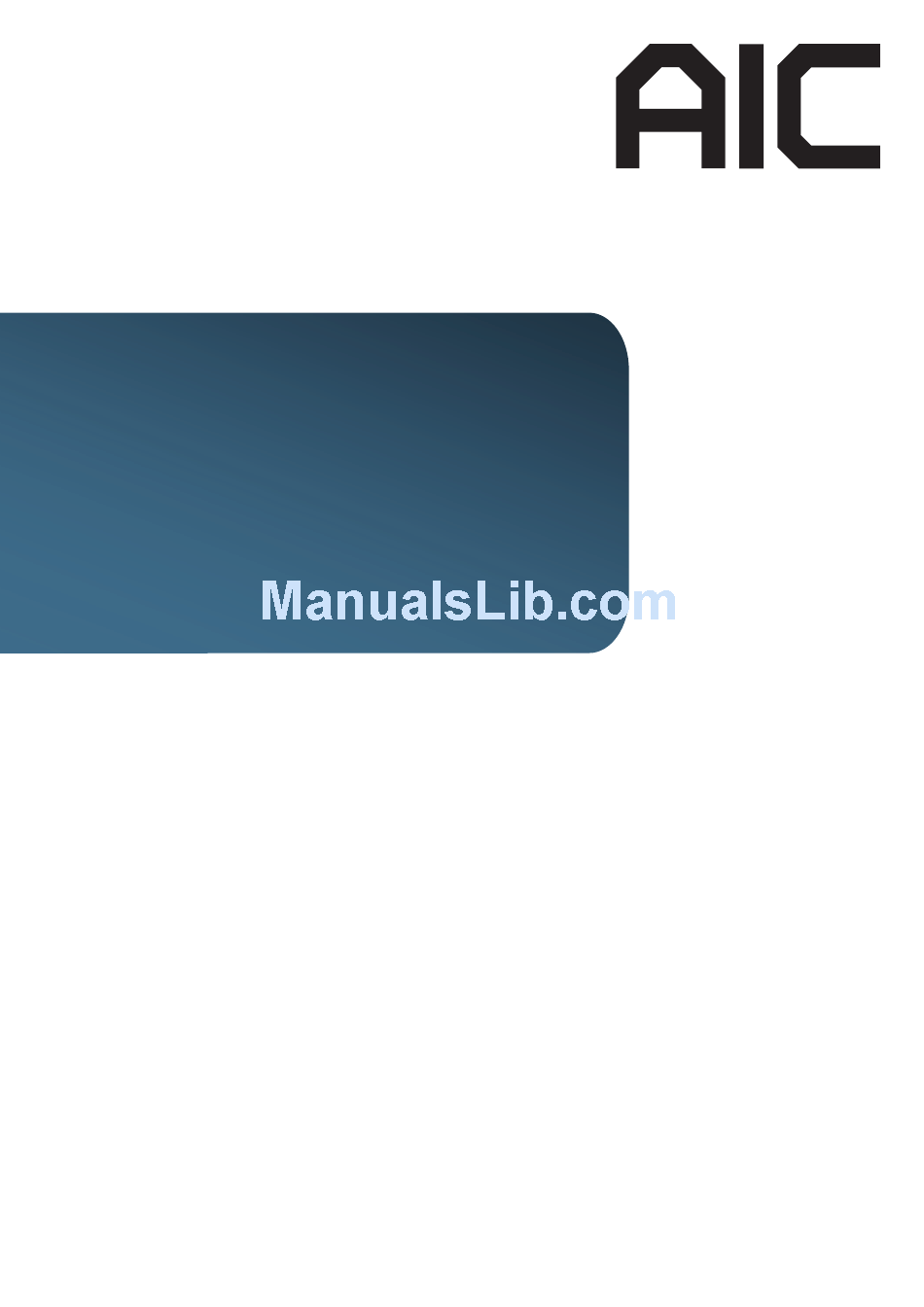

  • Page 1 SB302-LB Storage Server Barebone User's Manual UM_SB302-LB_v2.1_120716...

  • Page 2: Table Of Contents

    CONTENTS PREFACE................... i SAFETY INSTRUCTIONS..............ii Chapter 1. Prodcut Introduction ..........1 1.1 Box Content ..................1 ..................2 1.3 General Information................3 Chapter 2. Hardware Installation ..........6 2.1 Central Processing Unit (CPU) ............6 2.2 System Memory................14 2.3 Removing and Installing Chassis Top Cover .........18 2.4 Removing and Installing a Hard Disk Drive........19 2.5 Removing and Installing a Fan Module .........21 2.6 Removing and Installing the HDD backplane Module....23...
  • Page 3 5.4 Updating BMC Firmware..............66 Chapter 6. Hardware Instruction..........67 6.1 HARDWARE DESIGN SPECIFICATION ..........67 Chapter 7. Technical Support........... 74 contents...
  • Page 4 Copyright © 2015 AIC, Inc. All Rights Reserved. This document contains proprietary information about AIC products and is not to be disclosed or used except in accordance with applicable agreements.

  • Page 5: Preface

    AIC shall not be liable for technical or editorial errors or omissions contained herein. The information provided is provided "as is" without warranty of any kind. To the extent permitted by law, neither AIC or its affiliates, subcontractors or suppliers will be liable for incidental, special or consequential damages including downtime cost;...

  • Page 6: Safety Instructions

    SAFETY INSTRUCTIONS • Before getting started, please read the following important cautions: • All cautions and warnings on the equipment or in the manuals should be noted. • Most electronic components are sensitive to electrical static discharge. Therefore, be sure to ground yourself at all times when installing the internal components.
  • Page 7 product, voltage and current marked on the product’s electrical ratings label. The voltage and current rating of the cord should be greater than the voltage and current rating marked on the product. • If the equipment is not used for a long time, disconnect the equipment from mains to avoid being damaged by transient over-voltage.

  • Page 8: Chapter 1. Prodcut Introduction

    • Enclosure( Power supply, fan, 16 x 3.5'' HDD tray included) • 3.5’’ HDD Tray • Power cord • Screws kit x 1pcs • (Include console serial cable) • Slide rail x 1set PACKAGE CONTENT MAY VARY PER REGION. SB302-LB User's Manual...
  • Page 9 Chapter 1 Product Introduction...

  • Page 10: General Information

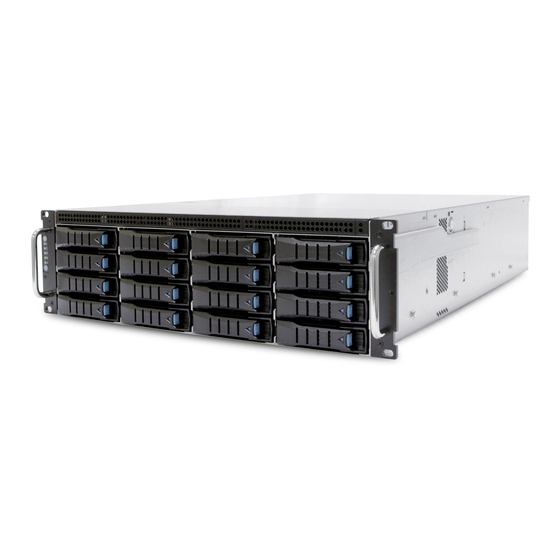

    Chapter 1 Product Introduction 1.3 General Information SB302-LB is a 3U Storage Server Barebone with Motherboard Libra/ 16 x 3.5”HDD hot swap Bays at front and single 12G expander on HDD Backplane which is a high performance Storage Server Barebone.
  • Page 11 Chapter 1 Product Introduction • Rear Panel SB302-LB User's Manual...
  • Page 12 Chapter 1 Product Introduction • Major Components SB302-LB User's Manual...

  • Page 13: Chapter 2. Hardware Installation

    • Proceed to screw 2 and loosen it by giving it two rotations and stop (see letter B). Similarly, loosen screws 3 and 4. Repeat steps A and B by giving each screw two rotations each time until all screws are loosened. • Lift the heatsink straight up (see letter C). SB302-LB User's Manual...

  • Page 14: Installing The Processor

    2.1.2.1 Unlatch the CPU Load Plate • Push the lever handle labeled “OPEN 1st” (see letter A) down and toward the CPU socket. Rotate the lever handle up. • Repeat the steps for the second lever handle (see letter B). SB302-LB User's Manual...
  • Page 15 2.1.2.2 Lift open the Load Plate • Rotate the right lever handle down until it releases the Load Plate (see letter A). • While holding down the lever handle, with your other hand, lift open the Load Plate (see letter B). SB302-LB User's Manual...
  • Page 16 The processor must align correctly with the socket opening before installation. DO NOT DROP the processor into the socket. NOTE : When possible, a CPU insertion tool should be used when installing the CPU. SB302-LB User's Manual...
  • Page 17 Make sure the load plate tab engages under the socket lever when fully closed. • b.Repeat the steps to latch the locking lever on the other side (see letter C). Latch the levers in the order as shown. SB302-LB User's Manual...
  • Page 18 (see letter D). Similarly, engage screws 3 and 4. • Repeat steps C and D by giving each screw two rotations each time until each screw is lightly tightened up to a maximum of 8 inch-lbs torque (see letter E). CAUTION: Do not over-tighten fasteners. SB302-LB User's Manual...

  • Page 19: Removing The Processor

    Remove the processor by carefully lifting it out of the socket, taking care NOT to drop the processor and not touching any pins inside the socket. Install the socket cover if a replacement processor is not going to be installed. SB302-LB User's Manual...
  • Page 20 Caution - Possible thermal damage. Avoid moving the heatsink after it has contacted the top of the CPU. Too much movement could disturb the layer of thermal compound, causing voids, and leading to ineffective heat dissipation and component damage. SB302-LB User's Manual...

  • Page 21: System Memory

    2.2 System Memory This server board supports up to sixteen DDR4 1333/1600/1866/2133 Registered ECC SDRAM(RDIMM) / Load-Reduced DIMM (LRDIMM). JDIMMG0 JDIMMG1 JDIMMH0 JDIMMA0 JDIMMA1 JDIMMH1 JDIMMB0 JDIMMB1 JCPU1 JCPU0 JDIMMF1 JDIMMF0 JDIMME1 JDIMMD1 JDIMME0 JDIMMD0 JDIMMC1 JDIMMC0 JBMC_DP SB302-LB User's Manual...
  • Page 22 JDIMMD1 JDIMMF0 JDIMMD0 JDIMME1 JDIMMC1 JDIMME0 JDIMMC0 JDIMMG0 JDIMMA0 JDIMMG1 JDIMMA1 JDIMMB0 JDIMMH0 JDIMMH1 JDIMMB1 CPU1 CPU0 JDIMM_G0 JDIMM_A0 8 DIMMs JDIMM_H0 JDIMM_B0 CPU0 CPU1 JDIMM_F0 JDIMM_D0 JDIMM_E0 JDIMM_C0 JDIMMF1 JDIMMD1 JDIMMF0 JDIMMD0 JDIMME1 JDIMMC1 JDIMME0 JDIMMC0 SB302-LB User's Manual...
  • Page 23 JDIMMA0 CPU1 CPU0 JDIMMG1 JDIMMA1 JDIMMH0 JDIMMB0 JDIMM_G0 JDIMM_A0 JDIMMH1 JDIMMB1 JDIMM_G1 JDIMM_A1 JDIMM_H0 JDIMM_B0 16 DIMMs JDIMM_H1 JDIMM_B1 CPU0 CPU1 JDIMM_F1 JDIMM_D1 JDIMM_F0 JDIMM_D0 JDIMM_E1 JDIMM_C1 JDIMMF1 JDIMMD1 JDIMMF0 JDIMMD0 JDIMM_E0 JDIMM_C0 JDIMME1 JDIMMC1 JDIMME0 JDIMMC0 SB302-LB User's Manual...
  • Page 24 2.2.2 DIMM Installation Procedure Unlock a DIMM socket by pressing the retaining clips outward. Insert module vertically and press down until it snaps into place. Note: DIMM notch and socket bump must align as shown. DIMM notch SB302-LB User's Manual...

  • Page 25: Removing And Installing Chassis Top Cover

    Chapter 2 ard are Installation 2.3 Removing and Installing Chassis Top Cover 1. Push the button on both sides. 2. Push the top cover backward and lift up the cover from the enclosure. SB302-LB User's Manual...

  • Page 26: Removing And Installing A Hard Disk Drive

    Directly place HDD into tool-less HDD tray untli it snaps. Please check if the screw holes on HDD match the dimples on HDD tray. HDD can also be screwed on HDD tray by fastening two screws as picture showed. SB302-LB User's Manual...
  • Page 27 2.4.2 Insert the drive tray into chassis HDD cage. Make sure the drive tray is correctly secured in place when its front edge aligns with the bay edge. Push the tray lever until it reaches the end and clicks. SB302-LB User's Manual...

  • Page 28: Removing And Installing A Fan Module

    Chapter 2 ard are Installation 2.5 Removing and Installing a Fan Module 2.5.1 Removing a fan module Grabbing and removing the fan module from the fan slot. SB302-LB User's Manual...
  • Page 29 Chapter 2 ard are Installation Pull the fan module up gently and taking out the fan module by removing rubbers out from the fan bar. 2.5.2 Installing a Fan Module inserted. SB302-LB User's Manual...

  • Page 30: Removing And Installing The Hdd Backplane Module

    • Unplugging all connectors & HDDs from HDD backplane. • Release the lock pin. 2.6.2 Installing a HDD backplane module • Slide the HDD backplane module into enclosures. • Secure the HDD backplane module onto the enclosures using the screws. SB302-LB User's Manual...
  • Page 31 • Lift up and remove the blackplane to the a little bit up from hook then can get out. 2.6.3 Installing a HDD backplane module(follow the reverse order) • Align the backplane with the hooks, and insert it into the enclosure • Lock the backplane. Follow the reverse order. SB302-LB User's Manual...

  • Page 32: Removing And Installing A Psu Module

    • Pushing the latch then hold the tray handle tab. Then pull the PSU module gently until it slides out of the enclosure. 2.7.2 Installing a PSU Module • Slide in PSU module. • Make sure the latch on the module is fully hooked onto the PSU housing. SB302-LB User's Manual...

  • Page 33: Removing And Installing A Pcie Card

    • Take the card and check for downside printedbord connectors. keep that connector sitd downward and either side in your hand. chek the below position: 1. Location to external connector side of card. 3. PCI Slot to put card printedbord connectors. SB302-LB User's Manual...
  • Page 34 Chapter 2 ard are Installation 4. Location of screws. • Insert the card gently rolling in the side "right" between the edge of the motherboard and the wall of the Storage Server Barbone. • screws in Storage Server Barbone. SB302-LB User's Manual...
  • Page 35 Chapter 2 ard are Installation • Check your earthing is working properly . • Turn on your Storage Server Barbone, system detects new hardware. • To remove PCIe Card, follow the reverse order. SB302-LB User's Manual...

  • Page 36: Removing And Installing A Rj45 Module

    Turn off your Storage Server Barebone and disconnect the power supply. 2.9.1 Installing a RJ45 Module • Remove PCI Bracket Slot Cover. • Take the RJ45 module insert onto the chassis. • Be sure the RJ45 module insert to chassis properly. SB302-LB User's Manual...
  • Page 37 Chapter 3 Mother oard Settin • Type module. 2. Align the module to the top and botton of the I/O shield for correct direction. 3. Secure the RJ45 module on the I/O shield using the screws. SB302-LB User's Manual...
  • Page 38 Chapter 3 Mother oard Settin 2.9.2 Insert one end of the cable into port LAN3 of the barebone. Insert the other end of the cable into the corresponding port LAN4 on site of the barebone. 1. Type 2. Type SB302-LB User's Manual...

  • Page 39: Tool-Less Blade Slide Installation Instruction

    Chapter 3 Mother oard Settin 2.10 Tool-less Blade Slide Installation Instruction 2.10.1 Release and detach the inner rail from the slide. PUSH SB302-LB User's Manual...
  • Page 40 Chapter 3 Mother oard Settin 2.10.2 Attach inner rail to the system. Click! SB302-LB User's Manual...
  • Page 41 Chapter 3 Mother oard Settin 2.10.3 Attach outer rail to the rack. Click! Click! PUSH SB302-LB User's Manual...
  • Page 42 Chapter 3 Mother oard Settin CAUTION：Verify ball bearing retainer is locked forward. 2.10.4 Pull out the intermediate member until locked out. SB302-LB User's Manual...
  • Page 43 Chapter 3 Mother oard Settin 2.10.5 Slide release tab and push system into rack. SB302-LB User's Manual...

  • Page 44: Chapter 3. Motherboard Settings

    Chapter 3 Mother oard Settin Chapter 3. Motherboard Settings This section describes the jumpers, internal connectors, and internal LEDs setting on Libra motherboard. Motherboard layout and important jumper settings are listed as below. 3.1 Motherboard block diagram SB302-LB User's Manual...

  • Page 45: Motherboard Block Diagram

    PCIe slot3 JBAT JSGPIO SATA2 SATA1 JSSGPIO JCMOS JPCH_GPIO SATA4 SATA3 JNTB PCIe slot2 JLPC_DP SATA5 SATA6 I210 I217 JSPKR1 SATA8 SATA7 PCIe slot1 JUSB_INT JNGFF JBMC_RST JBMC_DIS JBMC_DP JFRNT_SSI JLAN2 JLAN1 JLAN2 JCOM4 JLCM JINTRUDERJ BMC_I2C1 SB302-LB User's Manual...

  • Page 46: Motherboard Content List

    Chapter 3 Mother oard Settin 3.3 Motherboard Content List SB302-LB User's Manual...

  • Page 47: Internal Connectors/Jumpers

    JDIMMD0 JDIMMC1 JDIMMC0 JPG_LOOK1 JSPI JBUZZER JDOM_PWR JPWR3 JBMC_GPIO JTPM JSGPIO JSSGPIO JCMOS JPCH_GPIO JNTB JLPC_DP JUSB_INT JSPKR1 JNGFF JUSB_INT JFRNT_SSI JBMC_RST JBMC_DIS JBMC_DP JFRNT_SSI JLAN1 JLAN2 JCOM4 JLCM JINTRUDER JBMC_I2C1 JPMBUS PWM4 FAN7_TACH +12V HM_TD7- HM_TD7+ SB302-LB User's Manual...
  • Page 48 Chapter 3 Mother oard Settin JPWR3 JDOM_PWR JPG_LOOK1 JUSB_INT SB302-LB User's Manual...
  • Page 49 JBAT JSGPIO SATA2 SATA1 JSSGPIO JCMOS JPCH_GPIO SATA4 SATA3 JNTB JLPC_DP SATA6 SATA5 JSPKR1 SATA8 SATA7 JNGFF JUSB_INT JBMC_RST JBMC_DIS JBMC_DP JFRNT_SSI JLAN1 JLAN2 JCOM4 JLCM JINTRUDER JBMC_I2C1 JTPM JSGPIO JSSGPIO JCMOS JNTB JSPKR1 JLAN1 JLAN2 SB302-LB User's Manual JCOM4...
  • Page 50 Chapter 3 Mother oard Settin JTPM JSGPIO JSSGPIO +3.3V PCH_SPI_MISO PCH_SPI_MOSI PCH_SPI_CLK PCH_GPIO23 PCH_SPI_CS1_N PCH_LDRQ0_N PCH_SPI_CS2_N RST_PLTRST_N JSPKR1 JLAN2 JLAN1 JLAN4 SB302-LB User's Manual...
  • Page 51 JDOM_PWR JPWR3 JBMC_GPIO JTPM JBAT JSGPIO SATA2 SATA1 JSSGPIO JCMOS JPCH_GPIO SATA4 SATA3 JNTB JLPC_DP SATA6 SATA5 JSPKR1 SATA8 SATA7 JNGFF JUSB_INT JBMC_RST JBMC_DIS JBMC_DP JFRNT_SSI JLAN1 JLAN2 JCOM4 JLCM JINTRUDER JBMC_I2C1 JPCH_GPIO JLPC_DP JNGFF JBMC_DP JLCM SB302-LB User's Manual...
  • Page 52 Chapter 3 Mother oard Settin JLPC_DP PCH_GPIO21 JPCH_GPIO PCH_GPIO27 JBMC_DP JLCM SB302-LB User's Manual...
  • Page 53 Chapter 3 Mother oard Settin SB302-LB User's Manual...
  • Page 54 Chapter 3 Mother oard Settin JNGFF SB302-LB User's Manual...
  • Page 55 JBMC_I2C10 JBUZZER JPWR3 JDOM_PWR PCIe slot4 LSISA JBMC_GPIO JTPM S3008 PCIe slot3 JSGPIO JSSGPIO JCMOS JPCH_GPIO JNTB PCIe slot2 JLPC_DP I210 I217 JSPKR1 PCIe slot1 JUSB_INT JNGFF JBMC_RST JBMC_DIS JBMC_DP JINTRUDER JFRNT_SSI JLAN1 JLAN2 JCOM4 JLCM JBMC_I2C1 SB302-LB User's Manual...
  • Page 56 Chapter 3 Mother oard Settin JPWR1 JVGA_INT JPMBUS +12V DACROA DACGOA +12V DDC_DATAO +12V DACBOA AHSYNCO +12V DVO_5V AVSYNCO DDC_CLKO JBMC_I2C10 JBUZZER JBMC_GPIO BMC BUZZER- I2C10SDA I2C10SCL JBMC_I2C1 SB302-LB User's Manual...

  • Page 57: Leds

    Chapter 3 Mother oard Settin 3.5 LEDs 3.5.1 Front Panel LED SB302-LB User's Manual...
  • Page 58 Chapter 3 Mother oard Settin 3.5.2 Rear Panel LED SB302-LB User's Manual...
  • Page 59 Chapter 3 Mother oard Settin 3.5.3 Internal LEDs LED4 LED1 LED3 LED2 SB302-LB User's Manual...
  • Page 60 Press ESC to run the setup procedure. There will be a message “Entering SETUP” displayed on the diagnostics screen. Caution: For the official released version, the last digit of the BIOS Version must end in an "0." SB302-LB User's Manual...
  • Page 61 Identify the BIOS Version Load Optimal Default setting Save the setting and exit the BIOS setup utility. SB302-LB User's Manual...

  • Page 62: Updating Bios

    4.1 Updating BIOS Important Notes: To identify the current BIOS version, please check out on BIOS setup. SB302-LB User's Manual...
  • Page 63 Update BIOS by INSYDE H2OFFT-D utility under DOS environment If you need to update Flash in the DOS environment, please use Execute to update Flash in the DOS environment. Reboot system. SB302-LB User's Manual...

  • Page 64: Method 1 (Use The Bios Setup)

    Insert Ethernet LAN cable into the BMC LAN port. There are two methods to setup BMC IP: BMC management port 5.1 Method 1 (Use the BIOS setup) • BIOS SETUP Server Mgmt BMC network configuration Configuration Address source Static SB302-LB User's Manual...
  • Page 65 2. Input IP address. Set static IP. SB302-LB User's Manual...
  • Page 66 3. Input subnet mask address. SB302-LB User's Manual...

  • Page 67: Method 2 (Use A Dos Tool - Syscheck)

    5.2 Method 2 (Use a Dos tool - Syscheck) 1. Type : sc –lanset 2. Modify IP setting Note: type 1 for selecting static IP mode or type 2 for selecting DHCP mode. 3. Input IP address SB302-LB User's Manual...
  • Page 68 4. Input submask address. Below IP address is an example using a default IP setting. User is allowed to change the IP address for realistic use. Note: Type sc.exe –langet command to obtain BMC IP and MAC address. SB302-LB User's Manual...

  • Page 69: Connect To Bmc

    Password: admin Note: The default user name and password are in lower-case characters. Note: Users who login with the admin user name and password will have full administrative power. The admin password can be changed after login. SB302-LB User's Manual...
  • Page 70 4. Server Health - Sensor Readings: SB302-LB User's Manual...
  • Page 71 Refer to AIC BMC User Guide for more information on AIC BMC. Mouse Mode setting: For Windows OS environment, set mode to absolute. For Linux OS environment, set mode to relative SB302-LB User's Manual...
  • Page 72 6. Remote Control: Environmental setting: Press “ALT+C” for local and remote OS mouse control switching. SB302-LB User's Manual...

  • Page 73: Updating Bmc Firmware

    XXXXXZYY]; XXXXX: project name ; Example: A:>cd SB301C01 A:\ SB301C01>a.bat from the FAE or AIC website. system. Notes: 1. DO NOT USE EMM386 IN DOS ENVIRONMENT WHEN UPDATING FIRMWARE OR YOU WILL GET A FAIL. 2. IN SOME CRITICAL CONDITION, AFTER UPDATING BMC...

  • Page 74: Chapter 6. Hardware Instruction

    Chapter ard are Instruction Chapter 6. Hardware Instruction This chapter provides detailed instruction guide on hardware instruction 6.1 HARDWARE DESIGN SPECIFICATION 6.1.1 Placement PCBA Placement SB302-LB User's Manual...
  • Page 75 6.1.2 Connector Location Location JFAN3 JFAN3 JI2C3 JI2C0 JEXP2 JFAN1 JFAN1 JEXP_UART JEXP_UART JFAN4 JFAN4 JFAN2 JFAN2 JI2C4 JI2C4 JMCU_DBG JMCU_DBG JPMBUS JPMBUS SASHD3 SASHD3 JMCU_UART JMCU_UART JPWR1 JPWR1 SASHD2 SASHD2 JFRONT JFRONT JPWR2 JPWR2 SASHD1 SASHD1 SB302-LB User's Manual...
  • Page 76 Chapter ard are Instruction 6.1.3 Connectors Power Connector – JPWR1 Description Description +12V +12V +3.3V MUTE_L +5VSTBY PSU_N1 PS_ON_L Power Connector – JPWR2 Description Description +12V +12V +12V +12V PMBUS Connector – JPMBUS Description PMBUS_CLOCK PMBUS_DATA SB302-LB User's Manual...
  • Page 77 I2C Connector – JI2C0, JI2C3, JI2C4 Description I2C_CLOCK I2C_DATA FAN Connector – JFAN1, JFAN2, JFAN3, JFAN4 Description I2C_CLOCK I2C_DATA Console for Expander – JEXP_UART Description Description DEBUG_RXD SMART_RXD +12V DEBUG_TXD SMART_TXD Remote Power Control – JMCU_UART Description Description DOWN_RXD UP_RXD DOWN_TXD UP_TXD SB302-LB User's Manual...
  • Page 78 For External LED(-) LED Cathode • FAN Fail LED Description Remark For External LED(+) LED Anode For External LED(-) LED Cathode • Power Fault LED Description Remark For External LED(+) LED Anode For External LED(-) LED Cathode SB302-LB User's Manual...
  • Page 79 MUTE Input(-) Active Low • Power/ID LED Description Remark For External LED(+) LED Anode For External LED(-) LED Cathode • Power SW Description Remark Power SW Input(-) Active Low • PMBUS Support Description Remark PMBUS_Disable_N Active Low SB302-LB User's Manual...
  • Page 80 Activity detected Link down Expander alive, 0.833Hz Expander Blink (LED5) Blue (Blinking) (12 seconds per cycle) Expander Heart Bit Blue (Blinking) Expander FW running (LED4) Yellow (On) MCU alive MCU Status (LED15) Yellow (Off) Boot loader mode SB302-LB User's Manual...
  • Page 81 Chapter ard are Instruction 6.1.5 Jumpers JMCU_RST JMCU_RST JMD_SEL JMD_SEL Open Normal, default JMCU_RST Close Reset MCU Open Normal, default JMD_SEL Close Boot loader mode SB302-LB User's Manual...
  • Page 82 Chapter ard are Instruction 6.1.6 Drive Slot Map SB302-LB User's Manual...

  • Page 83: Chapter 7. Technical Support

    Chapter 1 Product Introduction Chapter 1 Product Introduction Chapter 7. Technical Support www.aicipc.com • TAIWAN Tel: +886 3 433 9188 Fax: +886 3 287 1818 Email : sales@aicipc.com.tw • CHINA Tel: +86.21.54961421, +86.21.54961422 Fax: Extension: 608 Email Technical Support: support@aicipc.com •...
