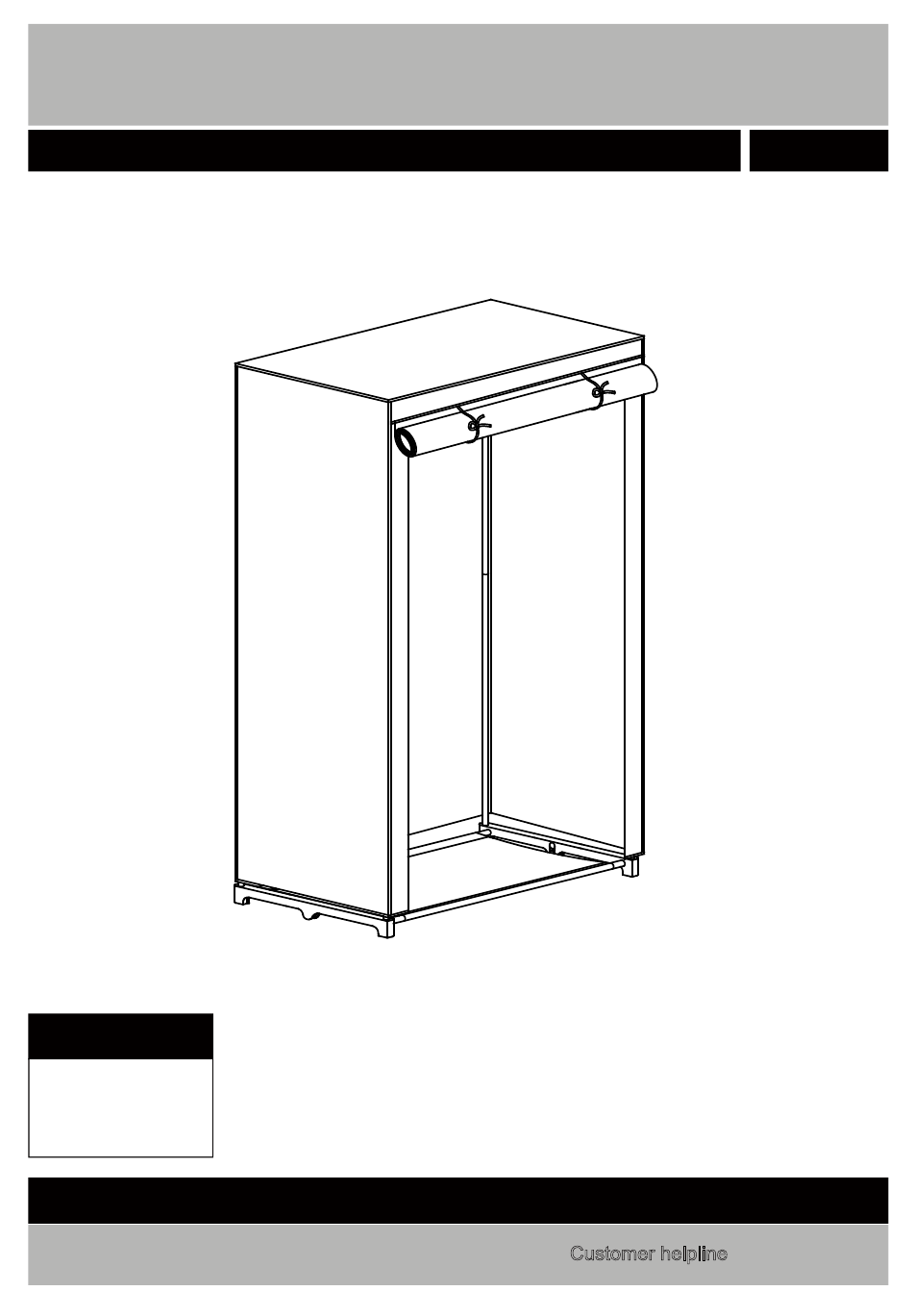

Single Covered Clothes Rail Chintz Assembly lnstructions - Please keep for future reference 417/7317 Dimensions Width - 75cm Depth - 50cm Height - 160cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts,call the Customer helpline:...
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • Assemble the unit as close to its Only use hand screwdrivers. components and tools listed on final position (in the same room) •...
Page 3
1.Corner x 4 2. Thin rods x 4 (74.5cm) 3. Hanging rod x 1 (74.5cm) 4. Rod x 4 (79.5cm) Taper ended 5. Rod x 4 (79.5cm) 6. Cover x 1 7. Shelf x 1...
Page 4
Assembly Instructions Step 1 Assemble the top panel and bottom panel. Note: It would be useful to ask some one to help you at this stage. Bottom panel a: Insert thin rods 2 into the fabric shelf 7 . b: Attach thin rods 2 and the fabric shelf 7 to the corner 1 as shown.
Page 5
Assembly Instructions Step 2 Note: It would be useful to ask someone to help you at this stage. Fitting the panel Position the top assembly onto the bottom assembly. Fitting the Cover b: Fitting the cover 6 into the bottom panel. C: Evenly slide the cover down to the base.
Page 6
Assembly Instructions Step 5 Fixing to wall wall It is recommended that the wardrobe is fixed to a wall. Note: Top panel The correct type of fixing must be used for your wall,seek professional advice if doubt. Mark the fixing hole on the wall and remove the wardrobe.
