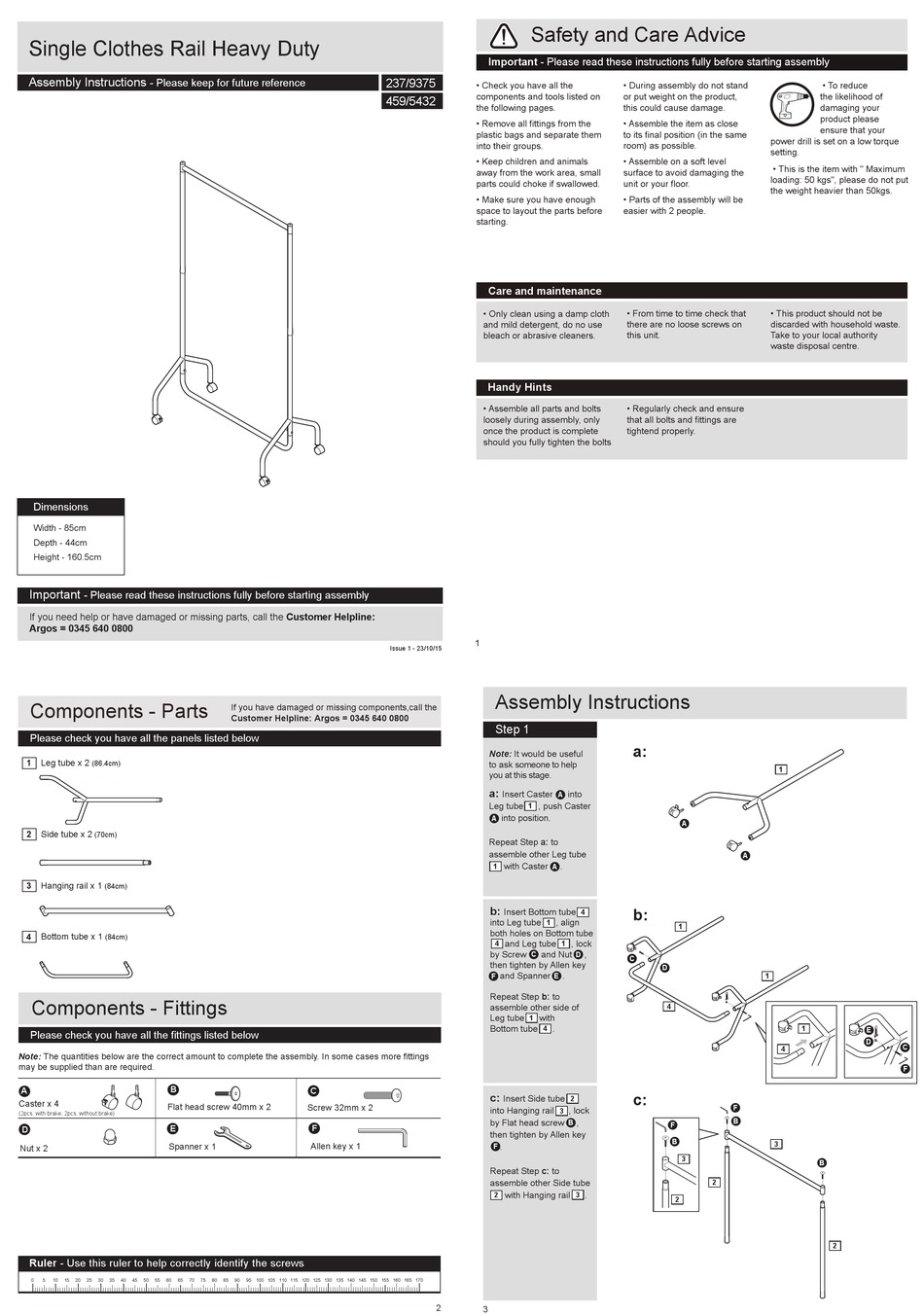

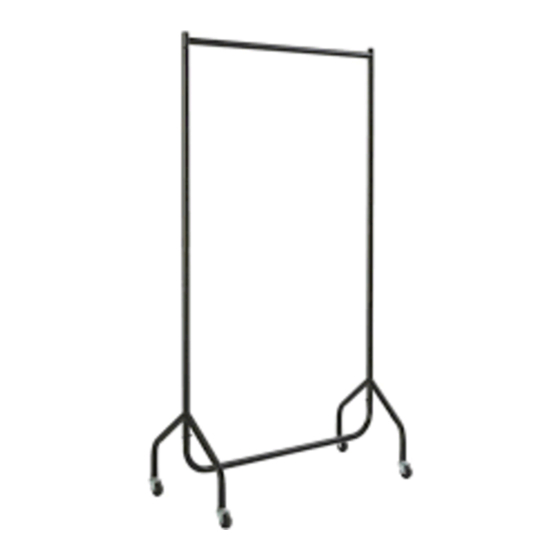

Single Clothes Rail Heavy Duty
Assembly Instructions
- Please keep for future reference
Dimensions
Width - 85cm
Depth - 44cm
Height - 160.5cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
Components - Parts
Please check you have all the panels listed below
1
Leg tube x 2
(86.4cm)
2
Side tube x 2
(70cm)
3
Hanging rail x 1
(84cm)
4
Bottom tube x 1
(84cm)
Components - Fittings
Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings
may be supplied than are required.
B
A
Caster x 4
Flat head screw 40mm x 2
(2pcs. with brake, 2pcs. without brake)
E
D
Spanner x 1
Nut x 2
Ruler - Use this ruler to help correctly identify the screws
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
If you have damaged or missing components,call the
Customer Helpline: Argos = 0345 640 0800
Screw 32mm x 2
F
Allen key x 1
75
80
85
90
95 100
105
110 115 120 125 130 135 140 145 150 155 160 165 170
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
237/9375
• Check you have all the
components and tools listed on
459/5432
the following pages.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
Handy Hints
• Assemble all parts and bolts
loosely during assembly, only
once the product is complete
should you fully tighten the bolts
1
Issue 1 - 23/10/15
Assembly Instructions
Step 1
Note: It would be useful
to ask someone to help
you at this stage.
a:
Insert Caster
A A
Leg tube
, push Caster
1
into position.
A A
Repeat Step a: to
assemble other Leg tube
with Caster
.
1
A A
b:
Insert Bottom tube
into Leg tube
, align
1
both holes on Bottom tube
and Leg tube
4
by Screw
and Nut
A C
then tighten by Allen key
and Spanner
A F
A E
Repeat Step b: to
assemble other side of
Leg tube
with
1
Bottom tube
.
4
c:
Insert Side tube
into Hanging rail
3
by Flat head screw
then tighten by Allen key
A F
.
Repeat Step c: to
assemble other Side tube
with Hanging rail
2 2
2
3
• During assembly do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close
to its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• From time to time check that
there are no loose screws on
this unit. 
• Regularly check and ensure
that all bolts and fittings are
tightend properly.
a:
into
A A
b:
4
1
, lock
1
,
A D
A C
A D
.
4
c:
2 2
A F
, lock
A B
,
A B
A F
A B
3
2 2
.
3
2 2
• To reduce
the likelihood of
damaging your
product please
ensure that your
power drill is set on a low torque
setting.
• This is the item with " Maximum
loading: 50 kgs", please do not put
the weight heavier than 50kgs.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre. 
1
A A
1
1
A E
A D
A C
4
A F
3
A B
2 2
