Summary of Contents for Argos Home Tongue and Groove 326/3002

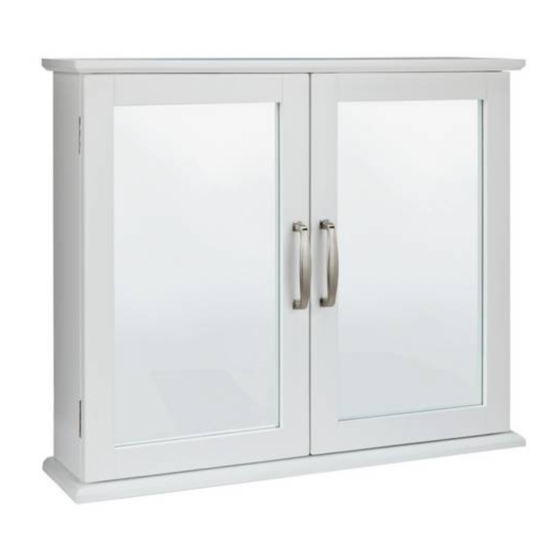

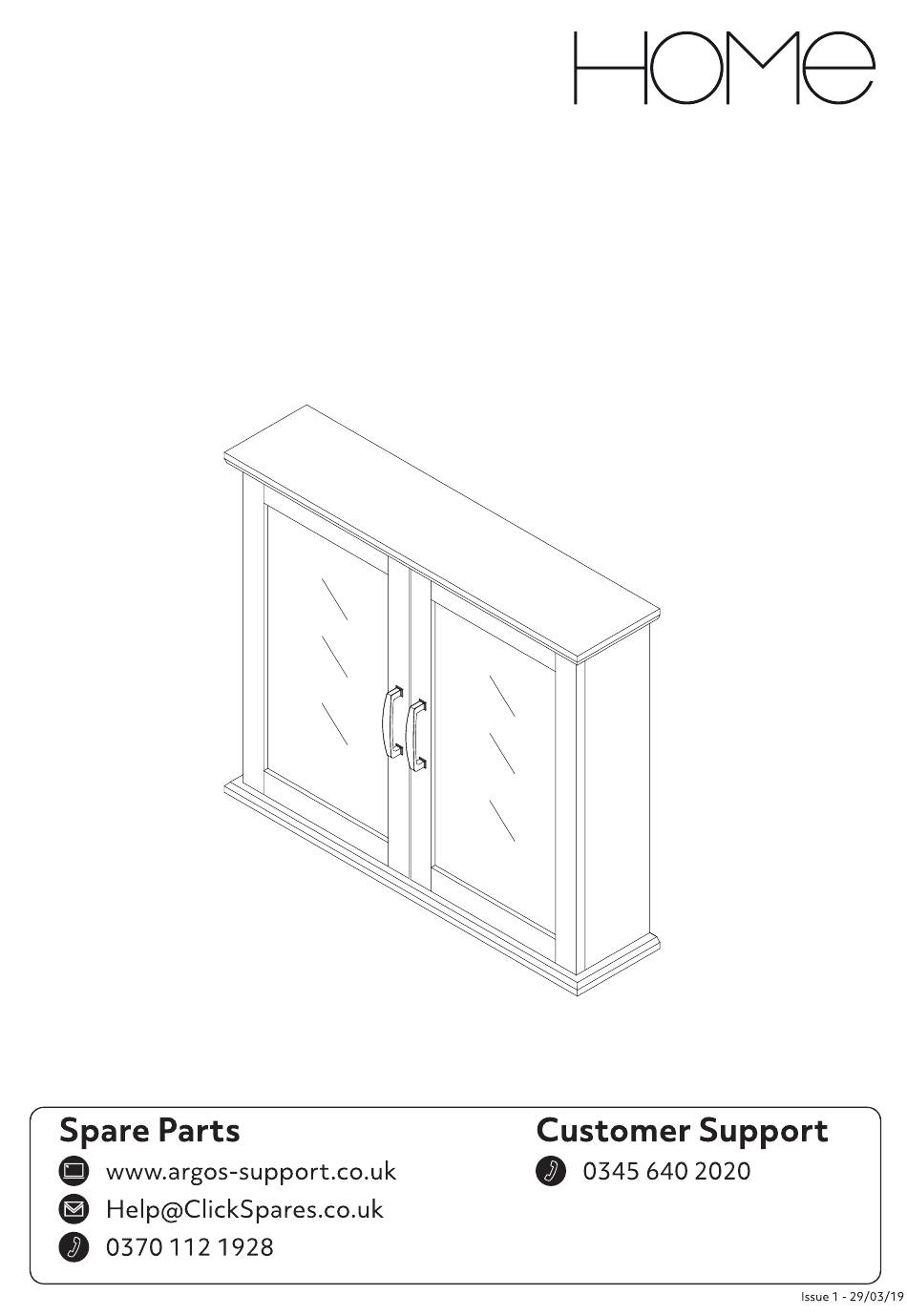

- Page 1 Tongue and Groove Wall Cabinet...
- Page 2 Safety and Care Advice Product Details White 326/3002 Grey 470/2146 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY. • Keep children and animals away • Assemble the item as close to • We do not from the work area, small parts recommend the could choke if swallowed.
- Page 3 35mm Male camlock x 6 Female camlock x 6 30mm dowel x 16 Magnetic Catch x 1 Catch Plate x 2 14mm Screw x 2 Hinge x 4 10mm Screw x 18 Handles x 2 14mm Screw x 4 14mm Screw x 14 35mm Screw x 2 Wall plug x 2...
-
Page 4: Tools Required
Tools required Phillips screwdriver Ruler/tape (small & medium) measure Mallet Eye protection (when using a hammer or glue) Power drill... - Page 5 Top panel x 1 Bottom panel x 1 Left Side Panel x 1 (60(w)cmx14(d)cm) (60(w)cmx14(d)cm) (47(w)cmx11(d)cm) Right Side Panel x 1 Shelf x 1 Cross Bar x 1 (47(w)cmx11(d)cm) (54(w)cmx10.5(d)cm) (54(w)cmx4(d)cm) Left Door x 1 Right Door x 1 Back Panel x 1 (46.4(w)cmx28.3(d)cm) (46.4(w)cmx28.3(d)cm) (49(w)cmx56(d)cm)
- Page 6 35mm Male camlock x 6 Female camlock x 6 30mm dowel x 16 Magnetic Catch x 1 Catch Plate x 2 14mm Screw x 2 Handles x 2 Hinge x 4 10mm Screw x 18 14mm Screw x 4 14mm Screw x 14 35mm Screw x 2 Wall plug x 2 35mm Male camlock x 6...
- Page 7 Female camlock x 2 30mm dowel x 8 Female camlock x 4 30mm dowel x 8...
- Page 8 Hinge x 4 10mm Screw x 18 Catch Plate x 2 Handles x 2 14mm Screw x 4...
- Page 9 40mm Screw x 2 Wall plug x 2...
