Summary of Contents for Barco RETROGRAPHICS 808s

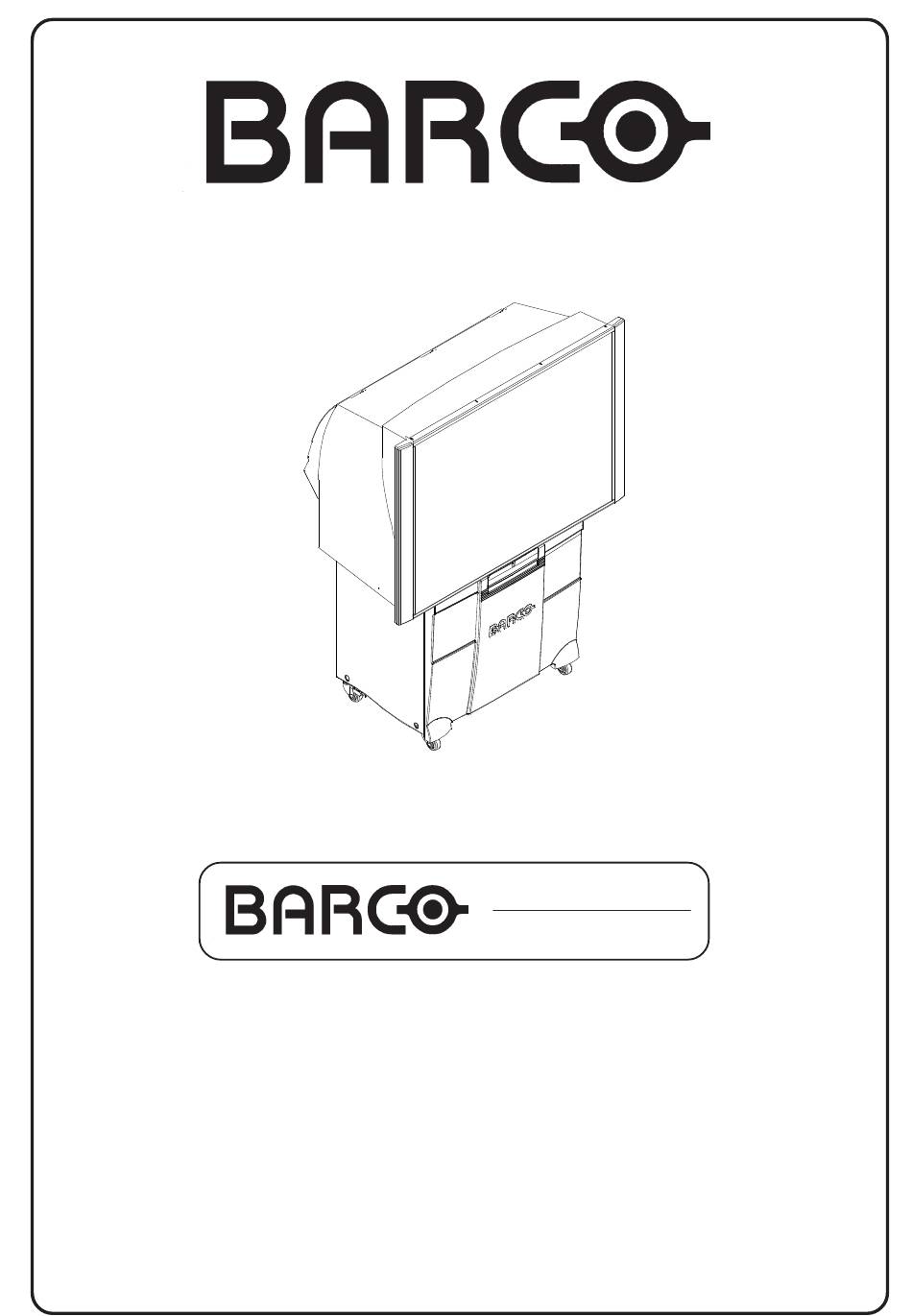

- Page 1 BARCO PROJECTION SYSTEMS RETROGRAPHICS 808s R9002041 R9002048 INSTALLATION MANUAL Date : Revision : Art. No. : 100298 R5976002...
- Page 2 All rights reserved. Trademarks are the rights of their respective owners. Printed in Belgium BARCO n.v./Projection Systems Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visite Barco at the web : http://www.barco.com Printed in Belgium...
-
Page 3: Table Of Contents
Table of Contents Table of contents ..................................... i-1 Safety Instructions ....................................1-1 Unpacking and Projector Dimensions ..............................2-1 Installation Set-up ....................................3-1 Projector Set-up ...................................... 4-1 AC Power Connection .................................... 5-1 Source Connection ....................................6-1 5976002 RETROGRAPHICS 808s 100299... -
Page 4: Safety Instructions
INSTALLATION INSTRUCTIONS Before operating this equipment please read this manual thoroughly, and retain it for future reference. Installation and preliminary adjustments should be performed by qualified BARCO personnel or by author- ized BARCO service dealers. OWNER’S RECORD On safety PART NUMBER : SER. - Page 5 The exclusion zone must be not less than 10 cm (4”) for BARCO Retro Projectors and not less than 40 cm (16”) for all other BARCO projectors. Do not cover the projector with any material while the projector is in operation.
-
Page 6: Unpacking And Projector Dimensions
Contents of the shipping boxes : 1 RETROGRAPHICS 808s, projector cabinet and mirror cabinet. 1 Remote Control Unit plus 1 battery 9V 1 power cord with outlet plug type CEE7 or ANSI 73.11... - Page 7 Unpacking and dimensions Projector dimensions (in mm) 5976002 RETROGRAPHICS 808s 100299...
-
Page 8: Installation Set-Up
Installation set-up INSTALLATION SET-UP Cabinet Assembly Fixation holes Centering holes... - Page 9 Installation set-up Mounting the side profiles Unfolding the mirror house.
- Page 10 Installation set-up Closing the mirror house.
-
Page 11: Projector Set-Up
PROJECTOR ADDRE SS StdBY (sum) CODE SPEED MAIN P OWER PROCE SSOR CYC I 2 C SHORTED BLOCK MATCH RESERVED ERROR 1200 POWER UP MODE 2400 PASSWORD MODE BAUD RATE CODE RCVDS 4800 (sum) 9600 PAUSE 5976002 RETROGRAPHICS 808s 100299... - Page 12 The projector's address may be set to any value between 0 and 255. When the address is set, the projector can be controlled now by : RCU for addresses between 0 and 9; IBM PC (or compatible) or Apple MAC for addresses between 0 and 255. 5976002 RETROGRAPHICS 808s 100299...
- Page 13 Stand-By mode When the power switch on the rear of the projector is pressed, the projector starts up in the stand-by mode. The stand-by key on the RCU is used to turn the projector ON and OFF. 5976002 RETROGRAPHICS 808s 100299...
- Page 14 This position of the DIP switch is useful for qualified service technicians as no password is needed to enter the adjustment mode. Position of DIP Switch No.5 : OFF ON : password mode enabled OFF : password mode disabled 5976002 RETROGRAPHICS 808s 100299...
-
Page 15: Ac Power Connection
Power cord with an ANSI 73.11 plug The wires of the delivered mains lead (power cord) are colored in accordance with the following code : Yellow and Green : ground (earth) White : neutral Black : live 5976002 RETROGRAPHICS 808s 100299... - Page 16 AC Input power (mains) voltage adaptation Attention ! The RETROGRAPHICS 808s - R9002041 leaves the factory to operate on a mains (power) input of 230 Vac . The RETROGRAPHICS 808s - R9002048 leaves the factory to operate on a mains (power) input of 120 Vac .
- Page 17 * The AC power input board is located on the left handside of the projector. * Loosen the retaining screws of the AC power input board and pull out this board. * Pull out the 'power selector plug' and re-insert it as illustrated in the 5976002 RETROGRAPHICS 808s 100299...
- Page 18 "CRT run in cycle" option is switched OFF : a full white image (projector warm up) or immediately image display. The way of starting up can be set in the service mode. 5976002 RETROGRAPHICS 808s 100299...
- Page 19 If the <EXIT> key is pressed, the warm up period will be skipped and the projector is immediately ready for use. Warning : skipping this warm up procedure can reduce the initial picture quality of the projected image. 5976002 RETROGRAPHICS 808s 100299...
-
Page 20: Source Connection
Component video with Tri-level sync Connecting a Composite Video source to port 1. ST!"!ÃDI ST!"!ÃPVU ,5 S@HPU@ PRO JECTOR MODE PORT 1 PORT 4/5 PORT 3 COMM. PORT POW ER / MAINS Video input selection : 5976002 RETROGRAPHICS 808s 100299... - Page 21 ORBITING CONTR. MODULATION PICTURE TUNING EXIT SOFT EDGE ADJUST Select with COLOR BALANCE then <ENTER> SYNC : FAST <EXIT> to return. PORT2 : S-VIDEO LINE DOUBLER : ON Select with <ENTER> to accept <EXIT> to return. 5976002 RETROGRAPHICS 808s 100299...
- Page 22 S2 Blue in Green (ON=yes) 75 W Termination resistors Ω Ω Ω R101 Vsync Hsync (Blue) S1 Force Negative Sync Procedure to remove the line termination resistors : (Green) (ON=yes) (Red) Ω Top view Side view Side view Top view 5976002 RETROGRAPHICS 808s 100299...
- Page 23 RGB input selection : PROJECTOR MODE PORT 4/ 5 PORT 3 COMM. PORT POW ER / MAINS PORT 1 (RG3sB : R, G, B signals with automatic Tri-level sync detection) Connecting a Component Video source to 5976002 RETROGRAPHICS 808s 100299...
- Page 24 4/5. (Opion) To select the component video input : ST!"!ÃDI ST!"!ÃPVU S S@HPU@ PORT 4/5 PROJECTOR MODE PORT 1 PORT 3 COMM. PORT POW ER / MAINS Connecting external loudspeakers to the 5976002 RETROGRAPHICS 808s 100299...
- Page 25 Source Connections retroprojector. Connecting speakers wires. 10 mm Speaker selection switch PERIPHERAL EQUIPMENT Connecting a RCVDS 05 switcher to the retroprojector. Connecting a VS05 switcher to the retroprojector. 5976002 RETROGRAPHICS 808s 100299...
- Page 26 'MODE : ON' ENTER MASTER ORBITING 'MODE : OFF' ENTER CHANGE TO SLAVE MODE : ON SPEED : FAST ADJUST DEVIATION SELECT WITH ENTER THEN <ENTERN> DEVIATION ADJUST : EXIT VERTICAL WITH HORIZONTAL WITH <EXIT> to return. 5976002 RETROGRAPHICS 808s 100299...
- Page 27 HORIZONTAL WITH <EXIT> to return. CPSDaPIU6G PS7DUÃ6HQG Adju st horizontal deviatio n by pushing the control disk to the left or to the right W@SUD86G PS7DUÃ6HQG Adjust vertical deviation by pushing the control disk up or down 5976002 RETROGRAPHICS 808s 100299...
- Page 28 <EXIT> to return. CPSDaPIU6G PS7DUÃ6HQG Adjust ho rizontal de viation by push ing the control dis k to the left or to the right W@SUD86G PS7DUÃ6HQG Adjust vertical deviation by pushing the control disk up or down 5976002 RETROGRAPHICS 808s 100299...
- Page 29 Green Blue Green LEDs After finishing the adjustments : Press the ENTER to continue with the "SERVICE" menu. Press the EXIT to return to the "SERVICE" menu. Press the ADJUST to return to Operational mode. 5976002 RETROGRAPHICS 808s 100298...
- Page 30 (0-99) will be displayed to visualise the magnitude of the correction. - Press ENTER to return to the "Gamma Corrections" menu. Adjust with arrow key BLUE GAMMA SLOPE BLUE GAMMA BREAKPOINT 5976002 RETROGRAPHICS 808s 100298...
- Page 31 Adjust slope with é or ê Breakpoint with ç or è R & B MIDLIGHTS Adjust red with é or ê blue with ç or è FACTORY PRESET Select with é or ê then <ENTER>; <EXIT> to return. 5976002 RETROGRAPHICS 808s 100299...
- Page 32 Form Approved MATERIAL SAFETY DATA SHEET Bureau Budget No. 45-R0338 MANUFACTURER'S NAME AND FSCM (Federal Supply Code for Manufacturer's) EMERGENCY PHONE NO. BARCO N.V. 32-56-368211 ADDRESS (Number, Street, City, State, and ZIP Code) Noordlaan 5 B-8520 KUURNE CHEMICAL NAME AND SYNONYMS TRADE NAME AND SYNONYMS Ethylenglycol &...
- Page 33 TRESHOLD LIMIT VALUE 100ppm EFFECTS OF OVEREXPOSURE EMERGENCY AND FIRST AID PROCEDURES CONDITIONS TO AVOID STABILITY UNSTABLE STABLE INCOMPATABILITY (Materials to avoid) HAZARDOUS DECOMPOSITION PRODUCTS CONDITIONS TO AVOID OCCUR HAZARDOUS POLYMERIZATION WILL NOT OCCUR STEPS TO BE TAKEN IN CASE MATERIAL IS RELEASED OR SPILLED Rinse with water WASTE DISPOSAL METHOD RESPIRATORY PROTECTION (Specific type)
