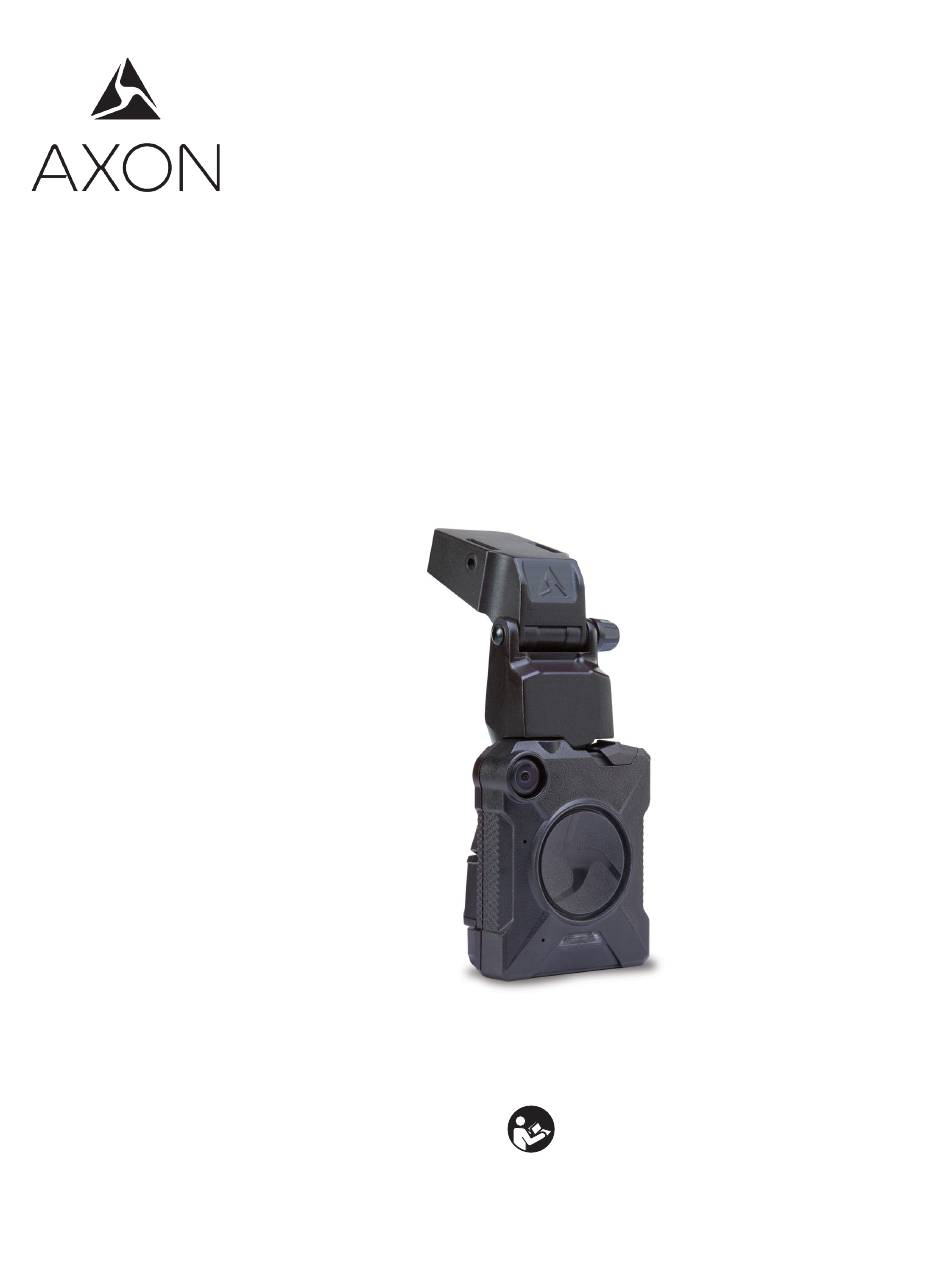

- Page 1 Axon Fleet Camera System User Manual Models AX1001, AX1002, AX1003 IMPORTANT SAFETY INSTRUCTIONS Read all warnings and instructions. Save these instructions. The most up-to-date warnings and instructions are available at www.axon.com MMU0064 Rev: D...
-
Page 2: Table Of Contents
Contents Chapter 1: Introduction What Is the Axon Fleet Camera System? Additional Reading Chapter 2: Getting to Know Your Axon Fleet Camera System Axon Fleet Mounts Axon Fleet Power Unit Chapter 3: Recording with the Axon Fleet System Operating Modes... - Page 3 Axon Fleet Camera System User Manual Customer Service Warranty Policy Warnings Radio Waves Compliance Marks Contents...
-
Page 4: Chapter 1: Introduction
Fleet power unit provides power for more than 4 hours of recording. The Axon Fleet system uses some of the same technology as the Axon Body 2 camera. However, Axon Fleet cannot be used as an on-officer camera, and Axon Body 2 cannot be used as an in-car camera. - Page 5 Help tab in the Evidence.com website. The Axon Academy website explains how to register for the Evidence.com website, configure set- tings, assign personnel to cameras, and transfer video from an Axon device to a computer. Visit academy.axon.com. Chapter 1: Introduction...
-
Page 6: Chapter 2: Getting To Know Your Axon Fleet Camera System
The camera also provides visual and audible notification of the Axon Fleet system’s state of operation. Note: Many of the features activated by the buttons below also can be activated with the Axon View XL program. See the Axon View XL Manual for more information. - Page 7 OFF before stopping an event. Battery Status Button – When pressed, the Battery button lights up the Battery LED, which momentarily indicates the remaining battery capacity in the Axon Fleet power unit (it does not indicate the operating mode). Dual-Channel Microphone – For audio recording.
- Page 8 Uploading data Blinking yellow Firmware update, internal battery charging, Blinking red and yellow – DO NOT remove the extremely low battery, or memory full camera from the Axon Dock Chapter 2: Getting to Know Your Axon Fleet Camera System...
-
Page 9: Axon Fleet Mounts

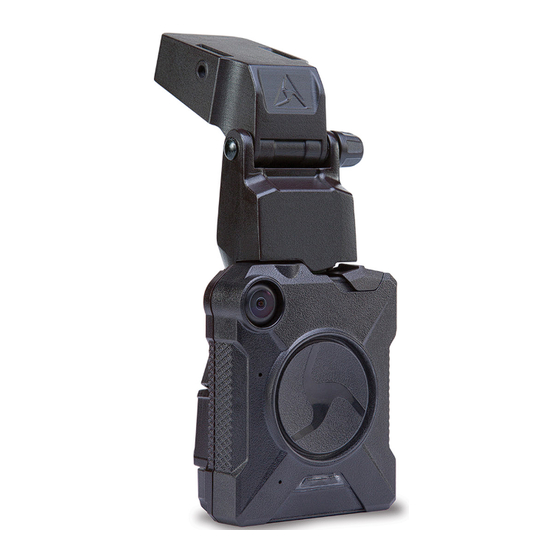

After your camera is at the desired angle, tighten the carriage bolt to secure the camera in place. Front view of Axon Fleet mount without camera; angled view of Axon Fleet mount without camera; side view of Axon Fleet mount and camera showing the range of motion. - Page 10 Note: Move the ON/OFF switch to the OFF position before removing the camera from the mount. Press the 2 buttons on the back of the camera inward. Pull the camera downwards. Chapter 2: Getting to Know Your Axon Fleet Camera System...
-
Page 11: Axon Fleet Power Unit
The Axon Fleet system uses the vehicle’s electrical system as a power source. If the vehicle’s ignition is shut off, the battery in the Axon Fleet power unit supplies power to the camera so it can keep recording. With a fully charged power unit battery, the camera can record over 4 hours without the engine running. -
Page 12: Chapter 3: Recording With The Axon Fleet System
BUFFERING Mode (Turning on the Camera) Move the ON/OFF switch on the camera to the ON position. With the camera turned on, the Axon system is in the BUFFERING mode. When BUFFERING begins: • The Operation LED on the back of the camera will blink green. -
Page 13: Event Mode (Starting Recording)
With default settings, the system does not capture audio in BUFFERING mode, so any- thing recorded in that mode will be video-only. BUFFERING mode starts only after the Axon Fleet system is turned on. The system does not record when the camera is turned off. Notes: •... - Page 14 If a light bar is turned off, the camera will continue to record. The Axon Signal Vehicle unit cannot turn an Axon system on. If the Axon Fleet system is turned off, the camera will not record even if an Axon Signal Vehicle unit sends an event trigger signal.
-
Page 15: Chapter 4: Notification Reference Tables
Chapter 4: Notification Reference Tables Audio Prompts The Axon Fleet system emits beeping sounds called “audio prompts” to notify you of the system status. These audio prompts usually occur after you perform an action with the camera. Operating Mode Audio Notification... -
Page 16: Battery Led
Blinking green and yellow Network error (no connection) Blinking red, yellow, and then green (cycling all colors) Axon Dock has no communication with the LED off camera, wireless upload not working. Contact Axon customer service. Chapter 4: Notification Reference Tables... -
Page 17: Chapter 5: Uploading Video From The Axon Fleet System
The Axon Fleet system can support the multiple offload options listed below: Wireless via LTE The Axon Fleet system can upload video via Long Term Evolution (LTE), a fast wireless service, if the vehicle has an in-car router that supports LTE. For more information, see the Axon View XL Manual. -
Page 18: Chapter 6: Troubleshooting
Chapter 6: Troubleshooting If you experience difficulty with your Axon Fleet system, turn the camera off and turn it on again. If you receive camera status errors in View XL, refer to the Axon View XL manual for troubleshoot- ing information. - Page 19 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult Axon Enterprise Customer Service for help. FCC/IC NOTICE: This device meets the body worn human exposure limits found in OET Bulletin 65, 2001, and ANSI/ IEEE C95.1, 1992.
- Page 20 Axon Fleet Camera System User Manual Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful...
- Page 21 Microsoft Corporation. , AXON, Axon, Axon Body 2, Axon Dock, Axon Fleet, Axon Signal, Axon View XL, Evidence.com, and Evidence Sync are trademarks of Axon Enterprise,, Inc., some of which are registered in the US and other countries. For more information visit www.axon.com/legal.
