Related Manuals for Axon TASER
Summary of Contents for Axon TASER
- Page 1 TASER Axon Body Camera User Manual IMPORTANT SAFETY INSTRUCTIONS. Read all warnings and instructions. Save these instructions. The most up-to-date warnings and instructions are available at www.TASER.com. MMU0046 Rev: C...
-
Page 2: Table Of Contents
Contents Chapter 1: Introduction 3 What Is the Axon Body System? 3 Additional Reading Chapter 2: Getting to Know Your Axon Body Camera 5 Accessories Chapter 3: Recording with the Axon Body Camera 7 Operating Modes 7 BUFFERING Mode 8 EVENT Mode... -
Page 3: Chapter 1: Introduction
Detailed instructions for using Axon cameras and other TASER products with Evidence Sync are available in the Evidence Sync User Manual. For instructions on using your Axon camera with a smart device, see the Axon Mobile for Android Devices User Manual or the Axon Mobile for IOS Devices User Manual, as appropriate. -
Page 4: Chapter 2: Getting To Know Your Axon Body Camera

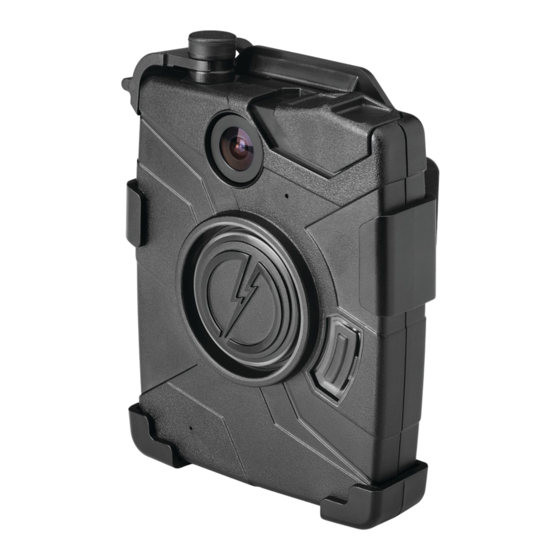

Getting to Know Your Axon Body Camera The Axon Body camera includes physical controls to enable video capture with audio records while providing visual and audible notifications of the Axon Body camera's state of operation. Top View Bottom View Operation LED... -
Page 5: Accessories
Accessories The Axon Body camera is designed to be worn in a holster that can be clipped to your shirt. The holster incorporates a plug that goes into the camera’s connection socket when the camera is holstered. The plug is intended to filter excessive ambient noise and prevent dust debris from entering the socket. - Page 6 Ensure the Axon Body camera is completely inserted into holster. When you are wearing the camera, you can use the Axon Mobile application’s live streaming feature to determine whether your camera is capturing the view you intended. See the Axon Mobile Application for Android Devices User Manual or Axon Mobile Application for IOS Devices User Manual for more information.
-
Page 7: Chapter 3: Recording With The Axon Body Camera
BUFFERING Mode Move the ON/OFF switch on the camera to the ON position. With the camera turned on, the Axon system is in the BUFFERING mode. When BUFFERING begins: • The Operation LED on the camera will blink green. • The camera will be capturing video but no audio, and will not record to permanent memory while in BUFFERING mode. -
Page 8: Event Mode
Because the system does not capture audio in BUFFERING mode, the first 30 seconds of a recorded event will be video-only. Buffering mode starts only after the Axon Body camera is turned on. The system does not record when the camera is turned off. -
Page 9: Turning Off The Camera Leds
For interpreting the LED colors, see Chapter 2 Getting to Know Your Axon Body Camera. To turn the lights back on, press and hold the Battery button for 10 seconds. Chapter 3 Recording with the AXON body Camera... -
Page 10: Chapter 4: Audio Prompts
Audio Prompts The Axon Body camera emits beeping sounds called “audio prompts” to notify you of the system status. These audio prompts usually occur after you perform an action with the body camera. Operating Mode Audio Notification Powering on or off... -
Page 11: Chapter 5: Care And Maintenance
Use a soft, damp cloth to clean the surface of the Axon Body camera. Do not use harsh cleaners or solvents. Do not immerse the Axon Body camera in water or cleaning solutions. If the Axon Body camera lens becomes dirty, use a lens blower brush to clean it and then wipe it with a soft cloth if necessary. -
Page 12: Chapter 6: Troubleshooting
If experiencing difficulty with the Axon Mobile application, power down the mobile device, turn the device back on, and re-pair your smart device with the Axon Body camera. See the Axon Mobile for Android Devices User Manual or Axon Mobile for IOS Devices User Manual, as appropriate, for more information. -
Page 13: Radio Waves
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult TASER International Customer Service for help. FCC/IC NOTICE: This device meets the body worn human exposure limits found in OET Bulletin 65, 2001, and ANSI/IEEE C95.1, 1992. - Page 14 Section 7.1.2 of RSS-GEN Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
-
Page 15: Chapter 7: Ce Declaration Of Conformity
Declaration of Conformity TASER International declares that this Axon system is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the original Declaration of Conformity can be found at www.TASER.com. - Page 16 S. C. Johnson & Son, Inc. Evidence.com and are trademarks of TASER International, Inc., and Axon and © are trademarks of TASER International, Inc., registered in the US and other countries. For more information, visit www.TASER.com/legal. All rights reserved.
