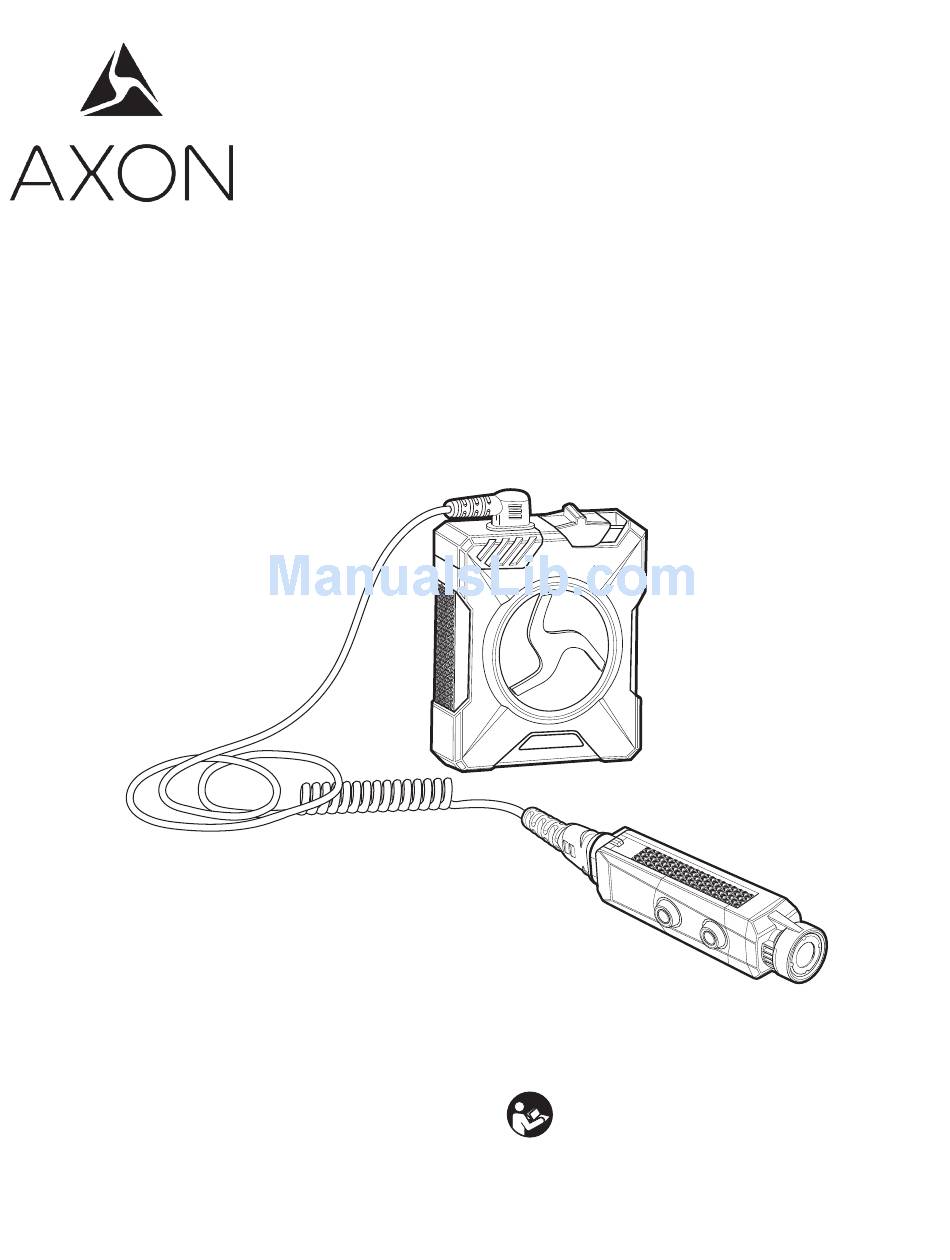

Page 1: User Manual

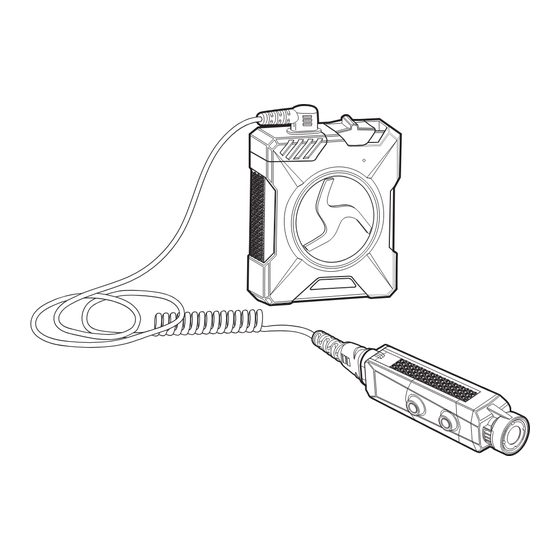

Axon Flex 2 User Manual Models AX1005, AX1006 IMPORTANT SAFETY INSTRUCTIONS Read all warnings and instructions. Save these instructions. The most up-to-date warnings and instructions are available at www.axon.com MMU0067 Rev: D... -
Page 2: Table Of Contents
Chapter 1: Introduction What Is the Axon Flex 2 Camera System? Important Safety and Health Information Additional Reading Chapter 2: Getting to Know Your Axon Flex 2 Camera Axon Flex 2 Features Axon Flex 2 Camera Axon Flex 2 Controller... - Page 3 Adjusting the Audio Prompt Volume Turning off the Camera LEDs (Stealth Mode) To use Evidence Sync: Using Axon View Pairing Your Axon Flex 2 Camera with a Smart Device Other Settings Chapter 5: Notification Reference Tables Audio Prompts LED Status...
-
Page 4: Chapter 1: Introduction
For instructions on using Axon cameras with a smart device, see the Axon View for Android De- vices User Manual or the Axon View for iOS Devices User Manual. If you have an Axon Dock, see the Axon Dock Quick Start Guide for how to transfer information and recharge your camera. -
Page 5: Chapter 2: Getting To Know Your Axon Flex 2 Camera
5. Speaker – Issues alerts in the form of beeps. Axon Flex 2 Controller The Axon Flex 2 camera includes physical controls to enable video and audio capture while pro- viding visual, audible, and vibration notifications of the Axon Flex 2 camera’s state of operation. - Page 6 * When the Function LED also is blinking red. Interrupted video is video that was stopped incor- rectly (for example a sudden power loss). ** When the Function LED also is solid red. Chapter 2: Getting to Know Your Axon Flex 2 Camera...
- Page 7 LED displays the battery status for approximately 10 seconds and then resumes displaying the EVENT mode. Battery Status Battery LED Battery capacity is 41–100 percent Green Battery capacity is 20–40 percent Yellow Battery capacity is less than 20 percent Chapter 2: Getting to Know Your Axon Flex 2 Camera...
-
Page 8: Axon Flex 2 Cables And Connectors
A USB cable is available to connect the Axon Flex 2 camera directly to your computer. The cable used with the Axon Flex 2 system is not the same as the cable used with the Axon Flex system. The cables are not interchangeable. -
Page 9: Axon Rapidlock Mount
(called the lock). To en- gage the Axon RapidLock, insert the key of the camera into the lock of the mount and turn it 90 degrees counter-clockwise (when you are looking straight at the mount). To release the camera from the mount, turn the camera 90 degrees clockwise. -
Page 10: Assembly And Use
Assembly and Use Read Important Safety and Health Information (Chapter 1) before performing these steps. Insert the key on the back of the Axon Flex 2 controller into the lock. Twist the RapidLock mount counterclockwise, 90 degrees. Place the magnetic back underneath the shirt, patrol vest, or whatever you are using. -
Page 11: Other Equipment Mounting Options
Other Equipment Mounting Options The Axon Flex 2 system provides you with a variety of ways to wear your camera. A variety of mounts enable the camera to be attached to your Oakley Flak Jacket eyewear, shirt collar or ep- aulette, load bearing equipment, helmet, or cap. -
Page 12: Chapter 3: Hardware Details
If you have the Axon View application, you can view live video and determine if the cam- era is pointed where you want it. See the Axon View for Android Devices or Axon View for iOS Devices manuals for more information on how to do this. -
Page 13: Using The Camera Clip
Ensure that it closes properly. Using the Camera Clip Several mounting systems are available for the Axon Flex 2 camera, enabling you to wear the camera in different ways. The camera does not attach directly to a mount. Instead, the camera is attached to a camera clip, and the clip is then fitted to the mount. -
Page 14: Attaching The Camera To The Clip
Axon Flex 2 User Manual Attaching the Camera to the Clip To attach the camera to the clip, push the camera straight into the clip as shown. Chapter 3: Hardware Details... -
Page 15: Removing The Camera From The Clip
Axon Flex 2 User Manual Removing the Camera from the Clip To remove the camera from the clip, roll the camera out. front view Attaching the Clip to a Mount With the camera attached to the clip, press the clip onto the mounting system you are using. -
Page 16: Chapter 4: Recording With The Axon Flex 2 Camera
BUFFERING Mode (Turning on the Camera) • Move the On/Off switch on the controller to the On position. With the camera turned on, the Axon system is in the BUFFERING mode. When BUFFERING be- gins: • The Operation LED on the camera will blink green. -
Page 17: Event Mode (Starting Recording)
With default settings, the system does not capture audio in BUFFERING mode, so anything re- corded in that mode will be video-only. Buffering mode starts only after the Axon Flex 2 camera is turned on. The system does not record when the camera is turned off. -
Page 18: Adding Markers To Recorded Video
Battery Status Press the Battery Status button to determine the percentage remaining in the battery. See Chap- ter 2: Getting to Know Your Axon Flex 2 Camera for details on the Battery LED functions. Configuring Your Axon Camera Adjusting the Audio Prompt Volume Connect the Axon Flex 2 camera to the Evidence Sync application. -
Page 19: Using Axon View
• Select the option to turn on the device LEDs. Using Axon View See the Axon View for Android Devices User Manual or the Axon View for iOS Devices User Man- ual. Pairing Your Axon Flex 2 Camera with a Smart Device For instructions on using Axon cameras with a smart device, see the Axon View for Android De- vices User Manual or the Axon View for iOS Devices User Manual. -
Page 20: Chapter 5: Notification Reference Tables
Chapter 5: Notification Reference Tables Audio Prompts The Axon Flex 2 camera emits beeping sounds called “audio prompts” to notify you of the system status. These audio prompts usually occur after you perform an action with the body camera. These audio prompts are accompanied by a vibration that matches the beeps. -
Page 21: Led Status
Axon Flex 2 User Manual LED Status Controller Operation LED Shows the camera’s current operating mode (for battery status, see the Battery LED, described below). Operating Mode Operation LED EVENT Blinking red BUFFERING Blinking green Recovering interrupted video* Blinking red... -
Page 22: Camera Upload Status Led
Transfer error, device re-trying to transfer Blinking green and yellow Network error (no connection) Blinking red, yellow, and then green (cycling all colors) Axon Dock has no communication with the LED off camera. Contact Axon customer service. Chapter 5: Notification Reference Tables... -
Page 23: Chapter 6: Axon Signal Operations
Signal technology does not end recording. If a light bar is turned off, the camera will continue to record. The Axon Signal Vehicle unit cannot turn an Axon system on. If the Axon Flex 2 camera is turned off, the camera will not record even if an Axon Signal Vehicle unit sends an activation signal. -
Page 24: Chapter 7: Care And Maintenance
Do not immerse the Axon Flex 2 camera in water or cleaning solutions. If the Axon Flex 2 camera lens becomes dirty, use a lens blower brush to clean it and then wipe it with a soft cloth if necessary. -
Page 25: Chapter 8: Troubleshooting
If you experience difficulty with your Axon Flex 2 camera, first power the device down, and start it again. If the Axon Flex 2 system beeps 5 times every 20 seconds, reconnect it to Evidence.com via the Axon Dock or Evidence Sync software. - Page 26 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult Axon International Customer Service for help. FCC/IC NOTICE: This device meets the body worn human exposure limits found in OET Bulletin 65, 2001, and ANSI/IEEE C95.1, 1992.
- Page 27 Axon Flex 2 User Manual Cet appareil est conforme aux normes d’exemption de licence RSS d’Industrie Canada. Son utili- sation est soumise aux conditions suivantes : 1) cet appareil ne doit pas causer de brouillage, et 2) doit accepter tout brouillage, y compris le brouillage pouvant entraîner un fonctionnement indésirable.
- Page 28 , AXON, Axon, Axon Flex 2, Axon Dock, Axon RapidLock, Axon Signal, Axon View, Evidence.com, and Evidence Sync are trademarks of Axon Enterprise, Inc., some of which are registered in the US and other countries. For more informa- tion, visit www.axon.com/legal. All rights reserved. © 2017 Axon Enterprise, Inc.
