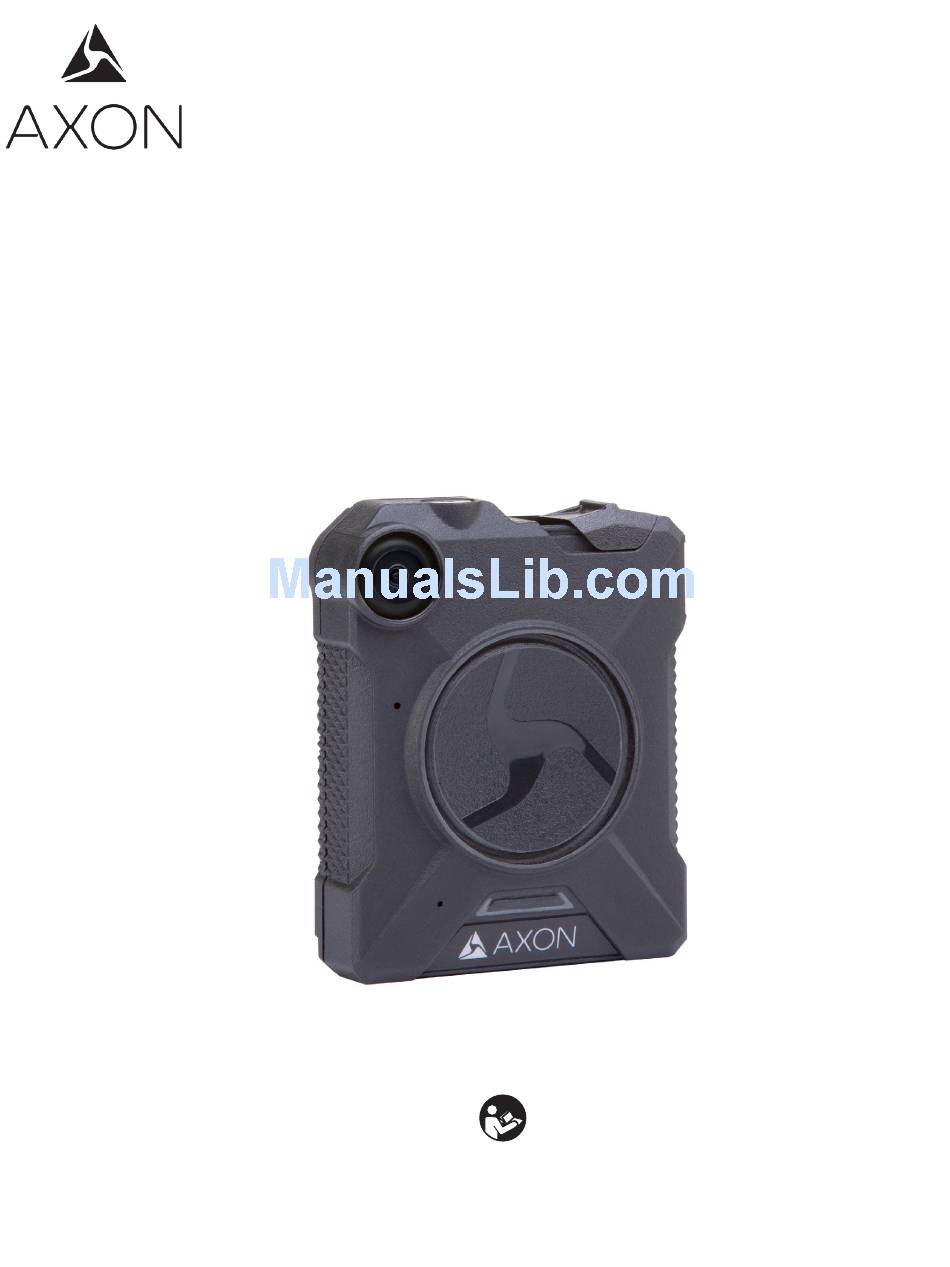

Page 1: User Manual
Axon Body 2 Camera User Manual Model AX1001 IMPORTANT SAFETY INSTRUCTIONS Read all warnings and instructions. Save these instructions. The most up-to-date warnings and instructions are available at www.axon.com MMU0057 Rev: G... -
Page 2: Table Of Contents
Chapter 1: Introduction What Is the Axon Body 2 Camera System? Important Safety and Health Information Additional Reading Chapter 2: Getting to Know Your Axon Body 2 Camera Accessories Parts Assembly and Use Chapter 3: Recording with the Axon Body 2 Camera... - Page 3 Axon Body 2 Camera User Manual Chapter 5: Axon Signal Operations Chapter 6: Care and Maintenance Cleaning the Axon Body 2 Camera Charging the Battery Replacing the Battery Chapter 7: Troubleshooting Customer Service Warranty Policy Warnings Radio Waves Declaration of Conformity...
-
Page 4: Chapter 1: Introduction

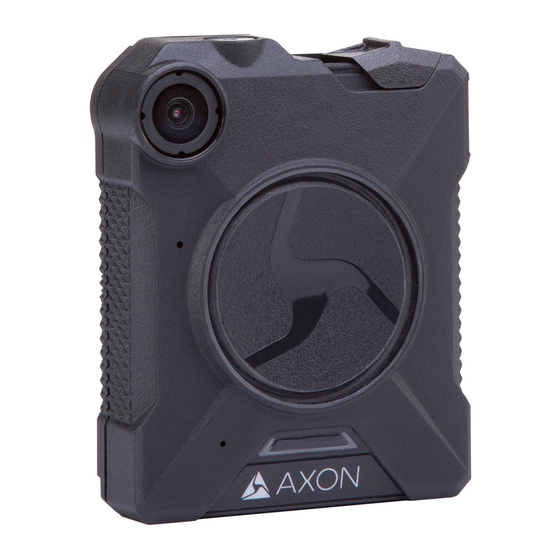

Chapter 1: Introduction What Is the Axon Body 2 Camera System? The Axon Body 2 is a camera system incorporating an audio and video recording device. This cam- era is designed for use in tough environmental conditions encountered in law enforcement, cor- rections, military, and security activities. -
Page 5: Chapter 2: Getting To Know Your Axon Body 2 Camera
Chapter 2: Getting to Know Your Axon Body 2 Camera The Axon Body 2 camera includes physical controls to enable video and audio capture while pro- viding visual, audible, and vibration notifications of the Axon Body 2 camera’s state of operation. - Page 6 Battery capacity is 20–40 percent Yellow Battery capacity is less than 20 percent Red during operation; flashing red and yellow during charging Battery is critically low Blinking red and yellow Chapter 2: Getting to Know Your Axon Body 2 Camera 3...
-
Page 7: Accessories
(called the lock). To engage the Axon RapidLock, insert the key of the camera into the lock of the mount and turn it 90 degrees counterclockwise (when you are looking straight at the mount). To release the camera from the mount, turn the camera 90 degrees clockwise. -
Page 8: Parts
Assembly and Use Read Important Safety and Health Information (Chapter 1) before performing these steps. Insert the key on the back of the Axon Body 2 camera into the lock. Twist the Axon RapidLock mount counterclockwise, 90 degrees. Place the magnetic back underneath the shirt, patrol vest, or whatever you are using. - Page 9 Axon Body 2 Camera User Manual When you are wearing the camera, you can use the Axon View application’s live streaming feature to determine whether your camera is capturing the view you intended. Chapter 2: Getting to Know Your Axon Body 2 Camera 6...
-
Page 10: Chapter 3: Recording With The Axon Body 2 Camera
Chapter 3: Recording with the Axon Body 2 Camera Before using an Axon Body 2 camera, ensure it is fully charged and connect it to Evidence.com via the Axon Dock or Evidence Sync software to ensure it is properly configured. See... -
Page 11: Event Mode (Starting Recording)
With default settings, the system does not capture audio in BUFFERING mode, so anything re- corded in that mode will be video-only. Buffering mode starts only after the Axon Body 2 cam- era is turned on. The system does not record when the camera is turned off. -
Page 12: Adding Markers To Recorded Video
Battery Status Press the Battery button to determine the percentage remaining in the battery. See Chapter 2: Getting to Know Your Axon Body 2 Camera for details on the Battery LED functions. Configuring Your Axon Camera Adjusting the Audio Prompt Volume Connect the Axon Body 2 camera to the Evidence Sync application. -
Page 13: Using Axon View
Select the option to turn on the device LEDs. Using Axon View See the Axon View for Android Devices User Manual or the Axon View for iOS Devices User Man- ual. Pairing Your Axon Body 2 Camera with a Smart Device For instructions on using Axon cameras with a smart device, see the Axon View for Android De- vices User Manual or the Axon View for iOS Devices User Manual. -
Page 14: Chapter 4: Notification Reference Tables
Chapter 4: Notification Reference Tables Audio Prompts The Axon Body 2 camera emits beeping sounds called “audio prompts” to notify you of the sys- tem status. These audio prompts usually occur after you perform an action with the body camera. -
Page 15: Led Status
Axon Body 2 Camera User Manual LED Status Operation LED Operating Mode Operation LED Recording Blinking red Recovering interrupted video* Buffering Blinking green Booting up/powering down Solid red Error state** * When the Function LED also is blinking red. ** When the Function LED also is solid red. - Page 16 Axon Body 2 Camera User Manual System Status LED Indication Device not assigned, agency mismatch, cam- Blinking red era set in the offline mode, or device error Uploading data Blinking yellow Firmware update, internal battery charging, Blinking red and yellow – DO NOT remove the...
-
Page 17: Chapter 5: Axon Signal Operations
Signal technology does not end recording. If a light bar is turned off, the camera will continue to record. The Axon Signal Vehicle unit cannot turn an Axon system on. If the Axon Body 2 camera is turned off, the camera will not record even if an Axon Signal Vehicle unit sends an activation signal. -
Page 18: Chapter 6: Care And Maintenance
If the Axon Body 2 camera is to be stored for a long time, the Battery LED should be yellow when you put the camera in storage. After an Axon Body 2 camera has been stored 6 months, the cam-... -
Page 19: Replacing The Battery
Axon Body 2 Camera User Manual Replacing the Battery Replacement batteries are combined with the back portion of an Axon Body 2 camera. Replacing a battery involves removing the back of the camera and installing a new camera back. Turn the Axon Body 2 camera off. -
Page 20: Chapter 7: Troubleshooting
Chapter 7: Troubleshooting If you experience difficulty with your Axon Body 2 camera, first power the device down, and start it again. If the Axon Body 2 camera system beeps 5 times every 20 seconds, reconnect it to Evidence.com via the Axon Dock or Evidence Sync software. - Page 21 Axon Body 2 Camera User Manual does not exceed the limit established by the government-adopted requirement for safe exposure. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 22: Declaration Of Conformity
WAVES. Declaration of Conformity Axon declares that this Axon system is in compliance with the requirements and other relevant provisions of the RTT&E Directive 1999/5/EC regarding radio and telecommunications equipment and the Directive 2014/30/EU regarding electromagnetic compatibility. A copy of the original Declaration of Conformity can be found at www.axon.com. - Page 23 Microsoft Corporation. , AXON, Axon, Axon Body 2, Axon Dock, Axon RapidLock, Axon Signal, Axon View, Evidence.com, and Evi- dence Sync are trademarks of Axon Enterprise, Inc., some of which are registered in the US and other countries.
