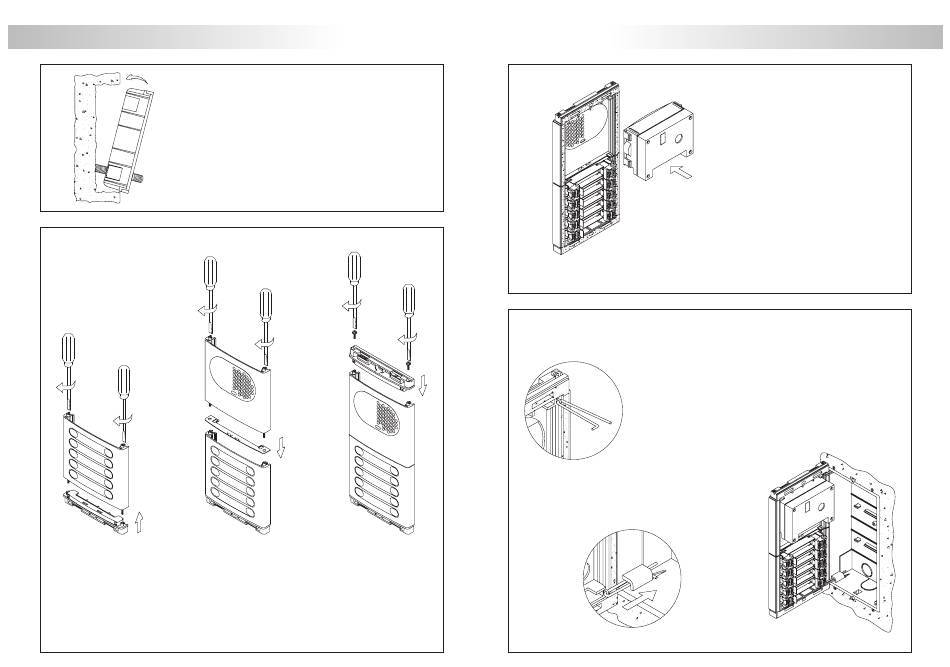

DOOR PANEL INSTALLATION
Pass the wiring through the hole made in the bottom part
of the embedding box. Level and flush the embedding
box. Once the embedding box is placed, remove the
protective labels from the attaching door panel holes.
A
ssembly the door panel
modules.
Insert the header DOWN marked in the lower module and fix it by screwing the module
shafts.
Place the module spacer between lower and next modules, assuring that the spacer
adjustment notches are inside the panel. Fix the module by screwing the shafts.
Repeat this procedure in case of door panels with one more module (the maximum
number of modules placed vertically is three).
Insert the header UP marked in the last module and fix it by screwing the supplied screws.
3
P
lace the embedding
box.
4
DOOR PANEL INSTALLATION
H
old the door panel on the
embedding box.
Select a direction to open the door panel; this selection should ease
the door panel wiring.
The opening direction will be settled through the hinges position,
that must be passed through the header clips as shown.
For example, if the hinges are placed on both clips of the lower
header, the door panel will open downwards; if they are placed
on the right clips of both headers, the door panel will open to left.
To hold the door panel on the embedding box,
insert the hinges in the embedding box lockers
as shown.
A
ssembly the sound module.
Insert the sound module in the grille module.
For a proper assembly, align the light
push button and the microphone rubber
of the sound module with its corresponding
holes in the grille module.
