PROAIM CINEMA Series Assembly Manual

Photo booth rotating camera platform

Hide thumbs Also See for CINEMA Series:

Compass 360° Photo Booth Rotating Camera

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

Platform

A s s e m b l y M a n u a l

Dolly Base Leg

Rods

statutes or in writing by the Publisher.

(DL-CMPS-01)

Top Plate

4 (Size: 6x10mm Allen Button)

5 (Size: 6x15mm Pan Phillips)

4mm Allen key

Ball Head

Table of Contents

Need help?

Do you have a question about the CINEMA Series and is the answer not in the manual?

Page 1 Compass 360° Photo Booth Rotating Camera (DL-CMPS-01) Platform A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Compass 360° Camera Platform Setup • Insert the rod in 360° rod adapter of the Dolly Base Leg. • Same as above, insert the second rod into the other side of 360° rod adapter of dolly base leg. • Insert the allen bolts to secure both the rods with the dolly base leg.
Page 3 • Remove all bolts of top plate properly with the help of Allen key. • By placing the 2nd plate above the top plate, insert the bolt and secure the plate properly. • Both the plates are properly attached with the dolly base leg.
Page 4 • Now attach the Ball Head to the mounting part of the Adjustable angle rod and tighten it manually. NOTE: Ball head causes circular movements and by loosening or tightening the knob, you can adjust its movement according to your needs. •...

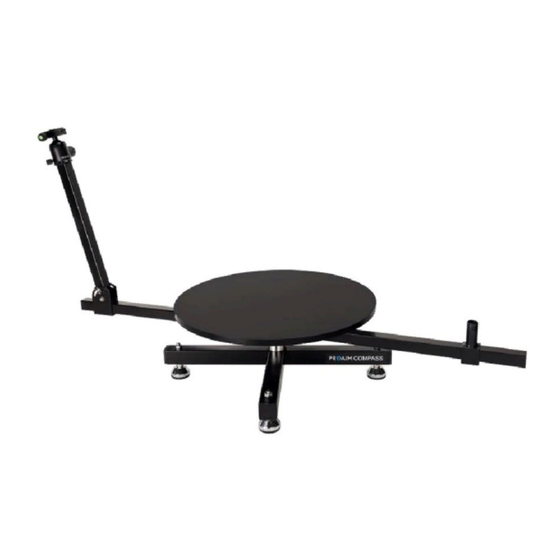

Page 5 • The setup is ready to use, as shown in the image. YOUR PROAIM COMPASS 360° PHOTO BOOTH ROTATING CAMERA PLATFORM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
