PROAIM CINEMA Series Instruction Manual
Hide thumbs
Also See for CINEMA Series:
- Instruction manual (18 pages) ,
- Assembly manual (14 pages) ,
- Assembly manual (5 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROAIM CINEMA Series
Summary of Contents for PROAIM CINEMA Series

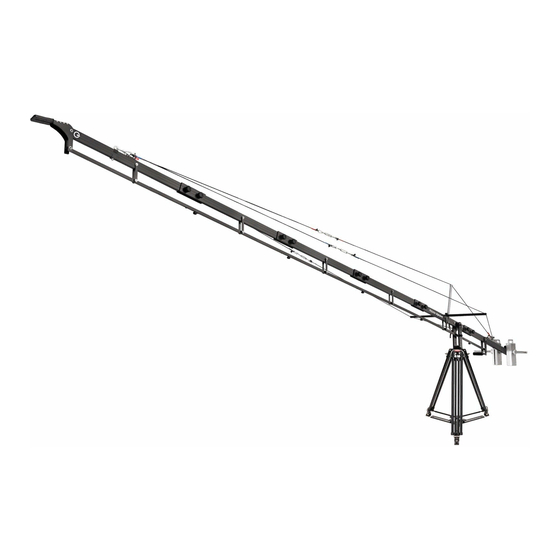

- Page 1 Alphabet 21ft Jib Crane (P-21-J) Instruction Manual...
- Page 2 At Proaim, our goal is to ensure 100% Customer Satisfaction in all that we do. We back our sales with a 1 year warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise.
- Page 3 Proaim family. By purchasing your Proaim Alphabet 21ft Jib Crane, you have just joined a host of designers, engineers, machinists, assembly, customer service and office staff that take great pride in all that they do.
- Page 4 Considering the need of film productions; this travel friendly camera boom with unbeatable high-end quality and technicalities offer promising performance and reliability. Take a deeper look at Proaim Alphabet 21ft Video Jib Crane, and you’ll find innovation on every level.
- Page 5 Supporting Accesssories Cables With Length And Quantity Storage Bag...
- Page 6 Assembling Install the Hub (Section 2 of Jib) into bowl of your 100 mm tripod stand and tighten the hub with center locking knob. Connecting Jib Arm Sections Section 2 with 3 : Loosen the provided knob at the end of section 2 to slide the bars of section 3 into the end of section 2 .
- Page 7 Assembling Cable Guide And Support Rod For Attaching Section 2a with 2, 2b with 2a, 2c with 2b & 1 with 2c : Attach cable guide to cable guide clamp on 2nd section properly. Loosen the knob, ahead of cable guide clamp in order to attach cable guide support rod to it.
- Page 8 Similarly attach the second blue cable and align both the blue cables to the side of support rod. Now attach one end of 14.3ft red cable to red hook on back side of jib (section 3 ) and align the red cable to the cable guide from top.
- Page 9 Adjusting The Wire Tensioner The wires have the screw-in wire adjustment system in order to adjust the wire tension to level the jib . The jib arm can be locked (tilting) with the help of this knob. Insert the weight rod &...
- Page 10 The central fork has free hole to attach LCD mount bracket (not included) . The camera plate can be tilted upwards & downwards with the help of provided handle.
- Page 11 YOUR PROAIM 12FT JIB ARM WITH STAND ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual.
