PROAIM Cinema Series Assembly Manual

Camera vibration isolator arm

Hide thumbs Also See for Cinema Series:

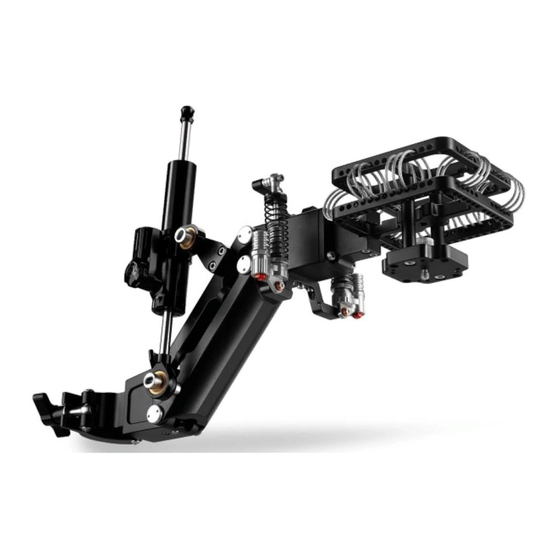

Airwave V5 Camera Vibration Isolator Arm

(VI-ARWV-5)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

Dampener

Airwave V5 Vibration Isolator Arm

4 x L-Type Allen Keys

(Sizes: 2.5mm,3mm, 4mm & 3x16mm)

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the Cinema Series and is the answer not in the manual?

Page 1 Airwave V5 Camera Vibration Isolator Arm (VI-ARWV-5) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Isolator Arm Setup  Remove both the bolts of the Airwave V5 Vibration Isolator Arm with the help of an Allen Key.  Both the bolts of the Airwave V5 Vibration Isolator Arm have been removed, as shown in the image. Assembling of Dampener ...
Page 3 NOTE: The arm is equipped with a hydraulic damping support system and shock-absorbing springs that offer you smooth fluid movements .  Loosen both bolts from the gimbal mounting platform of the Airwave Isolator Arm using an Allen Key, and remove the gimbal mounting platform.
Page 4 Airwave V5 Camera Vibration Isolator Arm Features NOTE: The valves should always be adjusted evenly and set identically. Rebound and compression of the hydraulic valves should be set in such a way so that any loose swinging or vibration of the arm is eliminated. NOTE: In order to smoothen Dampening effect, turn the adjustment knob.
Page 5 DJI Ronin 2/S/S2/SC 2, Zhiyun WEEBILL/ CRANE. YOUR PROAIM AIRWAVE V5 CAMERA VIBRATION ISOLATOR ARM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
