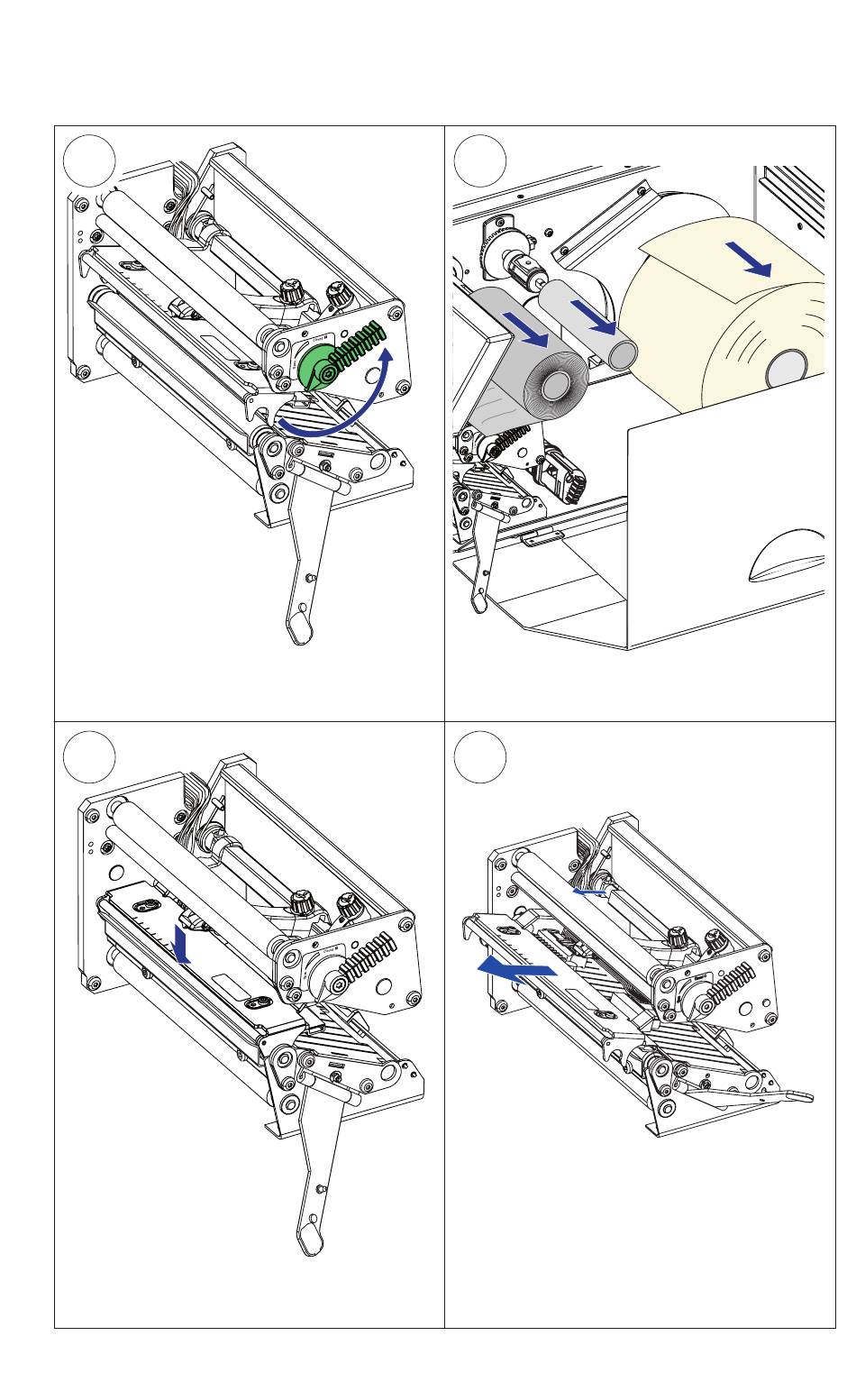

Printhead Replacement, cont.
3
Turn the printhead lift lever counter-
clockwise to raise the printhead.
5
Pull the printhead bracket away from
the magnet in the pressure arm.
EasyCoder PX6i User's Guide (IPL version)
Chapter 10 — Maintenance
4
Remove any media and transfer ribbon.
6
Disconnect the hooked printhead
bracket fi ngers from the shaft and pull
out the printhead as far as the cables
allow.
85
