Adjusting the Projected Image

Xerox DP1011 User's Guide
NOTE:

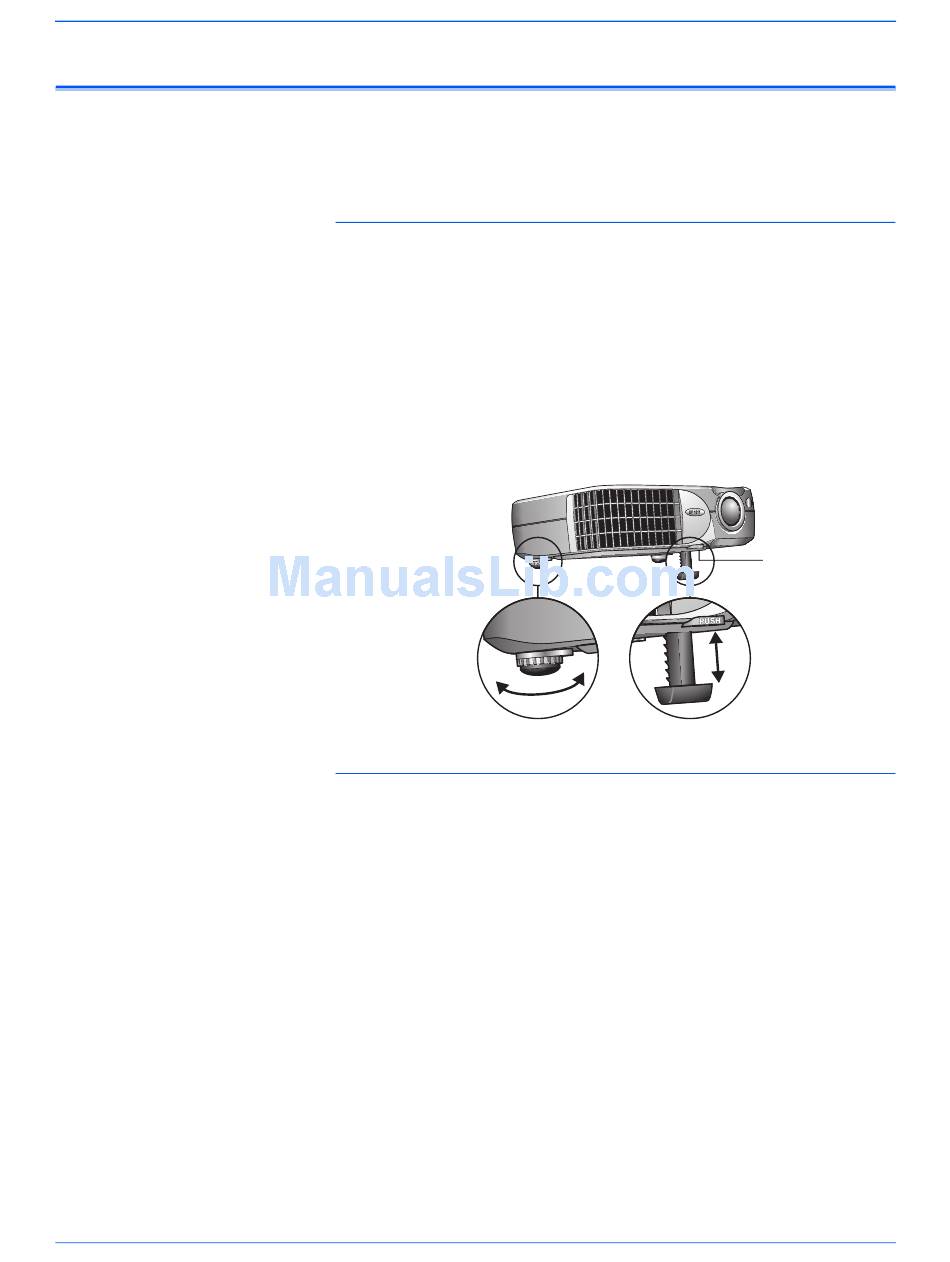

The projector is equipped with an "elevator foot" for
adjusting the projector height.
To raise the projector
1. Lift the projector up and press the elevator button.
The elevator foot pops out.
2. Press the elevator button and hold it in while raising the
projector to the display angle you want, then release the
elevator button to lock the elevator foot in position.
3. Rotate the tilt adjust wheel to fine-tune the display angle. The
tilt adjust wheel is only on the back foot diagonally opposite the
lens.
Tilt Adjust Wheel
To lower the projector
1. Hold the projector with one hand, then press and hold down the
elevator button.
2. Lower the projector, then release the elevator button to lock the
elevator foot in position.
3. Rotate the tilt adjust wheel to fine-tune the display angle.
NOTE:
When placing the projector in its carrying case, please
first retract the elevator foot and tilt adjust wheel to avoid
breakage.
Installation
Elevator Button
Elevator Foot
10
