Optional Power Supply Connections

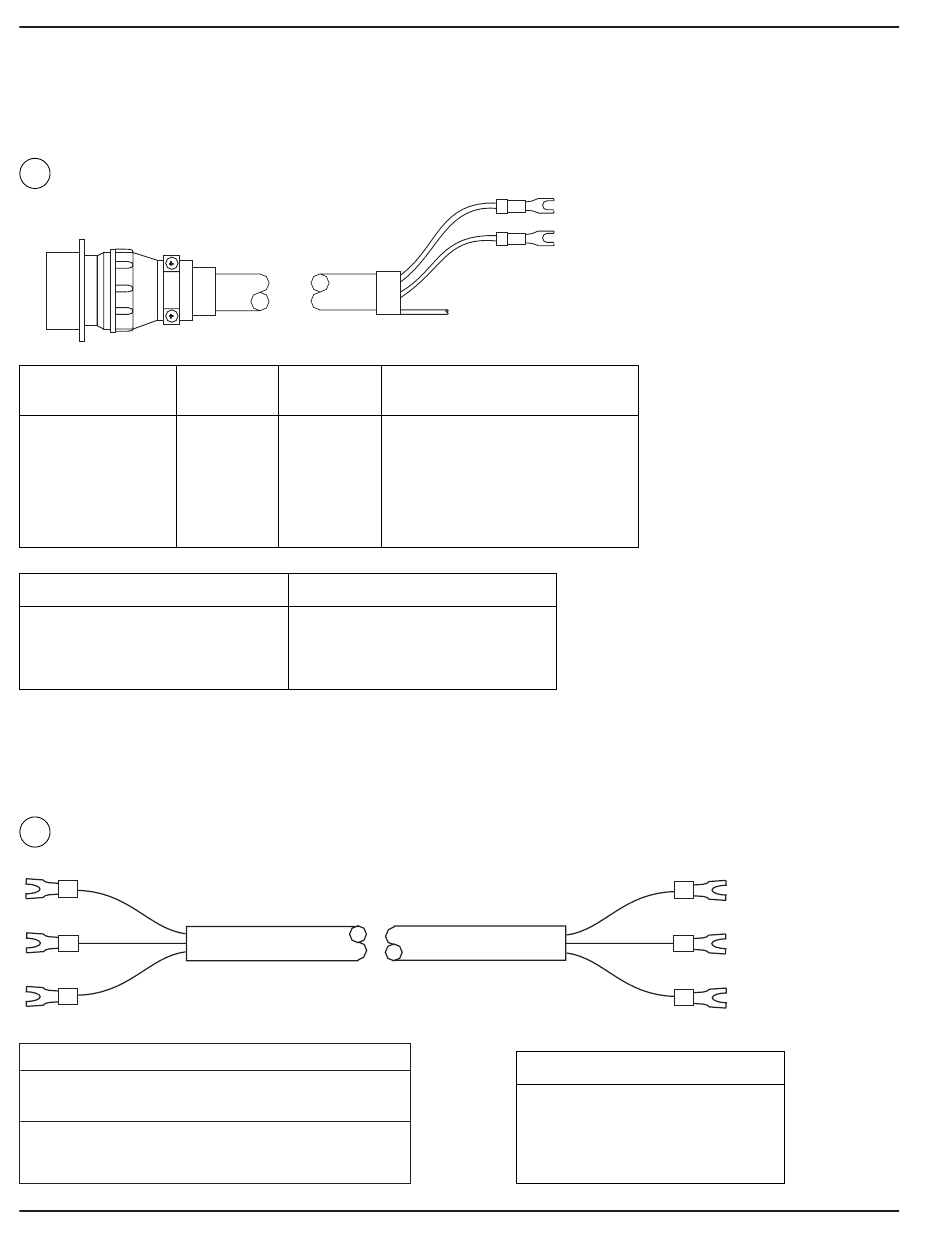

Timer/Counter to Power Supply

26 Timer/Counter cable – Power Supply to Timer/Counter
From Timer/Counter To HT2000
11X1
1
2
3
15
16
12
Part No. Length
023687 10 ft (3 m)
023692 25 ft (7.6 m)
023758 38 ft (12 m)
023693 50 ft (15 m)

Hold Cable Connections (When using Multi-Torch Systems)

If a multi-torch system is being used (more than one power supply), make the following connections at both
power supplies:
27
Hold Cable Connections – Power Supply 1 to Power Supply 2
Black
Red
GND
Legend – To HT2000 TB3 – Both Ends
Wire Color To HT2000
– Black
– Red
GND Shield
4-32
19
11X1
Color
TB3
2 White
1 Black
3 Drain
5 Red
4 Black
6 Drain
Part No.
023694
023695
023696
Function
TB3
13 Hold Signal
14 Hold Common
15 Hold Shield
Function
Starts & Arc time (CON1 Closed)
Starts & Arc time (CON1 Closed)
Drain
Error Counter (Ramp Down Error)
Error Counter (Ramp Down Error)
Drain
Length
75 ft (23 m)
100 ft (30 m)
150 ft (46 m)
Part No.
023340
023341
023342
023343
023344
Black
Red
GND
Length
15 ft (4.5 m)
25 ft (7.6 m)
50 ft (15 m)
100 ft (30 m)
150 ft (46 m)
