Baroness LM315GC Technical Leaflet
Technical information leaflet til: 035 height of cut adjustment
Hide thumbs
Also See for LM315GC:
- Service manual (199 pages) ,
- Owner's operating manual (115 pages) ,
- Assembly and installation manual (19 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for Baroness LM315GC
Summary of Contents for Baroness LM315GC

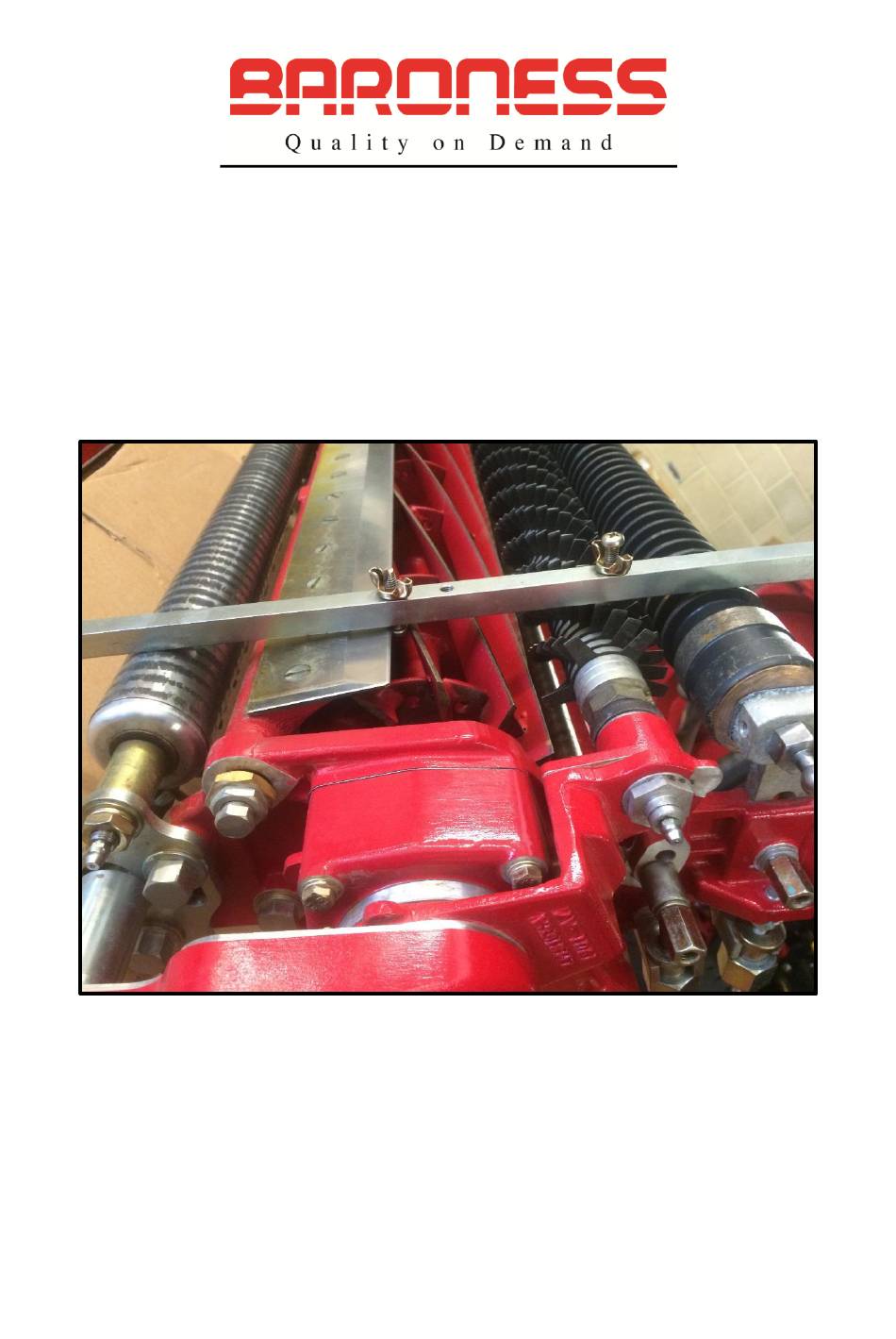

- Page 1 Technical Information Leaflet TIL: 035 LM315GC Height of Cut Adjustment...
- Page 2 HEIGHT OF CUT ADJUSTMENT The setting bar for the Baroness LM315GC has two adjusting screws which are used as follows: Height of Cut Setting Screw Groomer height setting screw. If no groomer is fitted then this screw is not used.
- Page 3 Repeat this on both sides of the machine. With the Baroness setting bar set to the required height of cut, place it into position on the cutting unit so that the ends of the setting bar are resting on both front and rear rollers as shown.
- Page 4 Use the height of cut adjusting nut to change the front roller to the desired setting. Note: turning the adjuster nut clockwise will increase the height of cut and turning it anti-clockwise will decrease the height of cut. Adjust the front roller either up or down using the previously mentioned adjuster nuts until the underside of the adjuster screw slides snuggly (not...
