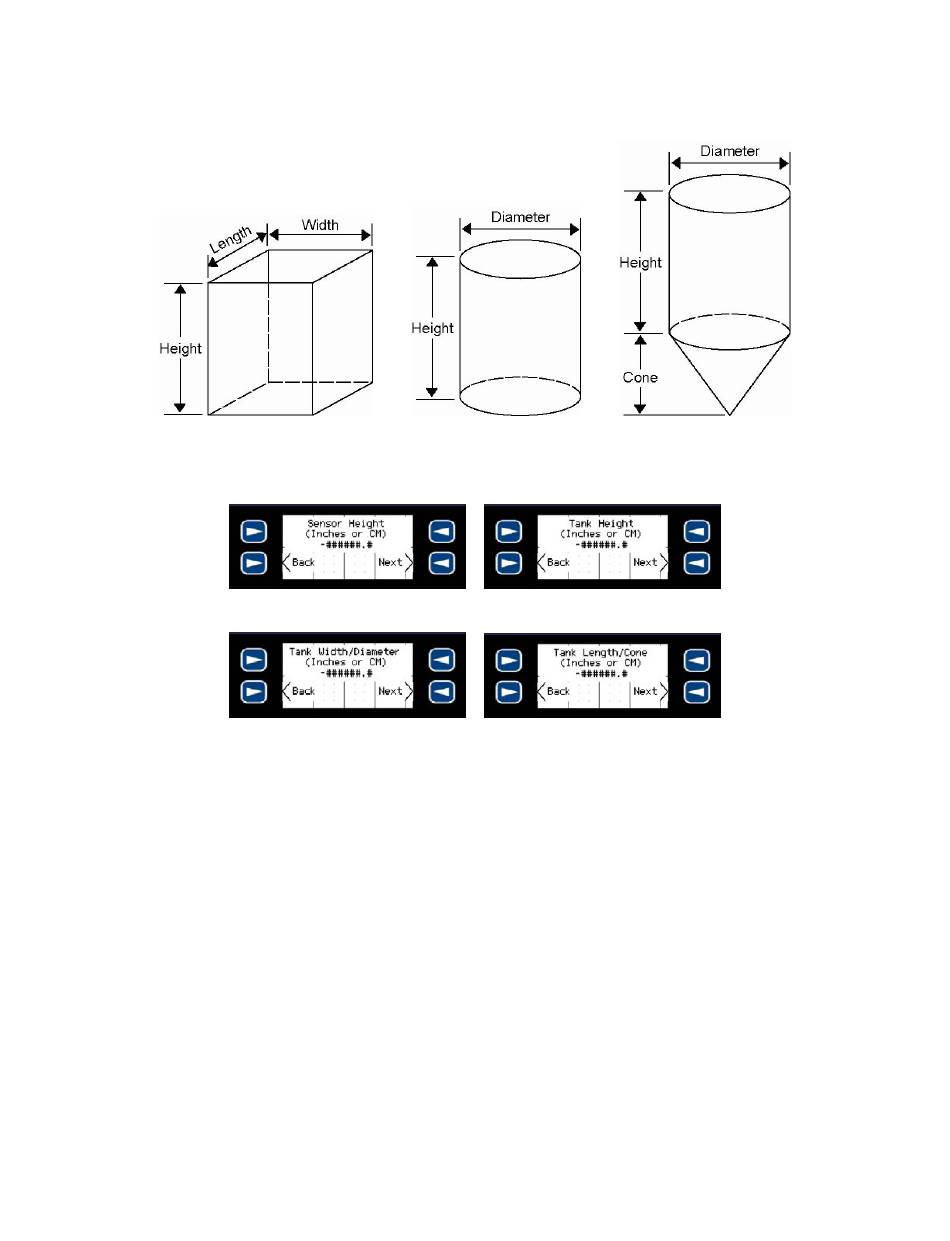

o Vertical Tanks – Select among Rectangular, Round Bottom or Cone Bottom.

Rectangular

1. Sensor Height

3. Tank Width/Diameter

• Sensor Height – This is the distance from the bottom of the tank to the

bottom of the sensor

• Tank Height – This is a dimension for either the Height of the Tank or

the Height of the Straight Side of the cone bottom tank.

•

Tank Width / Diameter – This is either the width of the tank or the

diameter of the tank

• Tank Length / Cone – This is either the length of the tank or the Height

of the Cone. You do not need to configure this setting for the Round

Bottom tank.

• Use the Next soft key to advance to the next setting

• Use the Back soft key to return to the previous setting

44 of 57

Round Bottom

2. Tank Height

4. Tank Length/Cone

PRELIMINARY MANUAL

Commander LI90 Series

Cone Bottom

27 AUG 08

Rev 1_3
