Wiring - FlowLine Commander LI90 Series User Manual

Hide thumbs Also See for Commander LI90 Series:
Table of Contents

Advertisement

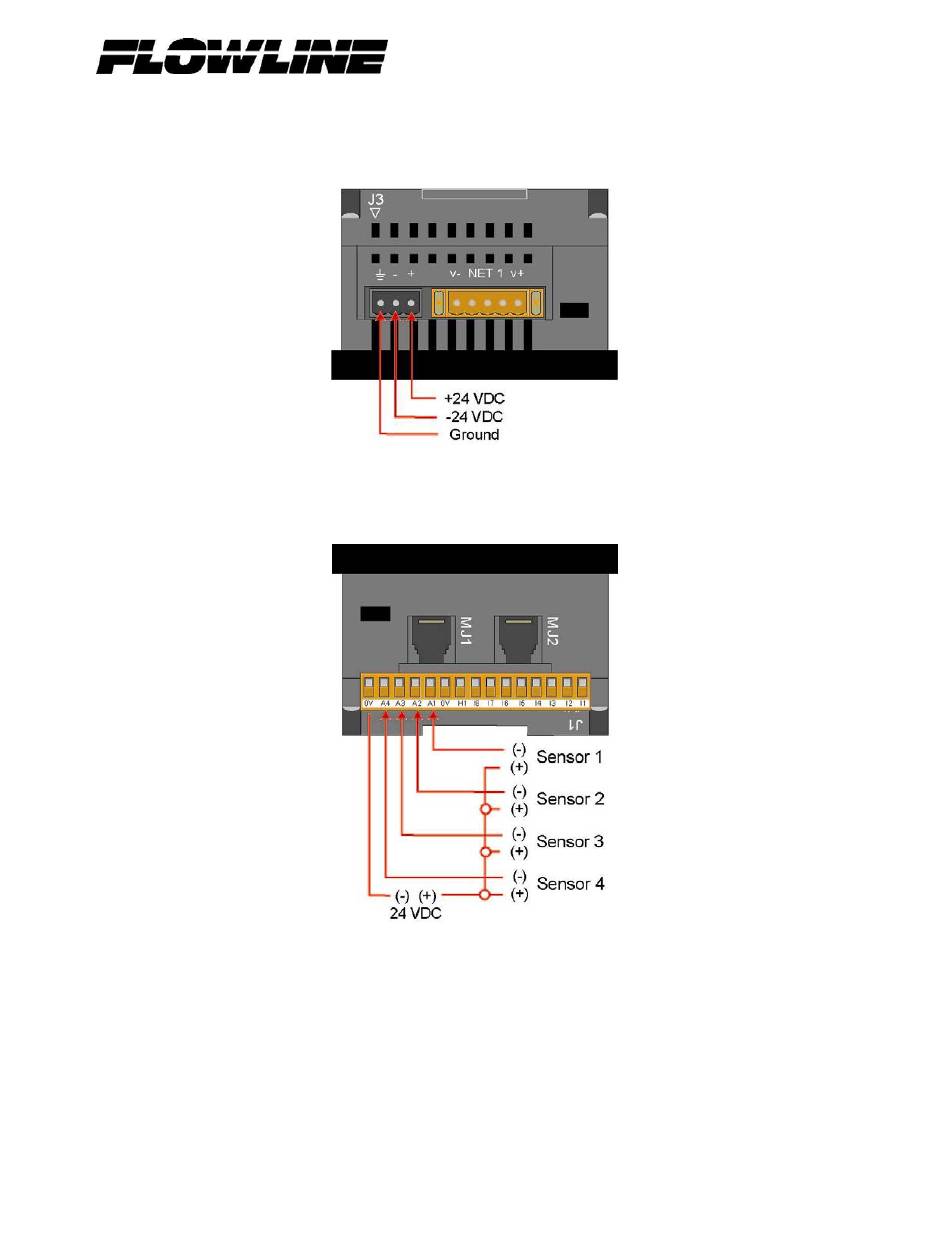

• Wiring

o Power
• Connect to Earth Ground. Apply 10 - 30 VDC.
o Inputs
• Commander can connect up to four 4-20 mA inputs.
27 AUG 08
Rev 1_3
PRELIMINARY MANUAL
Commander LI90 Series
13 of 57
