Din Rail Mounting - FlowLine Commander LI90 Series User Manual

• DIN Rail Mounting

o The LI90 series is designed to clip onto standard 35 millimeter DIN rail. If your
installation requires liquid or dust protection, make sure the controller is placed in an
appropriate sealed panel when mounting on DIN rail. Use the following steps to
mount on DIN rail.

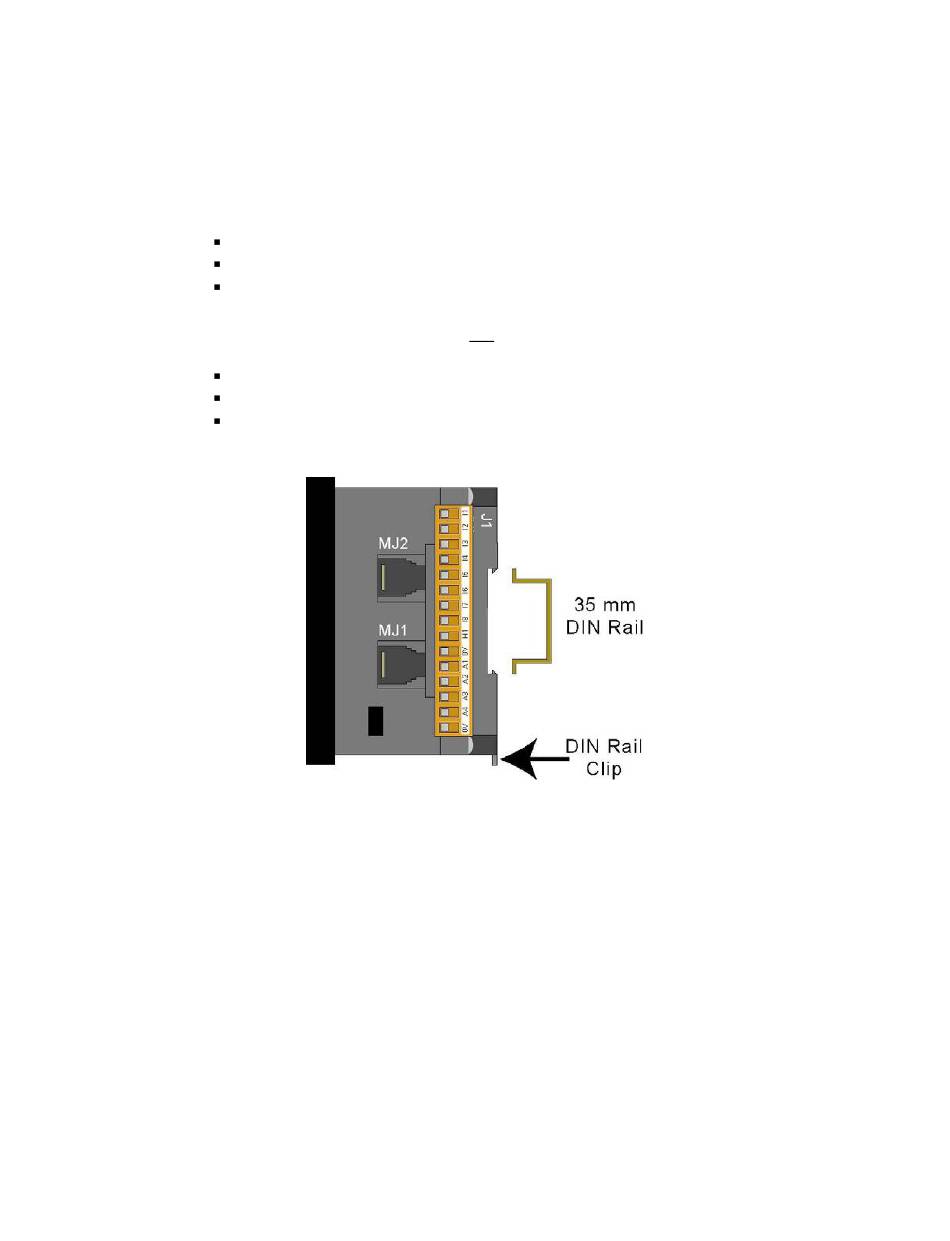

Move the DIN rail clip to the lower position.
Clip the "Top Clips" on the top of the DIN rail.
Press the unit into place and press the DIN rail clip up. A small flat-head
screwdriver can be used in the slot of the DIN rail clip if clearance is an issue.
o Note: The DIN rail connection does not provide an earth ground.
o For DIN rail, use a 35 mm DIN Rail.
Move the DIN rail clip to the lower position.
Clip the "Top Clips" on the top of the DIN rail.
Press the unit into place and press the DIN rail clip up. A small flat-head
screwdriver can be used in the slot of the DIN rail clip if clearance is an issue.
