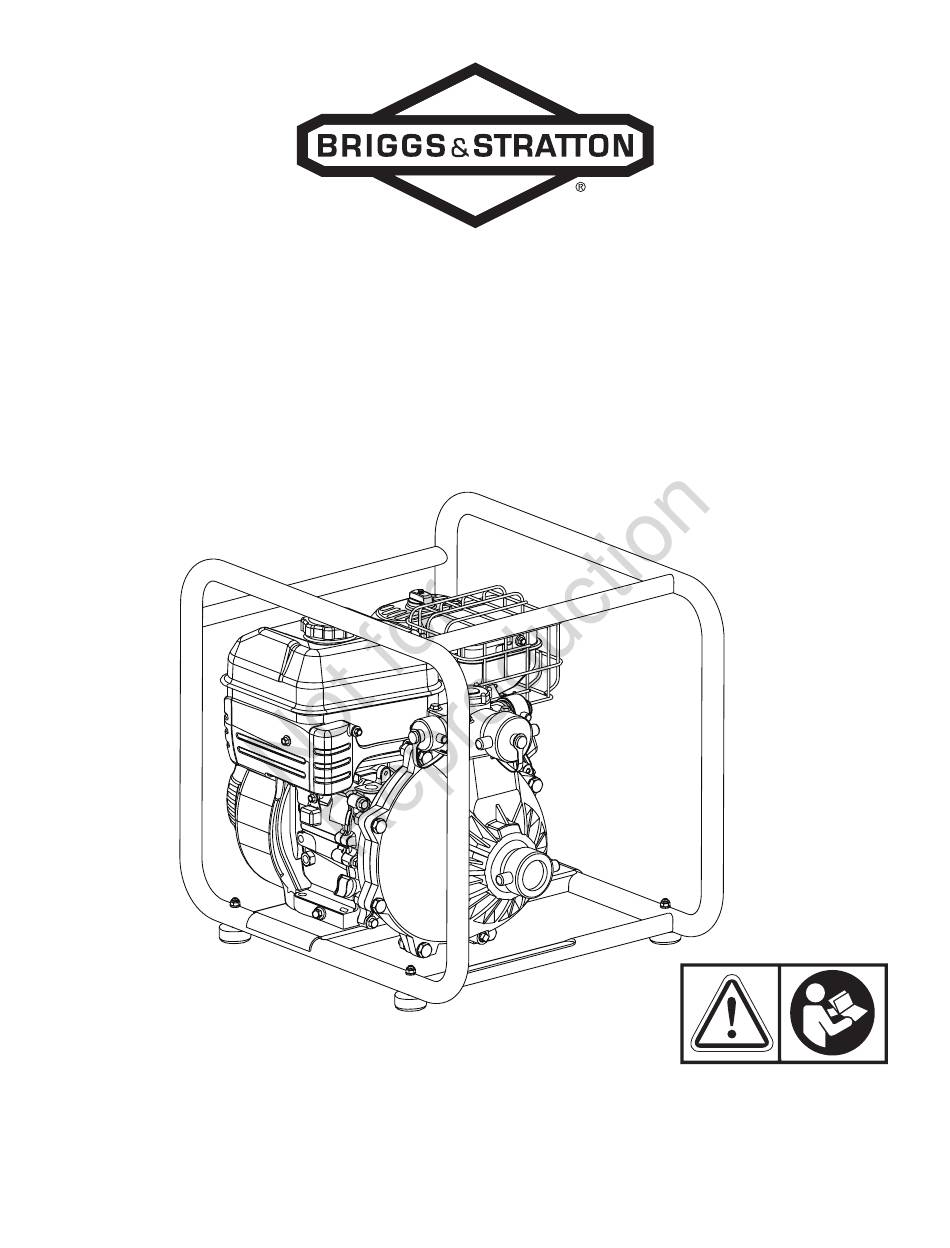

- Page 1 High Pressure Water Pump Operator’s Manual Product may vary from images shown. BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC MILWAUKEE, WISCONSIN, U.S.A. Original Instruction Manual No. 80012091 Revision A...
- Page 2 TANK FUEL BRIGGSandSTRATTON.COM...
-
Page 4: Table Of Contents
Table of Contents Important Safety Instructions ........5 Features &... -
Page 5: Important Safety Instructions
Important Safety Instructions WARNING POISONOUS GAS HAZARD. Engine exhaust contains carbon monoxide, a poisonous gas SAVE THESE INSTRUCTIONS - This manual that could kill you in minutes. You CANNOT see it, contains important instructions that should be followed smell it, or taste it. Even if you do not smell exhaust fumes, during water pump operation. - Page 6 NOTICE Any attempt to crank or start the engine before it WARNING Use of water pump could create puddles has been properly serviced with the recommended oil will and slippery surfaces causing you to fall resulting in result in equipment failure. death or serious injury.
-
Page 7: Features & Controls
Features & Controls Read entire operator’s manual before you attempt to assemble or operate your new water pump. Compare the illustrations with your water pump, to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. A - Air Cleaner —... -
Page 8: Assembly
Assembly Add Fuel Figure Read entire operator’s manual before you attempt Fuel must meet these requirements: to assemble or operate your new water pump. • Clean, fresh, unleaded petrol. Every effort has been made to ensure that information • A minimum of 87 octane/87 AKI (91 RON). For high in this manual is accurate and current. -
Page 9: Operation
Operation High Altitude At altitudes over 1524 meters (5,000 feet), a minimum 85 octane / 85 AKI (89 RON) gasoline is If you have any problems operating your water pump, acceptable. To remain emissions compliant, high please contact the store at which you purchased the altitude adjustment is required. - Page 10 • Keep strainer out of sand or silt - place in bucket or What is “Head”? Figure on stones. Head refers to the height of a column of water that can • DO NOT let pump run dry or damage to seals may result. be delivered by the discharge of the pump.
-
Page 11: Maintenance
General Recommendations Stopping the Water Pump Figure Regular maintenance will improve the performance 1. Move engine speed lever (A) to SLOW ( ) position. and extend the life of the water pump. See any WARNING Fuel and its vapors are extremely authorized Briggs &... - Page 12 Engine Maintenance Figure Changing Engine Oil If you are using your water pump under extremely WARNING Unintentional sparking could cause dirty or dusty conditions, or in extremely hot weather, fire or electric shock resulting in death or change the oil more often. serious injury.
- Page 13 WARNING Exhaust heat/gases could ignite WARNING Fuel and its vapors are extremely combustibles, structures or damage fuel tank flammable and explosive which could cause causing a fire, resulting in death or serious injury. burns, fire or explosion resulting in death or Contact with muffler area could cause burns serious injury .
-
Page 14: Troubleshooting
Troubleshooting Problem Cause Correction No pump output or 1. Pump not primed. 1. Fill pump chamber with water and prime low pump output pump. when water pump is 2. Suction hose restricted, collapsed, 2. Replace suction hose. running. damaged, too long, or diameter too small. -
Page 15: Warranties
BRIGGS & STRATTON PRODUCTS WARRANTY POLICY January 2014 LIMITED WARRANTY Briggs & Stratton warrants that, during the warranty period specified below, it will repair or replace, free of charge, any part that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for and is subject to the time periods and conditions stated below. -
Page 16: Product Specifications
High Pressure Water Pump Product Specifications Model 073046 Model 073047 Water Pump Specifications Water Pump Specifications Suction Port Diameter ....38 mm (1.5 in) Suction Port Diameter ....
