FORM MS–5507–02/04/2004
REPLACES FORM MS–5507–03/17/2003
FILE IN SECT. 2 OF SERVICE MANUAL
AC0201
Illustrated Parts List
Model Series
AC0201

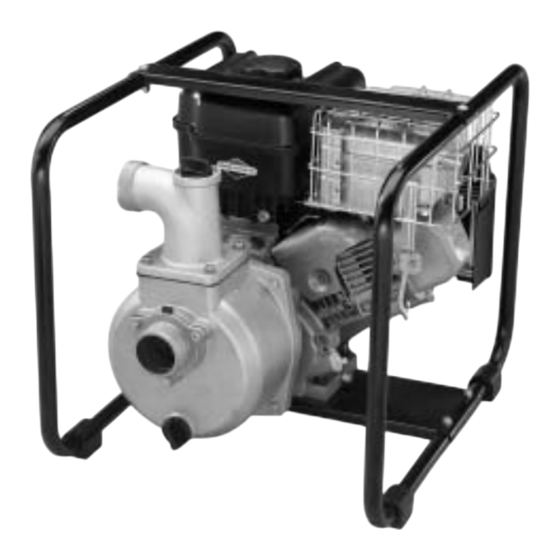

3" Water Pump
COPYRIGHT by BRIGGS & STRATTON CORPORATION
PRINTED IN U.S.A.
All rights reserved. No part of this material may be reproduced or transmitted,
in any form or by any means, electronic or mechanical, including photocopying,
recording or by any information storage and retrieval system, without permission
in writing from Briggs & Stratton Corporation.
Advertisement
Related Manuals for Briggs & Stratton AC0201 Series
Summary of Contents for Briggs & Stratton AC0201 Series
-
Page 1: Illustrated Parts List
FORM MS–5507–02/04/2004 REPLACES FORM MS–5507–03/17/2003 FILE IN SECT. 2 OF SERVICE MANUAL AC0201 Illustrated Parts List Model Series AC0201 3” Water Pump COPYRIGHT by BRIGGS & STRATTON CORPORATION PRINTED IN U.S.A. All rights reserved. No part of this material may be reproduced or transmitted,... - Page 2 AC0201 5009 1058 OWNER’S MANUAL 5006 5010 For Engine Service Information, Contact Engine Manufacturer. Non–Serviced Part 5507 –2 5007 5008 5012 5005 5014 PUMP OVERHAUL KIT 5015 5011 Assemblies include all parts shown in frames. 5003 1059 5015 5004 5013...
- Page 3 865093 Volute 5006 865095 Flange–Inlet 5007 865097 Drain–Water 5008 865099 Flange–Outlet 5009 865101 Strainer–Water 5010 865103 Coupling–Water Assemblies include all parts shown in frames. AC0201 REF. PART DESCRIPTION 5011 865105 Screw (Inlet Flange) 5012 865107 Screw (Outlet Flange) 5013 865109 Kit–Screw/Nut...
