CyberData 011404 Installation Quick Reference page 2

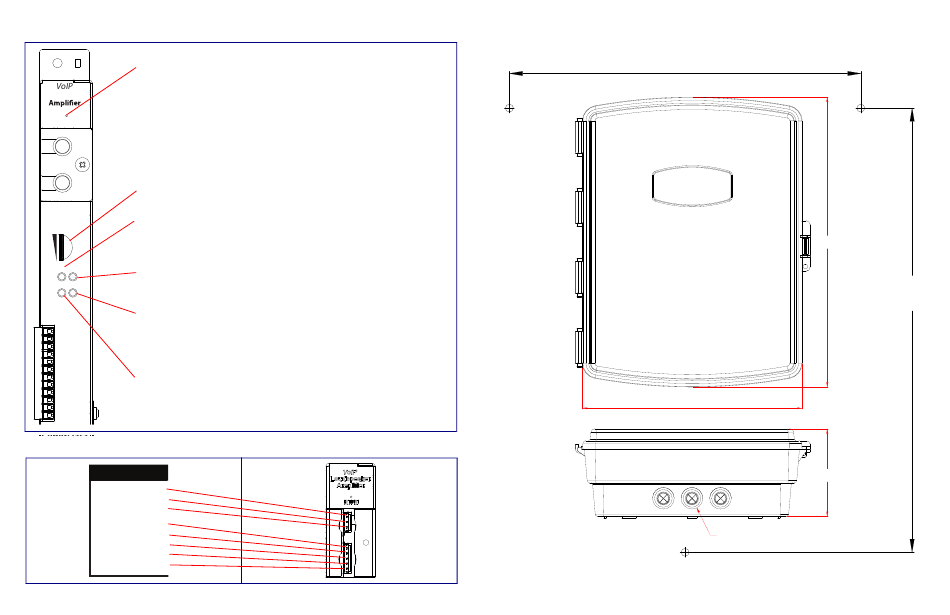

Features
RTFM Switch
To broadcast the device's current IP address, press and hold the RTFM switch for a couple
of seconds and then release it.
Loudspeaker
To restore the factory defaults, complete the following steps:
RTFM
1. Press and hold the RTFM switch until you hear the device announce the words,
"restoring defaults" and "rebooting".
2. Release the RTFM switch. The device will be restored to the factory default settings.
Speaker Volume
Speed (SPD) LED (AMBER)
Volume
The Speed (SPD) LED illuminates
or is off for a 10MB link when the network link to the device is established.
SPD Link/Act.
Link/Activity (Link/Act.) LED (GREEN)
The GREEN Link/Activity (Link/Act.) LED blinks to indicate network traffic.
PWR Status
Status LED (GREEN)
The GREEN Status LED illuminates after supplying power to the device.
Power (PWR) LED (GREEN/BLUE)
The Power (PWR) LED is
and BLUE during high power mode (
*See the Operations Guide for more information about the features in this section.
Connections Behind the Port Cover
CLASS II WIRING
Chassis Gnd - 3
Mic In - 2
GND - 1
Strobe CLK - 5
Strobe Data - 4
GND- 3
Strobe Power - 2
GND - 1
© 2016, CyberData Corporation, ALL RIGHTS RESERVED
AMBER for a 100Mb link
GREEN in low power mode ( 802.3af)
802.3at) .
931238A Quick Reference
