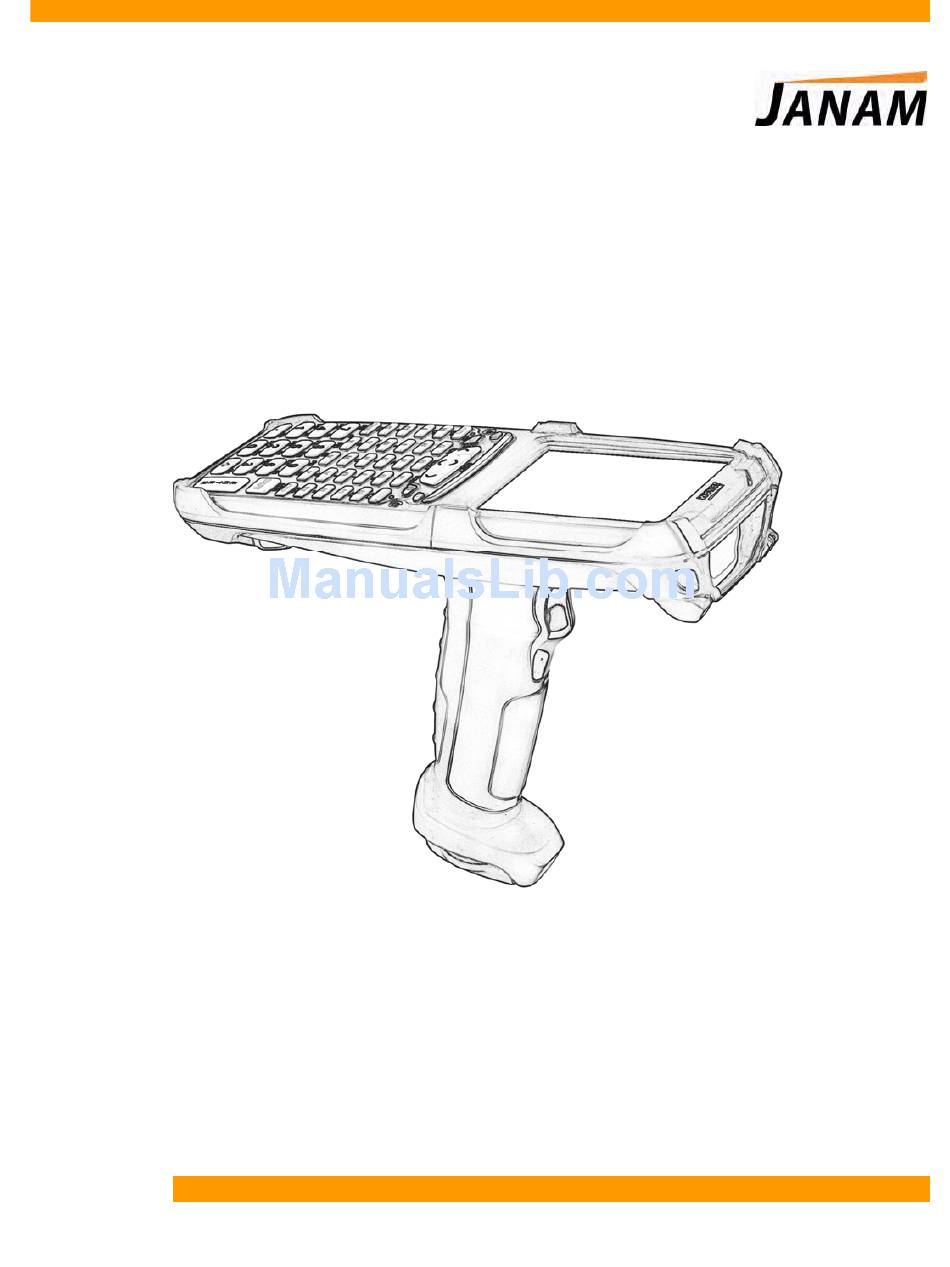

XG100WM User Guide
Version 4
April, 2012

Advertisement

Table of Contents
loading

Related Manuals for Janam XG100WM Series

Summary of Contents for Janam XG100WM Series

  • Page 1 XG100WM User Guide Version 4 April, 2012...
  • Page 2 6’ drops to concrete on all sides across a wide temperature range and 2,000 tumbles in a rotating test chamber. Further enhancing its value, the XG100WM features integrated 1D barcode scanning as well as built-in 2D barcode scanning capability. Janam’s 2D scanning solution enables users to upgrade barcode scanning capability from 1D to 1D/2D on any device at any time with a simple firmware upgrade.

  • Page 3: Hardware Overview

    XG100WM User Manual Hardware Overview Top View Microphone 2 Programmable keys LED Indicators Escape key Power On/Off Function key Control key Navigation keys Syncing/Charging Connector Front View Rear View Syncing/Charging Connector Barcode Scan Window Rear LED Indicators Scan Trigger Gun Handle...

  • Page 4: Bottom View

    XG100WM User Manual Bottom View Battery Speaker (on bottom housing) Battery Lock Battery Chamber MicroSD Card Slot Compartment Rear LED Indicators Upper Handstrap Connectors Janam Technologies LLC...

  • Page 5: Side View

    XG100WM User Manual Side View Scan Window Upper Handstrap Scan Connectors (left and Trigger right side) Handle/ Lower Handstrap Battery Connector Chamber Base of Battery & Battery Release Plunger Rear-Bottom Sectional View MicroSD Memory MicroSD Memory Card Door Screws Syncing/Charging...

  • Page 6: Get Started

    Janam XG Series libraries, including scanning, imaging and hardware utilities. The development kit, which can be downloaded from Janam’s Partnerzone site (login required) is designed for use with Microsoft® Windows Mobile 6 SDK or Microsoft Visual Studio 2005.
  • Page 7 XG100WM User Manual Attach the Handstrap to the XG100WM 1. Push the long-looped end of the handstrap through the left- or right-side upper handstrap connector (at the back of the handheld). 2. Push the metal hook (the other side of handstrap) through the loop that comes through the upper handstrap connecter in step 1.
  • Page 8 XG100WM User Manual Attach the Stylus Tether to the Handstrap 1. Push the loop of the loose end of the stylus tether through one of the slits in the handstrap adjustment slider. 2. Push the stylus (now attached to the stylus tether) through the stylus tether’s loop that comes through the slit on the adjustment slider.

  • Page 9: Install The Battery

    XG100WM User Manual Install the Battery IMPORTANT Battery Warning! CAUTION: Use only Janam-approved batteries. There is the risk of explosion if battery is replaced by an incorrect type. Always dispose of used batteries according to the instructions. INSTALLING THE BATTERY: Insert the top of battery into chamber opening and gently slide battery into battery chamber.

  • Page 10: Battery Charger

    To calibrate, simply follow the on-screen instructions and remember to save your settings. Note: If your XG100WM came pre-loaded with a custom software application, a welcome utility may not appear. If this happens, follow the on-screen instructions. Janam Technologies LLC...

  • Page 11: Understanding The Desktop

    XG100WM User Manual Understanding the Desktop Command bar Your XG100WM mobile computer desktop has following features. What do the Status Icons Mean? Janam Technologies LLC...

  • Page 12: Locate Back Panel Components

    IMPORTANT NOTE! Always use the stylus for tapping or making strokes on the handheld computer screen. DO NOT use a pen, pencil or any other object on the touch screen of the XG100WM. Recalibrate the Screen The first time you start the Janam XG100WM handheld computer, setup instructions will appear on screen.

  • Page 13: Customize The Today Screen

    XG100WM User Manual Customize the Today Screen The Today screen can be customized by tapping Start menu > Settings > Today. To choose a background/theme: On the Appearance tab, select the desired theme for the background. To choose add a custom background image:...

  • Page 14: Change Language And Regional Settings

    Change the order by tapping the item and then tap move up or move down. Change Language and Regional Settings Your Janam XG100WM ships with pre-set regional, language and input settings. To change these settings, follow the directions below. The style in which numbers, currency, dates and times are displayed is specified in regional settings.

  • Page 15: Change The Date And Time Display

    XG100WM User Manual Change the Date and Time Display To set the time and date: 1. Tap Start menu> Settings > System tab > Clock & Alarms. 2. Select the correct Time Zone, and change the Date or Time. 3. Choose Alarms tab to set regular reminders.

  • Page 16: Owner Identification And Password Protection

    XG100WM User Manual Owner Identification and Password Protection 1. Tap Start menu > Settings > Personal tab > Owner Information. 2. On the identification tab, enter your personal information. To display owner information on the today screen: 1. Tap Start menu > Settings > Personal tab > Owner Information.

  • Page 17: To Protect Your Device With A Password

    5. Tap OK. You will be prompted to enter your password the next time you turn on your Janam XG100WM. IMPORTANT NOTE! Each time a wrong password is entered, the time the device takes to respond will get longer and longer until the device appears to be not responding.

  • Page 18: Battery Power

    XG100WM User Manual Battery Power To make the battery last longer: 1. Tap Start menu > Settings > System tab > Power. 2. On the Advanced tab, specify when your device turns off to conserve battery power. For optimum conservation, specify 3 minutes or less.

  • Page 19: To Adjust The Speed For Scrolling

    XG100WM User Manual To adjust the speed for scrolling: 1. Tap Start menu > Settings > Personal tab > Buttons > Up/Down Control tab. 2. Do one of the following: • Under delay before first repeat, move the slider to...

  • Page 20: Device Name

    XG100WM User Manual Device Name Your XG100WM may already be named, which is used to identify the device in the following situations: • Synchronizing with a PC • Connecting to a network • Restoring information from a backup IMPORTANT NOTE! If you synchronize multiple devices with the same PC, each device must have a unique name.

  • Page 21: Open Applications

    XG100WM User Manual Open Applications To open an application: 1. Tap Start menu > Programs. 2. Select the application you want to open. Remove Applications To remove a program: 1. Go to Start menu > Settings > Remove Program. 3. Select the program you want to delete, and click Remove.
  • Page 22 XG100WM User Manual Device Locked/Unlocked To lock the device: 1. Tap Start menu > Today. 2. Tap Device unlocked. The lock icon will change to a closed lock. 3. When the device is locked, keypad and touch screen will not receive user input.
  • Page 23 4. Press and release Power key. 5. Release CTRL key and FUNC key after 10 seconds. 6. Device reboots, Janam splash screen appears. After the reboot, the calibration screen appears. 7. Complete the calibration using a stylus and the Today screen appears.

  • Page 24: Barcode Scanning Demonstration And Setup

    7. Tap OK to save. 8. Select Scan 9. Point the scanner at a barcode, and press any of the barcode scan trigger buttons on the XG100WM. The results will display after a successful scan. Janam Technologies LLC...

  • Page 25: Enable The Scanwedge Feature

    API or by using the Janam Barcode Test program. Unlock 2D scanning All of Janam’s mobile computers can be upgraded in the field to read both 1D and 2D barcodes with a simple firmware upgrade (Part Number 2D-XP-1). With each upgrade, a key code is provided that unlocks 2D scanning capability on the device.

  • Page 26: Enable Scancapture Feature

    Intel – for intelligent signature capture. To take a single image: 1. Click Single button. 2. Aim the XG100WM at the subject, hold the device steady and press the Single button. The unit will function as a digital camera and take a single picture.
  • Page 27 To use continuous preview: 1. Select Cont or continue button. 2. Aim the XG100WM at the subject, hold the device steady and press the Cont button. This will start video record. 3. Press the Cont button again to stop video recording and display a single image.
  • Page 28 XG100WM User Manual To use intelligent capture: This function is designed to work with a custom barcode for Intelligent Signature Capture. A code 128 barcode is used to inform the device that a signature is to be captured. The Intelligent Signature feature will find the barcode in the image, scale it, remove the extra information, and display the signature on the screen.

  • Page 29: Enter Data

    Enter Data Entering information on the XG100WM You can enter data into your Janam XG100WM handheld computer several ways: Using the Barcode Scanner You can capture data and images by scanning barcodes into the handheld computer. See chapter 5 for details.

  • Page 30: Using The Onscreen Keyboard

    XG100WM User Manual Keyboard Shortcuts When you use the onscreen keyboard, you can use shortcut keys as an alternative to menu commands when working in programs on your device. Using the Onscreen Keyboard To enter text: You can enter text by tapping keys on the keyboard that is displayed on the screen. The onscreen keyboard is available when text entry is possible.
  • Page 31 XG100WM User Manual (a) Using Input Selector arrow (b) Using Input on Settings screen Janam Technologies LLC...
  • Page 32 XG100WM User Manual To use ClearType for screen text: 1. Tap Start menu > Settings > System tab > Screen > ClearType tab. 2. Select the enable ClearType check box. To increase or decrease the size of text on the screen: 1.
  • Page 33 XG100WM User Manual To change word completion options: 1. Tap Start menu > Settings > Personal tab > Input. 2. Tap the Word Completion tab, select the Suggest words when entering text check box, and specify the settings. 3. Tap OK.

  • Page 34: Using Block Recognizer

    XG100WM User Manual To change input panels: 1. The standard alpha keyboard is the default. 2. For numeric, tap on 123 keyboard in the upper left corner of the main keyboard. 3. For international, tap on áü key in the lower left corner of the alpha keyboard.

  • Page 35: Using Letter Recognizer

    XG100WM User Manual Using Letter Recognizer With letter recognizer, you can write individual letters, numbers and punctuation and have them converted into typed text. To enter text using letter recognizer: 1. From a program, tap the Input Selector arrow and then Letter Recognizer.
  • Page 36 XG100WM User Manual To set transcriber startup options: 1. From a program, tap on the transcriber toolbar. 2. On the Quick Settings tab, set any of the following options: • In recognition, the language transcriber recognizes Standard English (Default). •...
  • Page 37 XG100WM User Manual To write with transcriber: Transcriber allows you to write in cursive, print or a combination of both. 1. Within a program, position the cursor where you want text to appear. 2. Use the stylus to write anywhere on the screen. The writing will be converted to text shortly after you lift the stylus from the screen.
  • Page 38 XG100WM User Manual To create shorthand for entering words: 1. From a program, tap on the transcriber toolbar. 2. On the Advanced tab, under Shorthand, tap Settings. 3. In the Transcriber: Shorthand dialog box, tap Add. 4. Tap Text expansion, and tap Next.
  • Page 39 XG100WM User Manual To create shorthand that will open a program: 1. From a program, tap on the transcriber toolbar. 2. On the Advanced tab, under Shorthand, tap Settings. 3. In the Transcriber: Shorthand dialog box, tap Add. 4. Tap Run Program, and tap Next.
  • Page 40 XG100WM User Manual To use handwriting recognition alternates: 1. From a program, draw a line across the word you want to correct or add to the dictionary. 1. After you lift the stylus, the line will disappear and the word will be highlighted.
  • Page 41 XG100WM User Manual To match letter shapes to handwriting: Use the letter shapes feature to match your handwriting to a series of letter shapes recognized by transcriber or to learn methods of writing characters that transcriber will recognize more easily.
  • Page 42 XG100WM User Manual To change the text input method: Depending on your preference, you can use the onscreen keyboard or a handwriting recognition feature such as Block Recognizer, Letter Recognizer, and Transcriber to enter text in programs. 1. Tap Start menu > Settings > Personal tab > Input.

  • Page 43: Exchange And Update Data Using Activesync

    XG100WM and PC directly using a cable or cradle or use a modem or network. Create a User Profile You can create a user profile to load data into a Janam XG100WM without associating that data with a user name.
  • Page 44 1. On your PC, select Start menu > Programs > ActiveSync. Microsoft ActiceSync Version 4.5.0 (Build 5096) is used in this manual. 2. Connect your Janam XG100WM to your PC. 3. Microsoft ActiveSync dialog box prompts. Tap OK to proceed.
  • Page 45 XG100WM User Manual 6. Select the Files you want to sync between your mobile device and your computer. Then tap Next. 7. Note: when you select Files, an additional screen appears (shown below) with further information. Read carefully before proceeding, because your files may be converted.
  • Page 46 Finish. 11. Your partnership setup is completed. Microsoft ActiveSync window appears with the device name XG100WM (in this example) and status shows as Synchronized. File synchronization will be carried out automatically when there is file added or remove from the \My Document folder of the device.
  • Page 47 XG100WM User Manual 12. To add/remove files to the device, tap on the Microsoft ActiveSync window. File Synchronization Settings window appears. Tap on Add button to add files to \My Documents folder of the device and Remove button to delete files \My Documents folder of the device.
  • Page 48 Click Yes to proceed. 4. Microsoft ActiveSync window shows No partnerships. 5. You will need to re-establish the partnership when you connect your Janam XG100WM to your PC, or you will need to connect as a guest. Janam Technologies LLC...
  • Page 49 XG100WM User Manual To set up a guest partnership: 1. Connect your Janam XG100WM to your PC. 2. Microsoft ActiveSync dialog box prompts. Tap OK to proceed. 3. Synchronization Setup Wizard window appears. Tap Cancel to setup a Guest connection.

  • Page 50: Partnership Settings

    XG100WM User Manual Partnership Settings To change partnership connection settings: 1. Click the ActiveSync icon in your Windows system tray (bottom right corner of taskbar). 2. Choose File > Connection Settings from the ActiveSync manager menu. 3. The Connection Settings window appears. Tap OK.

  • Page 51: Wireless Local Area Network Access

    XG100WM User Manual 802.11 Wireless Configuration The following section details the basic 802.11 wireless configuration for your Janam XG100WM. Wireless local area network access To set up network profile: 1. Tap Start menu > Settings > Connections tab > Wireless Manager 2.
  • Page 52 XG100WM User Manual By default, Active Profile is set to “ThirdPartyConfig”. 4. Tap Admin Login. 5. Enter the password SUMMIT Note: Use all uppercase letters for the password. Click Profile tab and double tap Scan button to search for nearby AP’s.
  • Page 53 XG100WM User Manual 8. Click Yes button to complete the new profile configuration. 9. On the Main tab change active profile to the new profile created in the last step. Eg: SOFTWARE 10. Click tab Status tab to check the connection status.
  • Page 54 There are several ways to set up your computer for wireless access, and the following section details the general instructions needed to set up Bluetooth on your Janam XG100WM. Please note that complex or custom installations may require additional expertise from Janam’s technical and support team.

  • Page 55: To Create A Bluetooth Partnership

    XG100WM User Manual Bluetooth partnerships A partnership is a relationship that you create between your XG100WM and another Bluetooth device to securely exchange information. Creating a partnership involves entering the same Bluetooth passcode on both devices. Once a partnership is created, the devices need only have Bluetooth turned on to exchange information;...

  • Page 56: To Rename A Bluetooth Partnership

    XG100WM User Manual To Rename a Bluetooth Partnership 1. Tap Start menu > Settings > Connections tab. 2. Tap Bluetooth > Devices tab. 3. Tap the partnership to be renamed. A pop-up menu appears. Select Edit. 4. Enter a new name for the partnership and tap Save.

  • Page 57: Bluetooth Beam

    XG100WM User Manual Bluetooth Beam To Send a File Via Bluetooth Beam 1. Tap and hold on the file you want to beam to other device. 2. A pop-up menu appears. Select Beam File. 3. Nearby Bluetooth devices are displayed on the list.

  • Page 58: Bluetooth Virtual Com Ports Overview

    XG100WM User Manual Bluetooth virtual COM ports overview Some programs can connect only though a serial (COM) port. This can be true even if the device itself is Bluetooth-enabled. To make it possible for such programs to use a Bluetooth connection, you must set up a virtual COM port.
  • Page 59 XG100WM User Manual To set up an outgoing Bluetooth COM port The list item new outgoing port will be available only if one or more Bluetooth-connected devices supports serial (COM) connections. 1. Make sure that your device is currently connected to the other device via Bluetooth.

  • Page 60: Regulatory And Maintenance

    For further information, please contact: Janam Technologies; 100 Crossways Park West, Suite 105, Woodbury, NY 11797. Janam Technologies shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive.
  • Page 61 XG100WM User Manual available at local FCC regional offices. Janam is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connective cables and equipment other than those specified by our company. The correction is the responsibility of the user.

  • Page 62: Other Electrically Powered Devices

    The radio in the XG Series terminal operates on the same frequency band as a microwave oven. Therefore, if you use a microwave within range of the XG100WM you may notice performance degradation in your wireless network. However, both your microwave and your wireless network will continue to function.

  • Page 63: Battery Warning

    DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Use only Janam approved batteries such as the BAT-G1-001 and recharge batteries using only Janam approved chargers. Use only easily accessible wall outlets that are easily reached with the length of the supplied power cables.
