Fitting the protective sleeve

CAUTION
Infection from contaminated protective
sleeve
Failure to replace the protective
sleeve for the handle can lead to
a transmission of illnesses.
Use a new protective sleeve for
E
the handle for each customer.
ATTENTION
Damage to drive caused by fluid
If fluid gets inside the drive or on
the connection, this can corrode
the electrical and mechanical compo-
nents.
Always use one protective sleeve
E
(1) for the handle and a second
protective sleeve (2) for the drive
and connection cable as described
below.
1
2
Cheyenne HAWK, HAWK SPIRIT & HAWK THUNDER

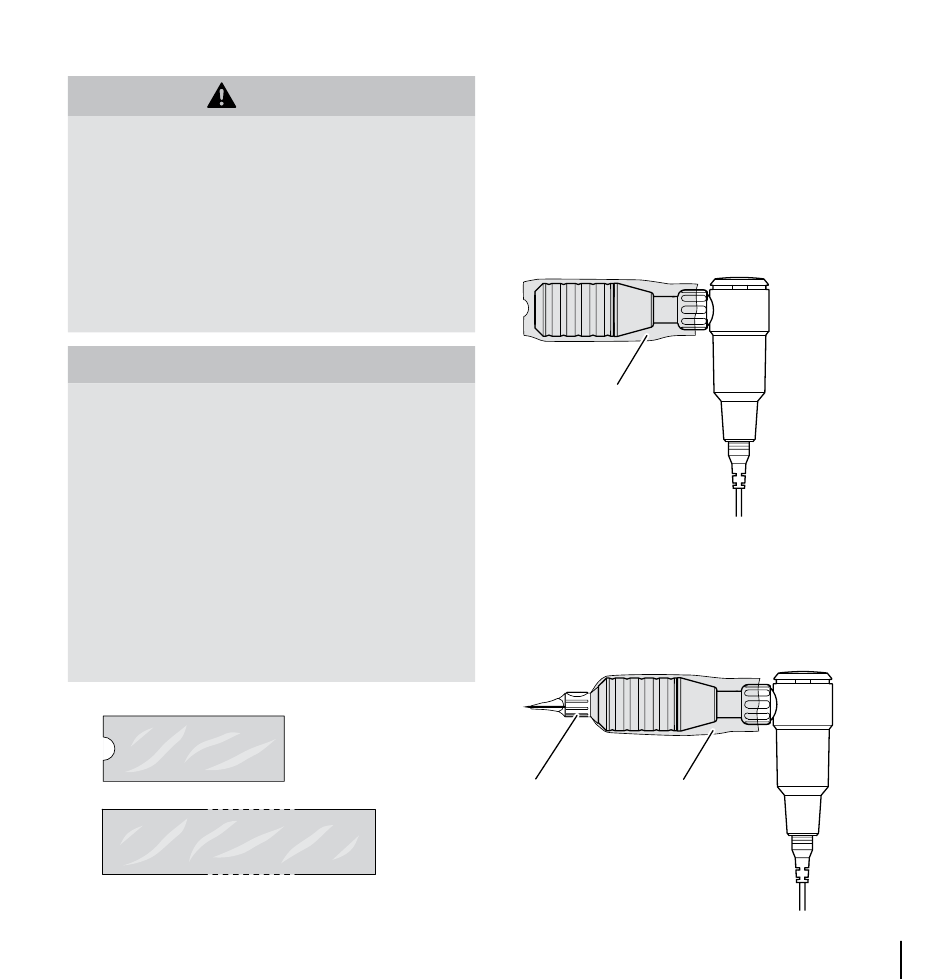

In order to fit the protective sleeve (1)
on the handle:
If already
E
the safety cartridge from the handle
(see chapter "5.5 Replacing the safety
cartridge" on page 43).
Slide the protective
E
completely over the connecting cable.
1
Insert the safety cartridge (3) through
E
the hole of the protective sleeve (1)
into the handle (see chapter "5.5
Replacing the safety cartridge" on
page 43).
3 1
inserted: Remove
sleeve (1)
