Assembling And Disassembling The Handle And Drive - Cheyenne HAWK Operating Instructions Manual

Check if your tattooing machine has
E
become heavily contaminated by the
return flow of inks or bodily fluids.
In such cases, perform the steps
described in the chapter "7 Cleaning
and maintaining
machine" on page 46.
Wipe down the connecting cables,
E
the drive and the handle with a soft
cloth moistened with disinfectant.
5.2 Assembling and disassembling
the handle and drive
Handles are available in different diam-
eters. The assembly procedure is the
same for each.

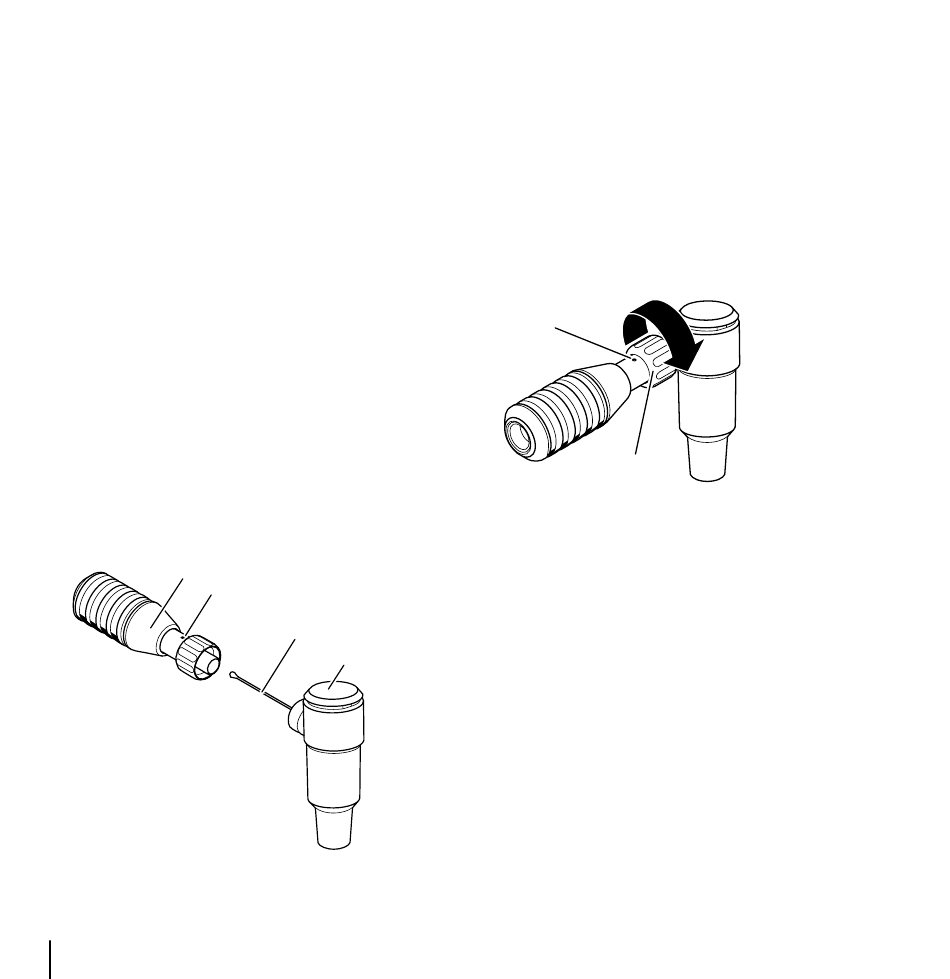

For assembly:
Fit the piston (3) in the handle (1).
E
1
40
the tattooing
2
3
4
Cheyenne HAWK, HAWK SPIRIT & HAWK THUNDER
Adjust the angle between the drive (4)
E
and index (2) so that your tattooing
machine is comfortable in your hand.
The index marks the position of
the upper and lower part of the safety
cartridge.
Tighten the fixing nut (5) to the me-
E
chanical stop without changing the
adjusted angle.
2
5
Ensure that the index (2) does not
E
turn while you turn the handle.
Tighten the fixing nut as necessary.
For disassembly:
Unscrew the fixing nut.
E
Remove the handle from the drive.
E
The piston comes out of the handle.
