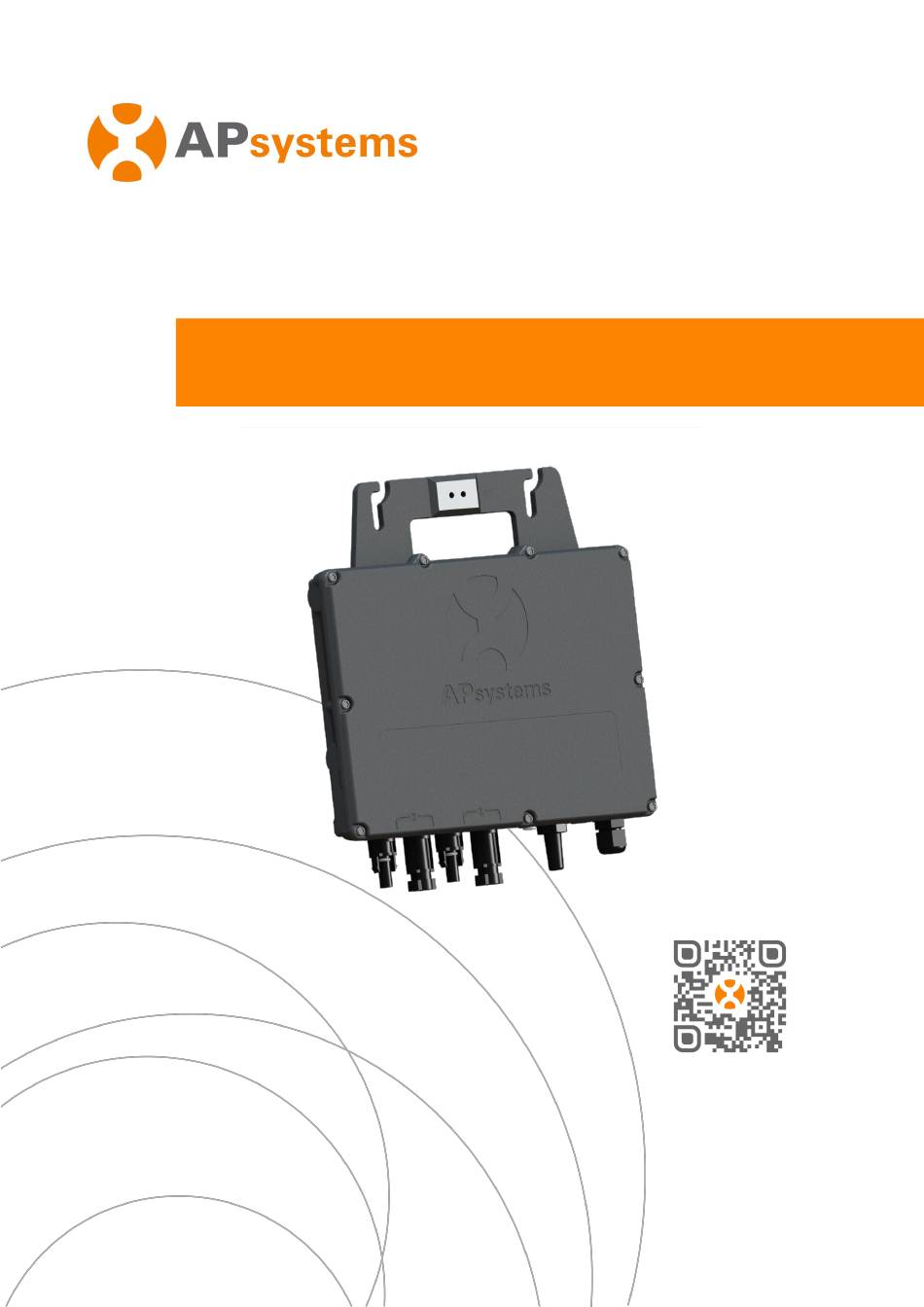

Installation / User Manual
(For EMEA)
ALTENERGY POWER SYSTEM Inc.
emea.APsystems.com
APsystems
Cypresbaan 7, 2908 LT,Capelle aan den Ijssel The Netherlands
Tel: +31-10-2582670
EMAIL: info.emea@APsystems.com
APsystems
Rue des Monts dor ZAC de Folliouses Sud-Les Echets 01700 Miribel, France
TEL: +33-481-65-60-40

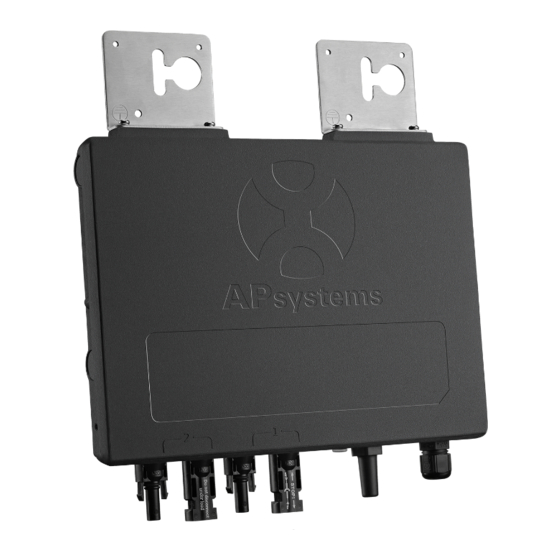

APsystems YC600 Microinverter
EMAIL:info.emea@APsystems.com
Rev 3.3
Please scan the QR code to get
mobile app and more support
to help the installation.
© All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YC600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for APsystems YC600

Summary of Contents for APsystems YC600

  • Page 1 Installation / User Manual APsystems YC600 Microinverter Rev 3.3 (For EMEA) ALTENERGY POWER SYSTEM Inc. emea.APsystems.com Please scan the QR code to get mobile app and more support APsystems to help the installation. Cypresbaan 7, 2908 LT,Capelle aan den Ijssel The Netherlands Tel: +31-10-2582670 EMAIL: info.emea@APsystems.com...

  • Page 2: Table Of Contents

    4.3.3 Step 3 - Attach the APsystems Microinverters to the Racking............9 4.3.4 Step 4 - Ground the systems......................10 4.3.5 Step 5 - Connect the APsystems microinverter to AC bus cable............10 4.3.6 Step 6 - Install a Bus Cable End Cap at the end of AC bus cable............11 4.3.7 Step 7 - Connect APsystems Microinverters to the PV Modules............

  • Page 3: Important Safety Instructions

    APsystems Microinverter system and the solar-array. Be aware that the case of the APsystems Microinverter is the heat sink and can reach a  temperature of 80°C. To reduce risk of burns, do not touch the case of the Microinverter.

  • Page 4: Radio Interference Statement

    A) Relocate the receiving antenna and keep it well away from the equipment. B) Consult the dealer or an experienced radio / TV technical for help. Changes or modifications not expressly approved by the party responsible for compliance may void the user’s authority to operate the equipment. YC600 Installation/User Manual...

  • Page 5: Symbols Replace Words On The Equipment, On A Display, Or In Manuals

    EMC personnel and is authorized to energize, ground, and tag equipment, systems, and circuits in accordance with established safety procedures. The inverter and complete system may only be commissioned and operated by qualified personnel. YC600 Installation/User Manual...

  • Page 6: Apsystems Microinverter System Introduction

    2.APsystems Microinverter System Introduction The APsystems Microinverter is used in utility-interactive grid-tied applications, comprised of three key elements: APsystems Microinverter  APsystems Energy Communication Unit (ECU)  APsystems Energy Monitor and Analysis (EMA) web-based monitoring and analysis  system Y C6 00...
  • Page 7 The distributed APsystems Microinverter system ensures that no single point of system failure exists across the PV system. APsystems Microinverters are designed to operate at full power at ambient outdoor temperatures of up to 149°F (65°C). The inverter case is designed for outdoor installation and complies with the IP67 environmental enclosure rating.

  • Page 8: Apsystems Microinverter Yc600 Introduction

    APsystems Microinverters in the form of single-phase grid to achieve three-phase grid, and operates with most 60 and 72 cell PV modules. Contact APsystems Customer Support for checking compatibility.For more information, please see the Technical Data page (p.18) of this manual.

  • Page 9: Apsystems Microinverter System Installation

    4.APsystems Microinverter System Installation A PV system using APsystems Microinverters is simple to install. Each microinverter easily mounts on the PV racking, directly beneath the PV module(s). Low voltage DC wires connect from the PV module directly to the microinverter, eliminating the risk of high DC voltage.

  • Page 10: Installation Procedures

    Forbidden to hand carry the inverter through AC cable. 4.3.3 Step 3 - Attach the APsystems Microinverters to the Racking a. Mark the location of the microinverter on the rack, taking into acount the position of the PV module junction box or any other obstructions.

  • Page 11: Step 4 - Ground The Systems

    Figure 3 4.3.5 Step 5 - Connect the APsystems microinverter to AC bus cable Push the microinverter AC connector into the trunk cable connector until you hear a "click". Try to remove it to check that it is properly locked.

  • Page 12: Step 6 - Install A Bus Cable End Cap At The End Of Ac Bus Cable

    Figure 8 Body Seal 4.3.7 Step 7 - Connect APsystems Microinverters to the PV Modules Figure 9 When connecting the 1st module, the LED of the microinverter must flash three times in green. This happens as soon as the cables are plugged in, to show that the microinverter is working properly.

  • Page 13: Step 8 - Complete The Apsystems Installation Map

    PV connections. a. Each APsystems Microinverter has removable serial number labels. Peel labels off, affix one to the respective location on the APsystems installation map, and fill in 1,2 in the label below,according to the layout on the roof.

  • Page 14: Step 9 - Place A Warning Notice

    The APsystems Installation Map is a diagram of the physicallocation of each microinverter in your PV The APsystems Installation Map is a diagram of the physical location of each microinverter in your PV installation. installation.Each APsystems microinverter has a removable serialnumber labellocated on the mountingplate.
  • Page 15 Once the ECU is plugged in and set up, it recognizes the microinverters, then the LED flashes green every 10 seconds. 5. The APsystems Microinverters will start to send performance data to the ECU. The time required for all the microinverters in the system to report to the ECU will vary with the number of microinverters in the system.

  • Page 16: Troubleshooting

    ② . Always disconnect AC power before disconnecting the PV module wires from the APsystems Microinverter. ③. The APsystems Microinverter is powered by DC current of the PV module. AFTER reconnecting DC, please check that the LED behaves as in 6.1.1 above.

  • Page 17: Troubleshooting A Non-Operating Apsystems Microinverter

    Do not attempt to repair the APsystems Microinverter. In the event of failure of the troubleshooting methods and after validation of the fault by the APsystems technical service, please return the defective microinverter to your distributor for replacement. 6.3 Maintenance No need to Maintenance.

  • Page 18: Replace A Microinverter

    7.Replace a microinverter Follow the procedure to replace a failed APsystems Microinverter A. Disconnect the APsystems Microinverter from the PV Module, in the order shown below: 1. Disconnect the AC by turning off the branch circuit breaker. 2. Disconnect the inverter AC connector from the AC Bus.

  • Page 19: Technical Data

    ①. Be sure to verify the voltage and current specifications of your PV module.It should match with those of the microinverter. Please refer to the datasheet or user manual which can be download from APsystems website emea.APsystems.com. ② . You must match the DC operating voltage range of the PV module with the allowable input voltage range of the APsystems Microinverter.

  • Page 20: Yc600 Microinverter Datasheet

    8.1 YC600 Microinverter Datasheet Region EMEA Model YC600-EU Input Data (DC) Recommended PV Module Power (STC) Range 250Wp-440Wp+ MPPT Voltage Range 22V-48V Operation Voltage Range 16V-55V Maximum Input Voltage Maximum Input Current 12A x 2 Output Data (AC) Maximum Continuous Output Power...

  • Page 21: Wiring Diagram

    9.Wiring Diagram 9.1 Sample Wiring Diagram - Single Phase Figure 14 YC600 Installation/User Manual...

  • Page 22: Yc600（Y） Accessory

    10.YC600（Y） Accessory 10.1 Wiring Diagram 8 AC Connector Male 、 、 C Connector Female 5 Bus Cable 、 Unlock Tool 1 Bus Cable 、 Grid 3 Bus Cable 、 End Cap 4 Bus Cable 、 Y CONN Cap 7 DC Female Connector Cap 、...

  • Page 23: Accessories Summary

    10.2 Accessories Summary Accessories Category Part NO. Name 2322304903 Y3 Bus Cable(2.5mm2,H07RN-F,2m,BN-BU-YL/GN) Bus Cable 2322404903 Y3 Bus Cable(2.5mm2,H07RN-F,4m,BN-BU-YL/GN) AC Branch Extension Cable 2334076132 Y3 Br. Ext-Cable(2.5mm2,H07RN-F,1m,BN-BU-YL/GN) （On demand） Bus Cable End Cap 2060700007 3/4-wire Bus Cable End Cap （Mandatory） Bus Cable Y-CONN Cap 2061702007 Bus Cable Y-CONN Cap （Optional）...
  • Page 24 The APsystems Installation Map is a diagram of the physical location of each microinverter in your PV installation. Each APsystems microinverter has a removable serial number label located on the mounting plate. Peel the label and affix it to the respective location on the APsystems installation map.
