Installation / User Manual

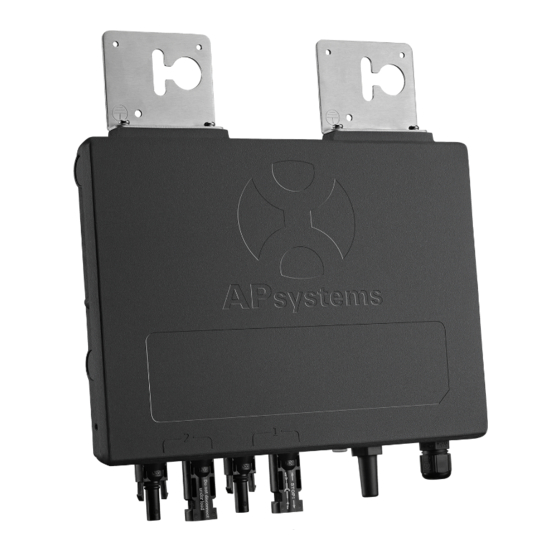

YC600 Microinverter
Rev 1.0
Please scan the QR code to get
mobile app and more support
to help the installation.
ALTENERGY POWER SYSTEM Inc.
WEB: www.APsystems.com
APsystems Australia
Suite 502, 8 Help Street, Chatswood NSW 2067 Australia
TEL: 61 (0)2 8034 6587
EMAIL: info@altenergy-power.com
© All Rights Reserved
(For Australia / New Zealand)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YC600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for APsystems YC600

Summary of Contents for APsystems YC600

  • Page 1 Installation / User Manual YC600 Microinverter Rev 1.0 Please scan the QR code to get mobile app and more support to help the installation. ALTENERGY POWER SYSTEM Inc. WEB: www.APsystems.com APsystems Australia Suite 502, 8 Help Street, Chatswood NSW 2067 Australia TEL: 61 (0)2 8034 6587 EMAIL: info@altenergy-power.com...

  • Page 2: Table Of Contents

    4.3.2 Step 2 - The AC bus distribution ....................9 4.3.3 Step 3 - Attach the APsystems Microinverters to the racking or the PV module frame ....9 4.3.4 Stpe 4 - Connect the APsystems microinverter to AC bus cable ..........10 4.3.5 Step 5 - Install a AC bus protective end cap at the end of AC bus cable ........

  • Page 3: Important Safety Instructions

    APsystems Microinverter system and the solar-array. Be aware that the body of the APsystems Microinverter is the heat sink and can reach a  temperature of 80° C. To reduce risk of burns, do not touch the body of the Microinverter.

  • Page 4: Radio Interference Statement

    A) Relocate the receiving antenna and keep it well away from the equipment. B) Consult the dealer or an experienced radio / TV technical for help. Changes or modifications not expressly approved by the party responsible for compliance may void the user’s authority to operate the equipment. YC600 Installation/User Manual...

  • Page 5: Symbols Replace Words On The Equipment, On A Display, Or In Manuals

    EMC and is authorized to energize, ground, and tag equipment, systems, and circuits in accordance with established safety procedures. The inverter and endues system may only be commissioned and operated by qualified personnel. YC600 Installation/User Manual...

  • Page 6: Apsystems Microinverter System Introduction

    2.APsystems Microinverter System Introduction The APsystems Microinverter is used in utility-interactive grid-tied applications, comprised of three key elements:  APsystems Microinverter  APsystems Energy Communication Unit (ECU)  APsystems Energy Monitor and Analysis (EMA) web-based monitoring and analysis system Meter...
  • Page 7 The distributed APsystems Microinverter system ensures that no single point of system failure exists across the PV system. APsystems Microin-verters are designed to operate at full power at ambient outdoor temper-atures of up to 149° F (65° C). The inverter housing is designed for outdoor installation and complies with the IP67 environmental enclosure rating.

  • Page 8: Apsystems Microinverter Yc600 Introduction

    APsystems Microinverters in the form of single-phase grid to achieve three-phase grid, and operate with most 60 and 72 cell PV modules. For more information, please see the Technical Data page (p.18) of this manual, or sign in APsystems website to obtain a solar panel list which can match with APsystems Microinverters:www.APsystems.com...

  • Page 9: Apsystems Microinverter System Installation

    Special Statement! An AC GFCI device should not be used to protect the dedicated circuit to the APsystems microinverter even though it is an outside circuit. None of the small GFCI devices (5mA-30 mA) are designed for back feeding and will be damaged if back feed. In a similar manner, AC AFCIs have not been evaluated for back feeding and may be damaged if back feed with the output of a PV inverter.

  • Page 10: Installation Procedures

    AC bus to be sure they match.Wrong cabling can damage irreparably the microinverters, such an issue is not covered by the warranty. 4.3.3 Step 3 - Attach the APsystems Microinverters to the racking or the PV module frame a.

  • Page 11: Stpe 4 - Connect The Apsystems Microinverter To Ac Bus Cable

    4.Installation Procedures 4.3.4 Stpe 4 - Connect the APsystems microinverter to AC bus cable Push the microinverter AC connector to the trunk cable‘ connector. Listen for the "Click". Click Figure 4 Best Practice: Use the Bus Cable Unlock Tool of AC Bus to split the connectors.

  • Page 12: Step 5 - Install A Ac Bus Protective End Cap At The End Of Ac Bus Cable

    Figure 8 Seal Body 4.3.6 Step 6 - Connect APsystems Microinverters to the PV Modules Figure 9 When plugging in the DC cables, the Microinverter should immediately blink green three times. This will happen as soon as the cables are plugged in and will show that the Microinverter is functioning correctly.

  • Page 13: Step 7 - Complete The Apsystems Installation Map

    PV connections. a. Each APsystems Microinverter has removable serial number labels. Peel labels off, affix one to the respective location on the APsystems installation map,and fill in 1,2 in the label below,according to the layout on the roof.
  • Page 14 APsystems Microinverter&Energy Communication Unit Warranty Card The APsystems Installation Map is a diagram of the physical location of each microinverter in your PV installation. Each APsystems microinverter has a removable serial number label located on the mounting plate. Pee l the label and affix it to the respective location on the APsystems installation map.

  • Page 15: Apsystems Microinverter System Operating Instructions

    4. Plug in the ECU and follow the instructions according to the manual for the ECU. 5. The APsystems Microinverters will start to send performance data to the ECU. The time required for all the Microinverters in thesystem to report to the ECU will vary with the number of Microinverters in the system.

  • Page 16: Troubleshooting

    ②. Always disconnect AC power before disconnecting the PV module wires from the APsystems microinverter. ③ . The APsystems microinverter is powered by PV module DC power. AFTER disconnecting the DC power, when reconnecting the PV modules tothe Microinverter, be sure to watch for the three short LED flashes.

  • Page 17: Troubleshooting A Non-Operating Apsystems Microinverter

    6. Verify the PV module DC voltage is within the allowable range shown in the Technical Data of this manual. 7. If the problem persists, please call APsystems Customer Support. Do not attempt to repair the APsystems microinverter. If troubleshooting methods fail, please return the microinverter to your distributor for replacement. 6.3 Maintenance No need to Maintenance.

  • Page 18: Replace A Microinverter

    7.Replace a microinverter Follow the procedure to replace a failed APsystems Microinverter A. Disconnect the APsystems Microinverter from the PV Module, in the order shown below: 1. Disconnect the AC by turning off the branch circuit breaker. 2. Disconnect the first AC connector in the branch circuit.

  • Page 19: Technical Data

    APsystems website www.APsystems.com. ②. You must match the DC operating voltage range of the PV module with the allowable input voltage range of the APsystems Microinverter. ③. The maximum open circuit voltage of the PV module must not exceed the specified...

  • Page 20: Yc600 Microinverter Datasheet

    8.1 YC600 Microinverter Datasheet Region Australia New Zealand Model YC600 Input Data (DC) MPPT Voltage Range 22V-45V Operation Voltage Range 16V-55V Maximum Input Voltage Startup Voltage Maximum Input Current 12A×2 Output Data (AC) Maximum Continuous Output Power 550VA Peak Output Power...

  • Page 21: Wiring Diagram

    9.Wiring Diagram 9.1 Sample Wiring Diagram - Single Phase Figure 13 YC600 Installation/User Manual...

  • Page 22: Warranty Card

    The APsystems Installation Map is a diagram of the physical location of each microinverter in your PV installation. Each APsystems microinverter has a removable serial number label located on the mounting plate. Peel the label and affix it to the respective location on the APsystems installation map.
