Summary of Contents for SPRT SP-EU58III

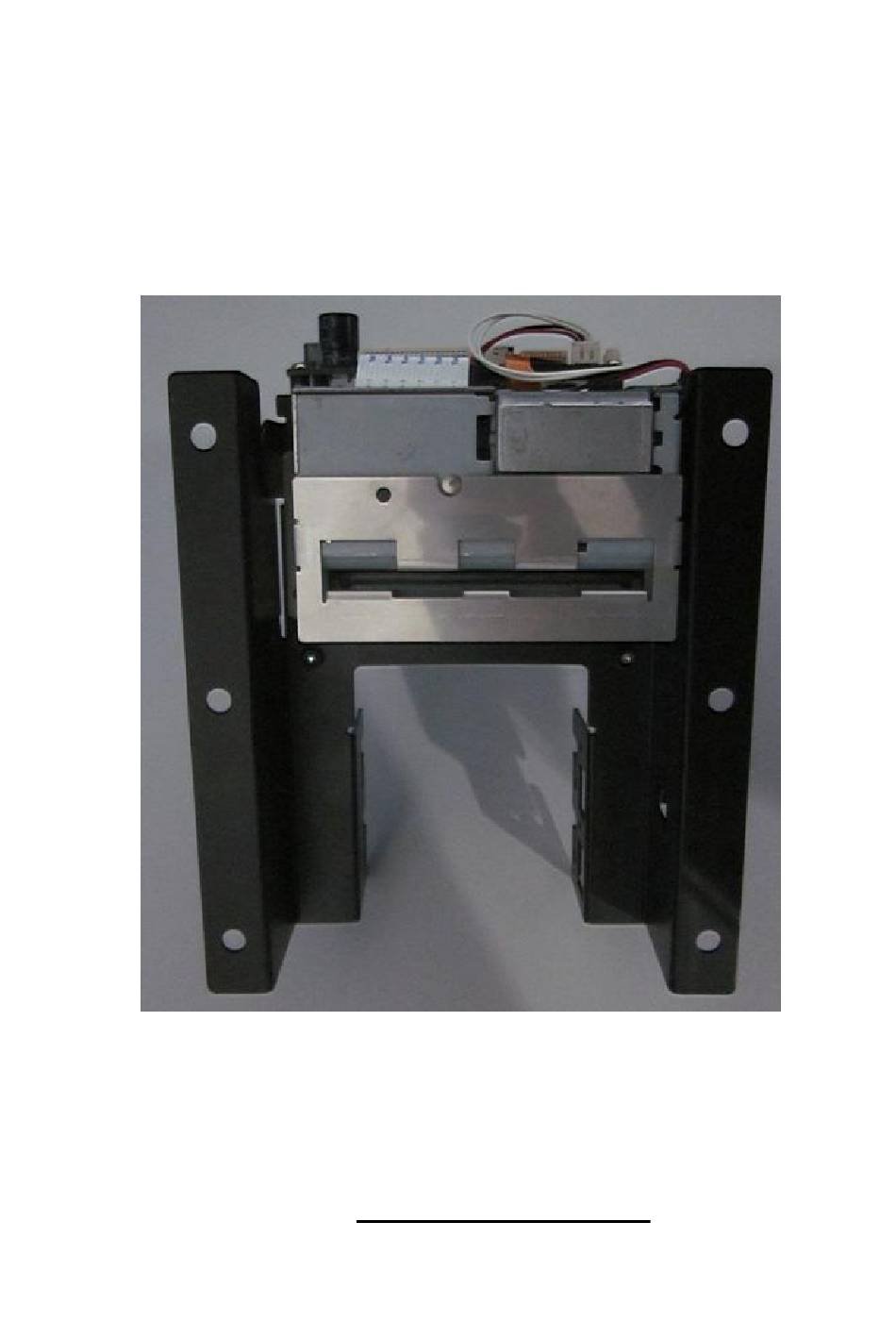

- Page 1 SPRT ® SP-EU58IIIPRINTING UNIT USER’S MANUAL V1.02 Beijing Spirit Technology Development Co.Ltd www.sprt-printer.com...
-
Page 2: Table Of Contents
Content 1. Description..............................1 2. Composition of the printing unit......................1 3. PCB board description..........................3 3.1 Description for PBC board buttons and ports................4 3.2 The appearance and pin assignment of default serial port............ 4 3.3 Appearance of customized serial port..................5 3.4 Customized pin assignment of serial port..................5 3.5 Appearance of parallel port...................... - Page 3 ESC @..............................25 ESC D n1...nk NUL..........................26 ESC E n..............................26 ESC G n............................... 27 ESC J n..............................27 ESC M n...............................28 ESC R n............................... 28 ESC V n..............................29 ESC \ nL nH............................29 ESC a n..............................30 ESC c 5 n.............................30 ESC d n..............................
-
Page 4: Description

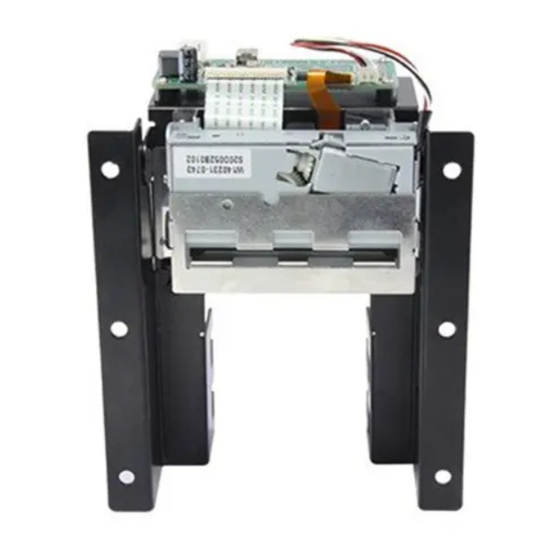

1. Description SP-EU58III is a new kind of thermal printing unite which is flexible, fully functional and have high quality. With core of printer, auto cutter, PCB board and support part, you can adjust the location of installation and design of paper exit to meet flexible changes with structure. - Page 5 Other accessories: Paper shaft, slider and optional senor for paper ending. 2. Installation dimensions figure (unit: mm): Size of the outline: 156×124×80(L*W*H) 3. Size of paper exit design proposals from customers (unit: mm) (the dotted line part is the proposed location and size of the paper exit) 4.
-
Page 6: Pcb Board Description
Align the mounting hole of head bracket and the main bracket in EU58III and screw M3.0 knurled screws. Installation is complete. 3. PCB board description With different interface,PCB board for SP-EU58III can be divided into many kinds.as with serial port (RS-232C, TTL, RS-485), with paralleled port,with USB port and so on. -
Page 7: Description For Pbc Board Buttons And Ports
Power socket USB port Serial port Fig3-1 SP-EU58III 3.2 The appearance and pin assignment of default serial port The appearance of the default serial port is as the figure 3-1.It is a single-line serial socket with five pins and definition of each pins is as following:... -
Page 8: Appearance Of Customized Serial Port
3.4 Customized pin assignment of serial port The series of SP-EU58III with serial ports can be divided into three kinds such as RS-232C, TTL and RS-485. These interfaces can be used through two sockets which is SJ1 and SJ2 as Fig3-3 shows. -
Page 9: Appearance Of Parallel Port
Fig 3-4 Handshake with serial pert for SP-EU58III 3.5 Appearance of parallel port Parallel port for SP-EU58III is compatible with Centronics, and its port socket match with NO 26 flat cable plug, its pin assignment is as following Fig 3-5... -
Page 10: Pin Assignment For Parallel Port
Fig 3-5 Pin assignment of parallel port Socket SJ1 for type IDC-10 of SP-EU58III printer 3.6 Pin assignment for parallel port Parallel port for SP-EU58III is compatible with centonics, and its port sockets matches with NO 26 flat cable plug.Pins assignments of printer with parallel port are as following:... -
Page 11: Usb Interface
Vacant as default, it also can be customized the external 5V output Fig 3-5 Pin assignment of parallel port Socket 3.7 USB interface Use standard interface of Mini-USB At type,which is suit for USB2.0. 3.8 Power supply interface Pin assignment of power supply interface is as Fig 3-6 Fig3-6 3Pin sequence number of single-line power supply interface Pin assignment of interface is as following: Pin no... -
Page 12: Power Supply
Storage environment/humidity: -20-60℃/10-90% 4.2 Power supply: DC (9~24V) ±10％, 2A 4.3 Interface: Serial port (RS-232C,TTL,RS-485), Parallel, MINI USB 4.4 Paper type: (1) Paper type: Thermal paper(thermal surface outside), thermal 57.5×φ100(MAX) (2) Paper width: 57.5±0.5mm (3) Paper roll inner diameter: φ13mm (4) Paper thickness: 0.06~0.08 mm (5) Paper supply method: auto paper feeding (6) Cutting method: Auto cutting ( Full/Partial cut) -
Page 13: Self-Test
constant on then cycle. The times of flashing means the type of mistake. Error The flashing way of [ERROR] Description ERROR Error The printer can not work normally after the memory need to be read-write Error The voltage of power is too high Error The voltage of power is too low Error... -
Page 14: Steps For Entering Mode Of Upgrading Program
enter the normal mode; the date will not saved if turn off the printer just through pressing 【FEED】 button. 5.5 Steps for entering mode of upgrading program. Power off, open 【Printer Roller】 and press the 【FEED】 button; restart the machine and release the button after the light is on;press 【FEED】... -
Page 15: Control Commands
Lift the cutter Paper lever 6.Control commands Format description we will tell you how to read this chapter in first part and please read before your programming. Instructions of this chapter includes the following 1） Overview of the command name and function: it is the first part of command description. It tell the command in form of ASCII code and its function description. - Page 16 [Format] ASCII Decimal [Description] Moves the print position to the next horizontal tab position. [Note] • This command is ignored unless the next horizontal tab position has been set. • If the next position of horizontal tab exceeds the printing area, the current position will be set as [printing width+1].
-
Page 17: Dle Eot N
·The printing area setup by ESC W returns to the default ·The printer won’t cut paper. This command sets the current position at the beginning of the line [Reference] ESC FF, ESC L, ESC S [Name] Printing and entering [Format] ASCII Decimal [Description]... - Page 18 command immediately under any state n = 1: Printer state Decimal Function Fix as 0 Fix as 1 The cash box open/close signal is low(the third of cash box plug leads foot) The cash box open/close signal is high(the third of cash box plug leads foot) online offline...
-
Page 19: Esc Sp N
fix as 0 n = 4: paper sensor state Decimal Function Fix as 0 Fix as 1 The sensor of paper is going out: have enough paper The sensor of paper is going out:the paper is going out Fix as 1 lack of paper sensor: have paper lack of paper sensor: noun paper Fix as 0... -
Page 20: Esc ! N
ESC ! n [Name] selecting print mode [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Setting character print mode according to value of n Decimal Function Standard ASCII style A (12×24) Compressing ASCII style B(9×17) Undefined Cancel bold font Select bold font Cancel double height mode Select double height mode... -
Page 21: Esc $ Nl Nh
ESC $ nL nH [Name] Setting absolute print position [Format] ASCII nL nH nL nH Decimal nL nH [Range] 0≤nL ≤ 255 0 ≤nH≤255 [Description] Setting the distance from the beginning of the line to the position at which (nL+nH×256) ×(vertical or horizontal motion unit) [Reference] This command is ignored if the setting position is out of the printing area. - Page 22 [Format] ASCII & y c1 c2 [x1 d1...d(y × x1)]...[xk d1...d(y × xk)] 26 y c1 c2 [x1 d1...d(y × x1)]...[xk d1...d(y × xk)] Decimal 38 y c1 c2 [x1 d1...d(y × x1)]...[xk d1...d(y × xk)] [Range] y = 3 32 ≤...
- Page 23 . When select the compressing ASCII style (9×17)
-
Page 24: ① Esc ' M N1L N1H
① ESC ‘ m n1L n1H... NM NM ②ESC L H n1L n1H... NM NM [name] Selecting bit map mode [format] ‘ n1L n1H ... NM NM ①ASCII n1L n1H ... NM NM Decimal n1L n1H ... NM NM L H n1L n1H ... NM NM ②.ASCII L H n1L n1H ... - Page 25 68 DPI 203 DPI nL + nH × 256 24SD 203 DPI 101 DPI ( nL + nH × 256) × 3 24DD 203 DP 203 DPI ( nL + nH × 256) × 3 [Note] ·If the value of m goes beyond the range,nl and the data later will be regarded as normal data to deal with.
-
Page 26: Esc - N
ESC - n [Name] Select／cancel underline [Format] ASCII Decimal [Range] 0 ≤ n ≤2, 48 ≤n ≤ 50 [Description] Selecting or canceling the underline mode according to the value of n Function 0, 48 Cancel underline mode 1, 49 Select underline mode(1dot width) 2, 50 Select underline mode(1dots width) [Note]... -
Page 27: Esc 2
ESC 2 [Name] Setting default height of line [Format] ASCII Decimal [Description] Selecting32 dots (4mm, about 1, 7inch) line height [Note] ·Line height is independent under standard and page mode [Reference] ESC 3 ESC 3 n [Name] Setting the height of the line [Format] ASCII Decimal... -
Page 28: Esc ? N
computer: Decima Function Forbidding printer Permitting printer Undefined [Note] ·When the printer is forbidden, the printer ignores all the commands(DLEEOT, DLEENQ,DLEDC4)except real time command until the command is allowed. [Default value] n = 1 ESC ? n [Name] Cancel user self-defined character [Format] ASCII Decimal... -
Page 29: Esc D N1
ESC D n1...nk NUL [Name] Setting horizontal tab positions [Format] ASCII n1...nk NUL 44 n1...nk 00 Decimal 68 n1...nk 0 [Range] 1 ≤ n1 ≤n2 ≤…≤nk≤ 255 0 ≤ k ≤ 32 [Description] Setting horizontal tab positions ·N specifies the column number for setting a horizontal tab position from the beginning of the line. -
Page 30: Esc G N
setting of the last received command is effective. [Default value] n = 0 [Reference] ESC ! ESC G n [Name] Selecting/canceling double print mode [Format] ASCII 47 n Decimal 71 n [Range] 0 ≤ n ≤ 255 [Description] Selecting/canceling double print mode ·When the lowest bit of n is 0,cancel double print mode ·When the lowest bit of n is 1,select double print mode [Note]... -
Page 31: Esc M N
ESC M n [Name] Select font [Format] ASCII Decimal [Range] n = 0, 1,48, 49 [Description] select font function 0,48 select standard ASCII style(12*24) 1,49 select compressing ASCII style (9*17) [Default value] n = 0 ESC R n [Name] Selecting international character set [Format] ASCII Decimal... -
Page 32: Esc V N
[Reference] ESC V n [Name] Selecting/canceling character 90 clockwise. [Format] ASCII Decimal [Range] 0 ≤ n ≤ 1, 48 ≤ n ≤ 49 [Description] Selecting/canceling character 90 clockwise Value of n: Function 0, 48 canceling character 90clockwise 1, 49 selecting character 90clockwise [Note] ·This command is just effective under standard mode. -
Page 33: Esc A N
the direction of printing area and zero position. The system of selection is as below: Using horizontal shifting when the beginning position is the top left or lower right corner of the printing area which is set by ESC T; ②... -
Page 34: Esc D N
[Description] Permitting/Forbidding key stoke. ·When the lowest bit of n is 0, key stoke works ·When the lowest bit of n is1, key stoke is forbidden. [Note] ·Only the lowest bit of n is effective. ·When the key stoke is forbidden, it does not work ·When carrying out the macro command, key stoke works all the time, but can not feed paper by it [Default value]... - Page 35 [伊朗, 波斯] Iran reserve 保留 reserve 保留 reserve 保留 reserve 保留 CP862 [希伯来] CP862 [Hebrew] ＷCP1252 [拉丁语 1] ＷCP1252 Latin I WCP1253 [希腊] WCP1253 [Greek] CP852 [拉丁语 2] CP852 [Latina 2] CP858 [多种语言拉丁语 CP858 Multilingual Latin Ⅰ+Euro) 1+欧元符] Iran II 伊朗Ⅱ[波斯语] Latvian 拉脱维亚...
-
Page 36: Esc { N
ESC { n [Name] Selecting/canceling invert printing mode [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Selecting/canceling invert printing mode ·When the lowest bit of n is 0,canceling invert printing mode ·When the lowest bit of n is1,selecting invert printing mode. [Note] ·Only the lowest bit of n is effective. -
Page 37: Gs ! N
. This command will not be influenced by printing mode.(bold, overlap, underline, character dimension or inverse print). . If the width of being printed beyond one line,the out profile will not be printed. . It needs special purpose tools to print the downloaded bit map,Please see (T9 set tool software).The bit map by this mode does not lose unless download other bitmap to cover it. -
Page 38: Gs * X Y D1
ESC ! command. However, the setting of the last received command is effective. [Default value] n = 0 [Reference] ESC ! GS * x y d1...d(x × y × 8) [Name] Defining downloaded bit map [Format] ASCII d1...dk d1...dk Decimal d1...dk [Range] 1 ≤... -
Page 39: Gs B N
[Format] ASCII Decimal [Range] 0 ≤ m ≤ 3, 48 ≤ m ≤ 51 [Description] Printing mode is appointed by m when print a bit map m printing mode selections are as below: mode vertical (DPI) horizontal (DPI) 0, 48 normal 1, 49 Double width... -
Page 40: Gs H N
GS H n [Name] Selecting the printing position of HRI character [Format] ASCII Decimal [Range] 0 ≤ n ≤ 3, 48 ≤ n ≤ 51 [Description] When printing the barcode, selecting the printing position for HRI character N appoints the printing position of HRI Printing position 0, 48 No printing... -
Page 41: Gs P X Y
[Reference] GS P, GS W GS P x y [Name] Setting horizontal and vertical motion units [Format] ASCII Decimal [Range] 0 ≤ x ≤ 255 0 ≤ y ≤255 [Description] ·Setting horizontal motion units as near 25.4/xmm ( 1/x inch) Setting vertical Motion units as near 25.4/ymm (1/y inch) ·When x and y are all 0, x and y are setting as default value [Note]... -
Page 42: Gs W Nl Nh
Decimal [Range] ① m = 0, 48, 1, 49 ② m = 66, 0 ≤n ≤255 [Description] Select one cutting mode and cut paper. Select cutting mode according to the value of m, as follows: cutting mode 0, 48 Whole cutting 1, 49 half cutting20. -
Page 43: Gs F N
·This command does not influence the printing under page mode. ·If [left margin+width of printing area]goes beyond the print able area, the width of printing is it of[printable area width–left margin] ·Vertical and horizontal motion units are set by GSP. Changing them will not Influence the current left margin and area width ·Using horizontal motion units to count the width of printing area [Default value]... - Page 44 [Format] d1...d k NUL ①ASCII d1...d k 00 Decimal d1...d k 0 d1... dn ②ASCII d1... dn Decimal d1... dn [Range] ①0 ≤ m ≤ 6 (Value range of k and d is decided by its type) ②65 ≤ m ≤ 73 (Value range of k and d is decided by its type) [Description] Selecting a kind of barcode and printing m is used to select type of barcode, as follows: Barcode type...
- Page 45 ·If n goes beyond the specified range, the printer will not handle this command, and handle the data following as normal data Note(Standard mode)] ·If the barcode d goes beyond the specified range, this command is invalid. ·If the cross wise of barcode goes beyond printing area, invalid ·No matter what is the height set by ESC 2 or ESC 3,the distance of feeding paper is the ·This command only available when there is no data in printing buffer, if not, the command will be ignored.
-
Page 46: Gs W N
stop handling this command, and handling the rest data as normal data ·If“{”and the character close behind is not the combination as above, the printer will stop handling this command, and handling the rest data as normal data. ·If the character is not the data of barcode character set, the printer will stop handling this command, and handling the rest data as normal data. -
Page 47: Gs Z N
[FORMAT] ASCII v r k nL nH d1 …dn 5A v r k nL nH d1 …dn Decimal 90 v r k nL nH d1 …dn [DESCRIPTION] print QR code as the code type of GSZ,the parameter meaning is different due to the different type. -
Page 48: ①Gs K M V R D1
①GS k m v r d1...dn NUL②GS k m v r nL nH d1...dn [NAME] PRINT QR CODE [FORMAT] d1...d n NUL ①ASCII d1...d n 00 Decimal d1...d n 0 nL nH d1... dn ②ASCII nL nH d1... dn Decimal nL nH d1... -
Page 49: Fs ! N
determined by “n” set by command “GSW” [REFERENCE] ESC Z, GS w The Chinese characters controlling commands FS ! n [Name] Setting Chinese characters mode [Format] ASCII Decimal [Range] 0 ≤n ≤ 255 [Description] Using value of n to set the printing mode of Chinese characters Decimal Function 0, 1... -
Page 50: Fs - N
[Description] Selecting Chinese character mode [Note] ·When select Chinese character mode, printer will judge whether the character is Chinese internal code, if it is, dealing with the first byte in advance. Then the second one. ·After powering up, the printer will select Chinese character mode by itself. [Reference] FS., FS C FS - n... -
Page 51: Fs 2 C1 C2 D1
FS 2 c1 c2 d1...dk [Name] Defining user self-defined Chinese [Format] ASCII c1 c2 d1...dk c1 c2 d1...dk Decimal c1 c2 d1...dk [Range] c1, c2 represent the code of defined characters. c1 = FEH A1H ≤ c2 ≤ FEH 0 ≤ d ≤ 255 k = 72 [Description] Defining the Chinese specified by c1, c2. -
Page 52: Fs C N
FS C n [Name] selecting Chinese code system [Format] ASCII Decimal [Range] n=0, 1, 48, 49 [Description] selecting Chinese code system selecting Chinese code system 0, 48 Simplified Chinese (GB2312或GB18030) 1, 49 Traditional Chinese-TC (BIG5) [Note] · The command does not change the parameter set of flash ·It returns to default after carried out ESC @ command, power off or reset. -
Page 53: Fs W N
motion unit] inch, the right space is[n2*lateral or vertical motion unit]inch. [Note] · The left and right space will be doubled after setting the double width mode. · The shifting unit is set by the command GS P. The former character space does not change even if the lateral and vertical units are changed. - Page 54 2. When the paper exit port and Cabinet outlet are connected in the above figure, in the structure of Figure 1 and Figure 2, there should be a gap between the paper exit of the printer and the paper exit of the device. See the figure below. 3.
-
Page 55: Appendix A: 128 Code
5. In the process of use, it is necessary to wait for the printer to finish cutting paper before tearing/taking paper, so as to avoid paper blocking and deviation caused by paper tearing. 6. In the process of use, do not cover the paper nozzle with your hands, and make sure there is no foreign body covering before the paper nozzle to avoid paper jam. - Page 56 Selecting character of character set (CODEA, CODEB, CODEC) These characters can transform the coding character followed to character set A,B or C. Function character (FNC1, FNC2, FNC3, FNC4) Usage of these function character is determined by application software.OnlyFNC1 can be used in character set C.
- Page 57 " &...
- Page 58 Character in set B Sending data Sending data Sending data character character character Decimal Decimal Decimal " & 7B,7B 123,123 — FNC1 7B,31 123,49 FNC2 7B,32 123,50 FNC3 7B,33 123,51 FNC4 7B,34 123,52 SHIFT 7B,53 123,83 CODEA 7B,41 123,65 CODEC 7B,43 123,67 <...
- Page 59 Character in set C Sending data Sending data Sending data Character Character Character Decimal Decimal Decimal FNC1 7B,31 123,49 CODEA 7B,41 123,65 CODEB 7B,42 123,66...
-
Page 60: Appendix B: Method To Set The Printer Default Parameters Through Button
APPENDIX B: Method to set the printer default parameters through button Set introduction:【MODE】button is “set” button, when press it once, the set become the next one and it will print the present set value;【FEED】button to set the set value, when press it once, the set become the next one and it will print the present set value Attention:for models without 【MODE】... - Page 61 Font: FEED 12×24 9×17 FEED Density: FEED FEED Middle High FEED Sensor sensitivity: FEED FEED Middle High FEED Black mark: FEED FEED Printing direction: FEED Normal Opposit FEED Command set: FEED FEED Micro-print set POS Printer Setup Others FEED...
