Summary of Contents for Qiagen Hybrid Capture System Microplate Heater 1

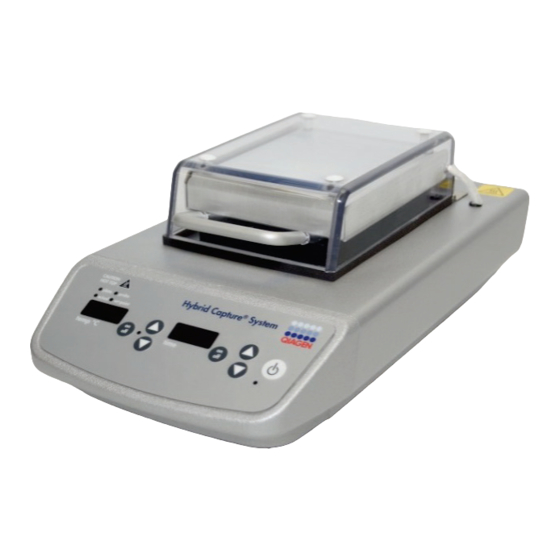

- Page 1 June 2017 Hybrid Capture System ® Microplate Heater 1 User Manual 6000-1110U (120 V) 6000-1240U (230 V) QIAGEN 19300 Germantown Road Germantown, MD 20874 QIAGEN GmbH QIAGEN Strasse 1 40724 Hilden GERMANY 1100210EN Rev. 05 Sample to Insight__...
- Page 2 (QIAGEN Group). Registered names, trademarks, etc., used in this document, even when not specifically marked as such, are not to be considered unprotected by law. 06/2017 © 2016-2017 QIAGEN, all rights reserved. Hybrid Capture System Microplate Heater 1 User Manual 06/2017...
-
Page 3: Table Of Contents
Start up ....................16 Functional Description ..................17 Control elements ................... 18 Heater control panel ................19 4.2.1 Heater plates ................20 4.2.2 Heater Control Panel ..............20 4.2.3 RTD Port ..................20 Hybrid Capture System Microplate Heater 1 User Manual 06/2017... - Page 4 Storage conditions ................33 Appendix A – Waste Electrical and Electronic Equipment (WEEE) ........34 Appendix B – Warranty .................... 35 Appendix C – FCC Declaration .................. 36 Ordering Information ....................38 Hybrid Capture System Microplate Heater 1 User Manual 06/2017...
-
Page 5: Introduction
1.1.1 Technical assistance At QIAGEN we pride ourselves on the quality and availability of our technical support. IF you have any questions or experience any difficulties regarding the instrument or QIAGEN products in general, do not hesitate to contact us. -
Page 6: Version Management
1.2 Intended use The Hybrid Capture System Microplate Heater 1 is intended for use only in conjunction with digene Hybrid Capture 2 (HC2) DNA tests as described in the respective digene HC2 DNA test instructions for use. -
Page 7: Safety Information
The details given in this manual are intended to supplement, not supersede, the normal safety requirements prevailing in the user’s country. Hybrid Capture System Microplate Heater 1 User Manual 06/2017... -
Page 8: Proper Use
WARNING Electrical fire hazard Before turning on the instrument, make sure that the fuses are properly installed. The use of improper fuses can damage the wiring system and cause a fire. Hybrid Capture System Microplate Heater 1 User Manual 06/2017... -
Page 9: Environment
Do not use in the presence of flammable or combustible materials or explosive gases. Do not use in the presence of pressurized or sealed containers. Fire or explosion may result causing death or severe injury. Hybrid Capture System Microplate Heater 1 User Manual 06/2017... -
Page 10: Biological Safety
(SDSs). These are available online in PDF format at www.qiagen.com/safety where you can find, view and print the SDS for each QIAGEN kit and kit component. For further information see the instructions for use that come with the kit. -
Page 11: Waste Disposal
Waste may contain certain hazardous chemicals or contagious/biohazardous materials and must be collected and disposed of properly in accordance with all national, state and local health and safety regulations and laws. Hybrid Capture System Microplate Heater 1 User Manual 06/2017... -
Page 12: Symbols
RCM mark for Australia of the instrument Type plate on the back CE mark for Europe of the instrument In vitro diagnostic medical device Type plate on the back of the instrument Hybrid Capture System Microplate Heater 1 User Manual 06/2017... - Page 13 Type plate on the back Serial number of the instrument Manufacturer Type plate on the back of the instrument Front cover Catalog number In this user manual Consult instructions for use Hybrid Capture System Microplate Heater 1 User Manual 06/2017...
- Page 14 Symbol Location Description Label of the instrument Global Trade Item Number Label of the instrument Fragile, handle with care Front cover of this user Authorized representative in the European manual Community Hybrid Capture System Microplate Heater 1 User Manual 06/2017...
-
Page 15: Installation
3.1 Unpacking Before using the HCS Microplate Heater 1 for the first time, examine the exterior carton and the equipment itself for damages. In the event of shipping damage, call your local QIAGEN representative or QIAGEN Technical Services. Carefully unpack the unit and verify the contents of the package. The package should... -
Page 16: Start Up
8. Plug the cord into the power inlet module located at the rear of the HCS Microplate Heater 1 and then into a grounded outlet that meets the electrical specifications on the unit’s equipment type plate. Hybrid Capture System Microplate Heater 1 User Manual 06/2017... -
Page 17: Functional Description
HC2 DNA tests. These characteristics are controlled and maintained by an integrated electronic device that also provides a digital light emitting diode display. Hybrid Capture System Microplate Heater 1 User Manual 06/2017... -
Page 18: Control Elements
All of the operating controls for the HCS Microplate Heater 1 are located on the top front. The following figures show the major components of the instrument. Heater cover Heater control panel Heater cover handle Power inlet RTD Port Fuse drawer Hybrid Capture System Microplate Heater 1 User Manual 06/2017... -
Page 19: Heater Control Panel
Set-point indicator light: Illuminates when the set-point temperature is displayed. Plate indicator light: Illuminates when the heat plate temperature is displayed. Actual indicator light: Illuminates when the actual heat plate/RTD probe temperature is displayed. Hybrid Capture System Microplate Heater 1 User Manual 06/2017... -
Page 20: Heater Plates
The probe indicator light will be illuminated. The RTD probe will now control the heat block temperature and not the internal RTD on the heat plate. Hybrid Capture System Microplate Heater 1 User Manual 06/2017... -
Page 21: General Operation
5.3.1 Viewing the set-point The temperature display will cycle approximately every 3 seconds between the set-point and the actual plate temperature. The set-point is displayed when the set-point indicator light illuminates. Hybrid Capture System Microplate Heater 1 User Manual 06/2017... -
Page 22: Changing The Set-Point
Four audible beeps will indicate the countdown function is complete, and the time display will default back to the set time. 4. To repeat for the same time, press the timer on/off button again. Hybrid Capture System Microplate Heater 1 User Manual 06/2017... -
Page 23: Beeper Preference
5.7 Temperature calibration QIAGEN recommends that users verify the temperature of the HCS Microplate Heater 1 every 6 months. Use only the T-type thermocouple included with the HCS Microplate Heater 1 when performing temperature calibration. - Page 24 If the measured temperature varies less than one degree from the displayed temperature, a temperature calibration value change is not needed. If the measured temperature varies one degree or more from the displayed set temperature, adjust the temperature calibration value. Hybrid Capture System Microplate Heater 1 User Manual 06/2017...
- Page 25 4. Press the temperature up/down arrows until the display matches the temperature probe/thermometer. 5. Press power/standby button to exit calibration mode and return to normal heating. 6. Repeat the temperature calibration. Hybrid Capture System Microplate Heater 1 User Manual 06/2017...
-
Page 26: Maintenance
6 Maintenance If you have a problem with maintenance of the HCS Microplate Heater 1, contact QIAGEN Technical Services. QIAGEN charges for repairs that are required due to incorrect maintenance. 6.1 Cleaning and decontamination WARNING/ Risk of personal injury and material damage... -
Page 27: Replacing A Fuse
Type 120 V 6000-1110U 5 AMP 250 volt 5 x 20 mm fast acting UL-listed fuse 230 V 6000-1240U 5 AMP 250 volt 5 x 20 mm fast acting UL-listed fuse Hybrid Capture System Microplate Heater 1 User Manual 06/2017... -
Page 28: Servicing
QIAGEN Technical Services and provide full failure details. When making your call, please ensure that you have the serial number of the instrument. Do not ship the instrument back for repair until advised to do so by QIAGEN Technical Services. - Page 29 Contact QIAGEN Technical Services for a Return Goods Authorization (RGA) number. Mark this number on the outside of the shipping box. Hybrid Capture System Microplate Heater 1 User Manual...
-
Page 30: Troubleshooting
7 Troubleshooting Refer to this section for error handling and troubleshooting. If the recommended steps do not resolve the problem, contact QIAGEN Technical Services for assistance. Possible problem or cause Corrective action Blank display The power cord is not plugged in... -
Page 31: Technical Data
Voltage fluctuations are not to exceed 10% of the nominal supply voltage Fuse rating for 6000-1110U 5 A (250 V) fast-acting UL-listed fuse Fuse rating for 6000-1240U 5 A (250 V) fast-acting UL-listed fuse Hybrid Capture System Microplate Heater 1 User Manual 06/2017... -
Page 32: Transport Conditions
Pollution level Altitude Up to 2000 meters (6562 feet) Temperature Range Ambient +5°C to 120°C 8.2 Transport conditions Condition Parameter Air temperature –20°C to 65°C in manufacturer’s package Relative humidity 20–80% (noncondensing) Hybrid Capture System Microplate Heater 1 User Manual 06/2017... -
Page 33: Storage Conditions
8.3 Storage conditions Condition Parameter Air temperature -20°C to 65°C Relative humidity 20–80% (noncondensing) Hybrid Capture System Microplate Heater 1 User Manual 06/2017... -
Page 34: Appendix A - Waste Electrical And Electronic Equipment (Weee)
QIAGEN provides recycling upon request at additional cost. To recycle electronic equipment, you should contact your local QIAGEN sales office for the required return form. After you submit the form, QIAGEN will contact you either to request follow-up information for scheduling the collection of your electronic waste or to provide you with an individual quote. -
Page 35: Appendix B - Warranty
The warranty shall not apply to defects resulting from improper or inadequate maintenance by the customer, unauthorized modification or service, misuse, operation outside of the environmental specifications for the product or units returned with inadequate packaging. Hybrid Capture System Microplate Heater 1 User Manual 06/2017... -
Page 36: Appendix C - Fcc Declaration
However, there is no guarantee that the interference will not occur in a particular installation. Hybrid Capture System Microplate Heater 1 User Manual 06/2017... - Page 37 QIAGEN is not responsible for any radio television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connection cables and equipment other than those specified by QIAGEN. The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.
-
Page 38: Ordering Information
Ordering Information Product Contents Cat. no. 6000-1110U Microplate Heater 1 96-well microplate heater, 120 V Microplate Heater 1 96-well microplate heater, 230 V 6000-1240U Hybrid Capture System Microplate Heater 1 User Manual 06/2017... - Page 39 Ordering www.qiagen.com/contact | Technical Support support.qiagen.com | Website www.qiagen.com Hybrid Capture System Microplate Heater 1 User Manual 06/2017...
