Hybrid Capture
Rotary Shaker 1 User Manual
6000-2110E (120 V)
6000-2240E (230 V)
QIAGEN
19300 Germantown Road
Germantown, MD 20874
USA
QIAGEN GmbH
QIAGEN Strasse 1
40724 Hilden
GERMANY
1108562 Rev. 01
Sample to
Insight__
System
®
September 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hybrid Capture Rotary Shaker 1 and is the answer not in the manual?

Questions and answers

Related Manuals for Qiagen Hybrid Capture Rotary Shaker 1

Summary of Contents for Qiagen Hybrid Capture Rotary Shaker 1

  • Page 1 September 2018 Hybrid Capture System ® Rotary Shaker 1 User Manual 6000-2110E (120 V) 6000-2240E (230 V) QIAGEN 19300 Germantown Road Germantown, MD 20874 QIAGEN GmbH QIAGEN Strasse 1 40724 Hilden GERMANY 1108562 Rev. 01 Sample to Insight__...
  • Page 2 (QIAGEN Group). Registered names, trademarks, etc., used in this document, even when not specifically marked as such, are not to be considered unprotected by law. © 2018 QIAGEN, all rights reserved. Hybrid Capture System Rotary Shaker 1 User Manual 09/2018...

  • Page 3: Table Of Contents

    Contents Introduction ..................... 5 General information ................5 1.1.1 Technical assistance ................ 5 1.1.2 Version management ............... 5 Intended use ..................5 Safety Information .................... 6 Proper use ..................... 7 Electrical safety ..................9 Biological safety ..................9 Waste disposal ..................11 Symbols ....................
  • Page 4 Beeper Preference ................. 22 Maintenance ....................23 Cleaning and decontamination .............. 23 Regular maintenance ................24 Detaching and replacing the shaker platform ........... 25 Replacing the fuse ................. 26 Shaking speed verification ..............27 Servicing ..................... 28 Troubleshooting ....................29 Technical Data ....................

  • Page 5: Introduction

    1.1 General information 1.1.1 Technical assistance For technical assistance and more information, please see our Technical Support Center at www.qiagen.com/TechSupportCenter or contact QIAGEN Technical Services or a local distributor. 1.1.2 Version management This document is Hybrid Capture System Rotary Shaker 1 User Manual; see the front cover of this user manual for document number and revision.

  • Page 6: Safety Information

    2 Safety Information This manual contains information about warnings and cautions that must be followed by the user to ensure safe operation of the HCS Rotary Shaker 1 and to maintain the instrument in a safe condition. WARNING The term WARNING is used to inform you about situations that could result in personal injury to you or other persons.

  • Page 7: Proper Use

    2.1 Proper use WARNING/ Risk of personal injury and material damage CAUTION Improper use of the HCS Rotary Shaker 1 may cause personal injuries to the user or damage to the instrument. The HCS Rotary Shaker 1 must only be operated by qualified personnel who have been appropriately trained.
  • Page 8 WARNING Risk of material damage Only a QIAGEN Field Service Specialist can service or repair the instrument. The only exceptions are the maintenance activities listed in the “Maintenance” section, page 23, of this user manual. WARNING/ Risk of personal injury and material damage...

  • Page 9: Electrical Safety

    (SDSs). These are available online in PDF format at www.qiagen.com/safety where you can find, view and print the SDS for each QIAGEN kit and kit component. For further information see the instructions for use that comes with the kit.
  • Page 10 WARNING Risk of exposure to hazardous material Shake hazardous samples only in appropriate containment vessels. WARNING/ Risk of personal injury and material damage CAUTION Consider any laboratory equipment used for research or clinical analysis a potential biohazard that requires decontamination before reuse. WARNING Risk of personal injury Sodium hypochlorite solution is caustic;...

  • Page 11: Waste Disposal

    2.4 Waste disposal Waste may contain certain hazardous chemicals or contagious/biohazardous materials and must be collected and disposed of properly in accordance with all national, state and local health and safety regulations and laws. Hybrid Capture System Rotary Shaker 1 User Manual 09/2018...

  • Page 12: Symbols

    2.5 Symbols The following symbols may be found on the instrument, in this user manual or on labels associated with the instrument. Symbol Location Description On the instrument General warning sign Type plate on the CE mark for Europe instrument Type plate on the In vitro diagnostic medical device instrument...
  • Page 13 Symbol Location Description Type plate on the RCM mark for Australia Instrument Type plate on the The instrument complies with applicable Instrument standards for electrical safety of laboratory equipment UDI Label on the Global trade item number instrument Instrument box label Fragile, handle with care Instrument box label Consult instructions for use...

  • Page 14: Installation

    3.1 Unpacking Before using the HCS Rotary Shaker 1 for the first time, examine the exterior carton and the equipment itself for damage. In the event of shipping damage, contact your local QIAGEN representative or QIAGEN Technical Services. Carefully unpack the instrument and verify the contents of the package, which should contain...
  • Page 15 Secure the HCS Rotary Shaker 1 to the work surface by firmly pressing down on the four (4) corners of the unit, creating a strong suction to the work surface (DO NOT place on a bench mat). WARNING/ Risk of personal injury and lnstrument damage CAUTION Failure to create a strong suction to secure the Shaker will cause excess vibration, personal injury, Instrument damage, and/or property damage.

  • Page 16: Functional Description

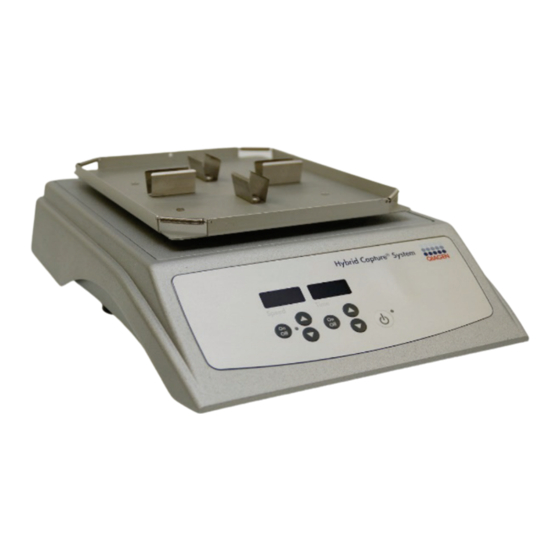

    4 Functional Description The HCS Rotary Shaker 1 is a shaker platform attached to a shaker base with 4 screws. The shaker platform is spring-loaded, and can secure four 96-well microplates. The HCS Rotary Shaker 1 can hold up to 4 microplates. The HCS Rotary Shaker 1 can be used in environments from -10 to 60°C, allowing for cold room use as well as incubated applications.

  • Page 17: Operational Modes

    Power/Standby button Shaking indicator light Standby Indicator light Shaking on/off button Timer up/down arrows Speed display Timer on/off button Time display Speed up/down arrows The power inlet and fuse drawer are on the back of the HCS Rotary Shaker 1. Power inlet module Fuse drawer 4.1 Operational modes...
  • Page 18 The HCS Rotary Shaker 1 can operate in both Continuous Operation or Timer Terminated operation modes. Hybrid Capture System Rotary Shaker 1 User Manual 09/2018...

  • Page 19: General Operation

    5 General Operation The HCS Rotary Shaker 1 can be used in either continuous or timer-terminated operation. Certain load and speed ratios can cause vibration of the instrument. If the instrument vibrates, adjust the speed and/or load as necessary to eliminate the vibration. 5.1 Loading Microplates The HCS Rotary Shaker 1 is designed to hold two (2) or four (4) microplates, but must be loaded symmetrically to avoid unbalanced loads.

  • Page 20: Continuous Operation

    Examples of acceptable microplate loading configurations: 2 Microplates 4 Microplates 5.2 Continuous operation 1. Power ON the instrument by pressing the Power/Standby button. The standby indicator light turns off, and the speed display and the timer display illuminate. 2. Press the speed up/down arrows, to set the desired speed. 3.

  • Page 21: Timer Function - Accumulated Time

    3. Press the timer up/down arrows until you reach the desired time remaining. 4. Press the shaking on/off button. The shaking indicator light will blink rapidly until the desired speed is reached, then it will remain illuminated. 5. After the shaking indicator light is solidly illuminated, Press the timer on/off button to start the countdown.

  • Page 22: Beeper Preference

    2. Press the timer on/off button to start the countdown. 3. If the timer is used in conjunction with the shaking function, when the time display reaches zero (0:00), both the time and shaking functions will shut off automatically. Four audible beeps will indicate the countdown function is complete, and the time display will default back to the set time.

  • Page 23: Maintenance

    The only exceptions are the Maintenance activities in the “Maintenance” section of this user manual. If you have a problem with maintenance of the HCS Rotary Shaker 1, contact QIAGEN Technical Services. QIAGEN charges for repairs that are required due to incorrect maintenance.

  • Page 24: Regular Maintenance

    WARNING Risk of personal injury Sodium hypochlorite solution is caustic; wear rubber gloves and eye protection when handling it. Risk of lnstrument damage WARNING/ Spills should be removed promptly. DO NOT use a cleaning agent or solvent CAUTION on the front panel which is abrasive or harmful to plastics, nor one which is flammable.

  • Page 25: Detaching And Replacing The Shaker Platform

    3. Check all platform screws to make sure they are properly tightened 6.3 Detaching and replacing the shaker platform In the event that the shaker platform needs to be removed (eg. to clean up spilled reagent that cannot be properly cleaned with the platform in place), detach and replace the shaker platform as follows: 1.

  • Page 26: Replacing The Fuse

    6.4 Replacing the fuse Only use fuses of the same type and rating for the voltage in your location. Note: a spare fuse is stored in the fuse drawer 1. Remove the power cord from the power source. 2. Gently pry open the fuse drawer at the rear of the shaker base. 3.

  • Page 27: Shaking Speed Verification

    6.5 Shaking speed verification We recommend verifying the speed of the HCS Rotary Shaker 1 every 3 months. A standard optical tachometer with an average RPM function is required to perform this procedure. Set the tachometer to measure revolutions per minute. 1.

  • Page 28: Servicing

    Your local QIAGEN representative or QIAGEN Technical Services may request a certificate is included with the instrument to verify the decontamination. Failure to do this may result in the refusal to repair the unit. Contact your local QIAGEN representative or QIAGEN Technical Services for a Return Goods Authorization (RGA) number.

  • Page 29: Troubleshooting

    7 Troubleshooting Refer to this section for error handling and troubleshooting. If the recommended steps do not resolve the problem, contact QIAGEN Technical Services for assistance. Possible problem or cause Corrective action Standby indicator light is not illuminated Power cord is not plugged in properly Make sure that the power cord is plugged in.
  • Page 30 Possible problem or cause Corrective action Shaking stops unexpectedly The fuse may need to be replaced Replace the fuse. See “Replacing the fuse,” page 26. Set time has expired Refer to sections 5.3 to 5.5 for timer operation. The instrument vibrates excessively The instrument is on an uneven surface Relocate the instrument to a flat, even surface.
  • Page 31 Possible problem or cause Corrective action Microplates are not held securely Microplates are not inserted properly Properly insert the microplates (see “Loading Microplates” The stainless steel plate holders are Remove the microplates. Gently bend the loose or bent. stainless steel plate holders toward the platform so that they resemble the shape of a letter “V”.
  • Page 32 Press the Power/Standby button to clear this error. Press the Power/Standby button again to resume operation. Drive system failure If the E03 error persists after the above troubleshooting steps, contact QIAGEN Technical Services Hybrid Capture System Rotary Shaker 1 User Manual 09/2018...

  • Page 33: Technical Data

    8 Technical Data 8.1 Operating conditions Condition Parameter Dimensions (w x d x h) 28 x 43 x 10 mm (11 x 17 x 4 inches) Shipping Weight 11.4 kg (25 lbs) Power requirements for 6000-2110E 120 Volts AC 50/60Hz Power requirements for 6000-2240E 230 Volts AC 50/60Hz Power consumption...
  • Page 34 Condition Parameter Maximum load 4 microplates Place of operation For indoor use only Pollution level Altitude Up to 2000 meters (6562 feet) Shaking speed 100–1200 RPM Shaking motion Orbital Shaking orbit diameter 0.3 cm (0.12 inches) Hybrid Capture System Rotary Shaker 1 User Manual 09/2018...

  • Page 35: Transport Conditions

    8.2 Transport conditions Condition Parameter Air temperature –20 to 65°C in manufacturer’s package Relative humidity Maximum 80% (non-condensing) 8.3 Storage conditions Condition Parameter Air temperature –20 to 65°C in manufacturer’s package Relative humidity Maximum 80% (non-condensing) Hybrid Capture System Rotary Shaker 1 User Manual 09/2018...

  • Page 36: Appendix A - Waste Electrical And Electronic Equipment (Weee)

    QIAGEN provides recycling upon request at additional cost. To recycle electronic equipment, contact your local QIAGEN sales office for the required return form. After you submit the form, QIAGEN will contact you either to request follow-up information for scheduling the collection of your electronic waste or to provide you with an individual quote.

  • Page 37: Appendix B - Warranty

    Appendix B – Warranty The HCS Rotary Shaker 1 is warranted against defects in materials and workmanship for a period of one year from the date it is shipped from the manufacturer. If notified of such defects during the warranty period, the manufacturer will, at its option, either repair or replace products that prove to be defective.

  • Page 38: Appendix C - Fcc Declaration

    Appendix C — FCC Declaration The “United States Federal Communications Commission” (USFCC) (in 47 CFR 15. 105) declared that the users of this product must be informed of the following facts and circumstances. “This device complies with part 15 of the FCC: Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”...
  • Page 39 QIAGEN is not responsible for any radio television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connection cables and equipment other than those specified by QIAGEN. The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.

  • Page 40: Ordering Information

    Ordering Information Product Contents Cat. no. 6000-2110E Hybrid Capture System Rotary 120 volt rotary shaker for use with Shaker 1 digene Hybrid Capture 2 DNA tests Hybrid Capture System Rotary 230 volt rotary shaker for use with 6000-2240E Shaker 1 digene Hybrid Capture 2 DNA tests Hybrid Capture System Rotary Shaker 1 User Manual 09/2018...
  • Page 41 This page intentionally left blank Hybrid Capture System Rotary Shaker 1 User Manual 09/2018...
  • Page 42 This page intentionally left blank Hybrid Capture System Rotary Shaker 1 User Manual 09/2018...
  • Page 43 This page intentionally left blank Hybrid Capture System Rotary Shaker 1 User Manual 09/2018...
  • Page 44 Ordering www.qiagen.com/contact | Technical Support support.qiagen.com | Website www.qiagen.com Hybrid Capture System Rotary Shaker 1 User Manual 09/2018...
