ZAPTEC HOME User Manual
Hide thumbs
Also See for HOME:
- User manual (16 pages) ,
- Quick manual for installers (12 pages) ,
- User manual (16 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for ZAPTEC HOME
Summary of Contents for ZAPTEC HOME
- Page 1 ZAPTEC HOME USER MANUAL...

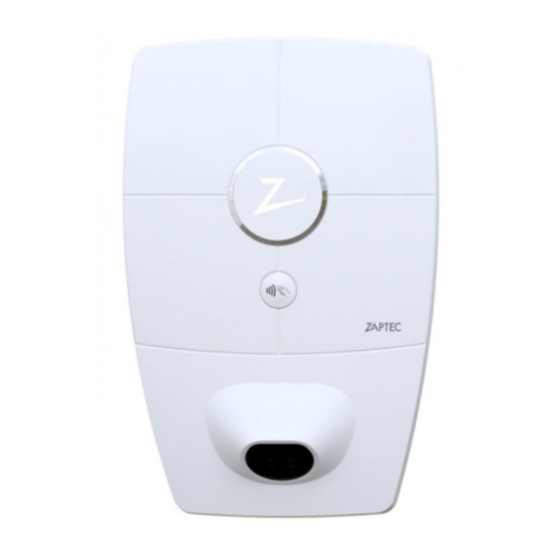

- Page 3 ZAPTEC HOME purchase! A unique Norwegian smart charging station for home charging. ZAPTEC HOME allows you to charge your vehicle in a safe, simple and efficient manner. The charging station makes use of the available charging power across up to three charging stations in addition to the home.
-
Page 4: Table Of Contents
How to start authenticated charging How to end charging Connecting a charging card to your user Adding users to the installation Monitoring the charging station (ZAPTEC Portal) Turning eco mode on/off Locking the charging station charging cable Adjusting status indicator (Z) brightness... -
Page 5: Safety Instructions
Failure to comply with the instructions and procedures will render the warranties void and Zaptec Charger AS will be exempted from all claims for damages. Read these instructions thoroughly and examine the equipment to familiarise yourself with the product prior to use. -
Page 6: Zaptec Home 4G
Store or Google Play and log in. Cable type The charging cable must be equipped with a Type 2 plug at one end to connect to the ZAPTEC HOME charging connector, the other connector should fit your vehicle specifications. Vehicle adapters may be used. -
Page 7: Zaptec Home
The light is off but flashes every 30 seconds = section on Troubleshooting for the charging station has not been activated in further details) ZAPTEC Portal. Please refer to the section on Troubleshooting for further details. System booting up YELLOW... -
Page 8: How To Start Charging
1. Follow steps 1-4 of How to start charging. 5. The status indicator (Z) will flash yellow to indicate that it is waiting for authentication. 6. Place your RFID tag/charging card against the RFID zone, see illustration in the ZAPTEC HOME section. -
Page 9: Connecting A Charging Card To Your User
The charging station supports the most common RFID tags/charging cards (Mifare Classic). If there is a visually readable code, this can be entered in ZAPTEC Portal, otherwise you scan the RFID tag/ charging card using the charging station as described below. -
Page 10: Adjusting Status Indicator (Z) Brightness
Reading error codes 1. Open the ZAPTEC app. 2. Click on the “+” tab. Configure ZAPTEC devices, followed by Configure via Bluetooth. 3. Select the charging station you want to read the error code from. 4. When the app has connected to the charging station, a red field will be displayed if there are any active error codes associated with the charger. -
Page 11: Storage And Maintenance
If charging does not start and the light turns red again, this could indicate a potential fault in the charging cable or vehicle. • Check that your user profile has been assigned access to this installation by the owner in ZAPTEC Portal. -
Page 12: Warranty
Contact your dealer if you need any accessories for your ZAPTEC HOME (cable hanger, charging cable, etc.). Zaptec Charger AS collects data from the product via the network. More information about our privacy guidelines can be found at zaptec.com/privacy. -
Page 13: Technical Specification
Max. 40 A series connected fuse in the and 3-phase charging station mode. If two or charging station installation circuit. three charging stations are used, the phase Max. 3 x ZAPTEC HOME connected in one usage will be coordinated in the optimal installation. manner. - Page 14 Technical specifications protection UL94 5VB fire class UV resistant Electrical protection Protection class II (4kV AC and 6kV impulse, isolation) Overvoltage category III (4kV) The power inlet/main inlet/panel should be equipped with overvoltage protection in accordance with NEK...
