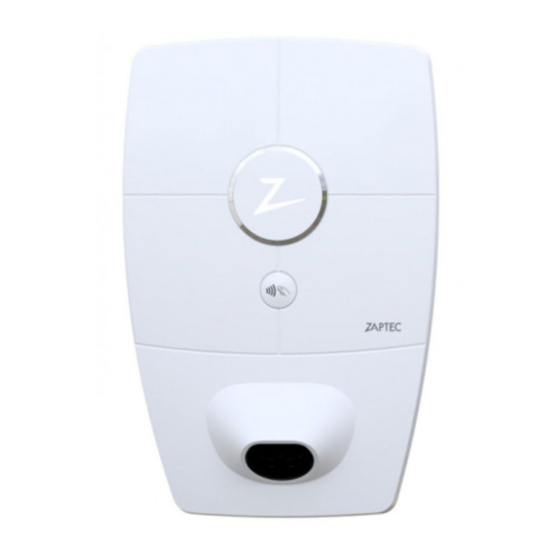

Summary of Contents for ZAPTEC HOME
- Page 1 QUICK GUIDE FOR INSTALLERS ZAPTEC HOME...
- Page 3 3. Complete the installation details and select ZAPTEC Home as the installation type. 4. Add a new charging circuit and enter the serial number of the ZAPTEC Home (The serial number can be found on the charging station, box and on the user manual).
- Page 4 3. The customer will now receive an invitation to create a profile and will be able to order ZAPTEC Premium and the HAN module that can be connected to an AMS meter for dynamic load management alongside home consumption.*...
- Page 5 Installation of the back panel 1. The back panel should be installed 90-130 cm above ground level on a flat surface in a well-ventilated area. 2. Use four screws that are at least 25 mm long and appropriate for the wall structure.
-
Page 6: Cable Routing
Cable routing We always recommend 3-phase connection. The charging station will select which phase to use for charging. 1. Minimum 10 cm before the cable bends. 2. The sealing cone must be pulled towards the junction box. 3. Ensure that there is a good seal. -
Page 7: Electrical Connection
Electrical connection 1. Before installing the charging stations on the back panels, isolation testing of all back panels must be performed. The surge protection may kick in if this is done after the charging stations have been installed and the test will fail. Measuring pins, wires or other items must not be inserted into the quick coupling on the back panel. - Page 8 Charging station installation 1. Remove the front cover using the specialist SmartKey* tool supplied with the charging station 2. Place the charging station on the back panel and check that it has full contact with the back panel. There should not be any gaps between the charging station and the back panel.
- Page 9 A mobile with a Telenor SIM must be used to ensure accurate measurement. Coverage map: https://www.gsma.com/iot/deployment-map/ ZAPTEC Home must be connected to WiFi or 4G in order to communicate with the ZAPTEC Portal Installation When using 4G in ZAPTEC Home, you will not need to configure communication with the charging station using the mobile app.
- Page 10 2-3 minutes. 1. Complete step 1 of Create installation in ZAPTEC Portal. 2. Download the ZAPTEC app from the App Store/Google Play. Log in using your registered username. 3. Enter the PIN code. See rear cover of the user manual.
- Page 11 Final test form Installation created in ZAPTEC Portal and charging station(s) added. Customer has been invited as installation owner. Isolation testing and continuity testing have been performed prior to installation of the charging station and the phase sequence has been checked.
- Page 12 MADE IN NORWAY All products are developed, designed and made in Norway...
