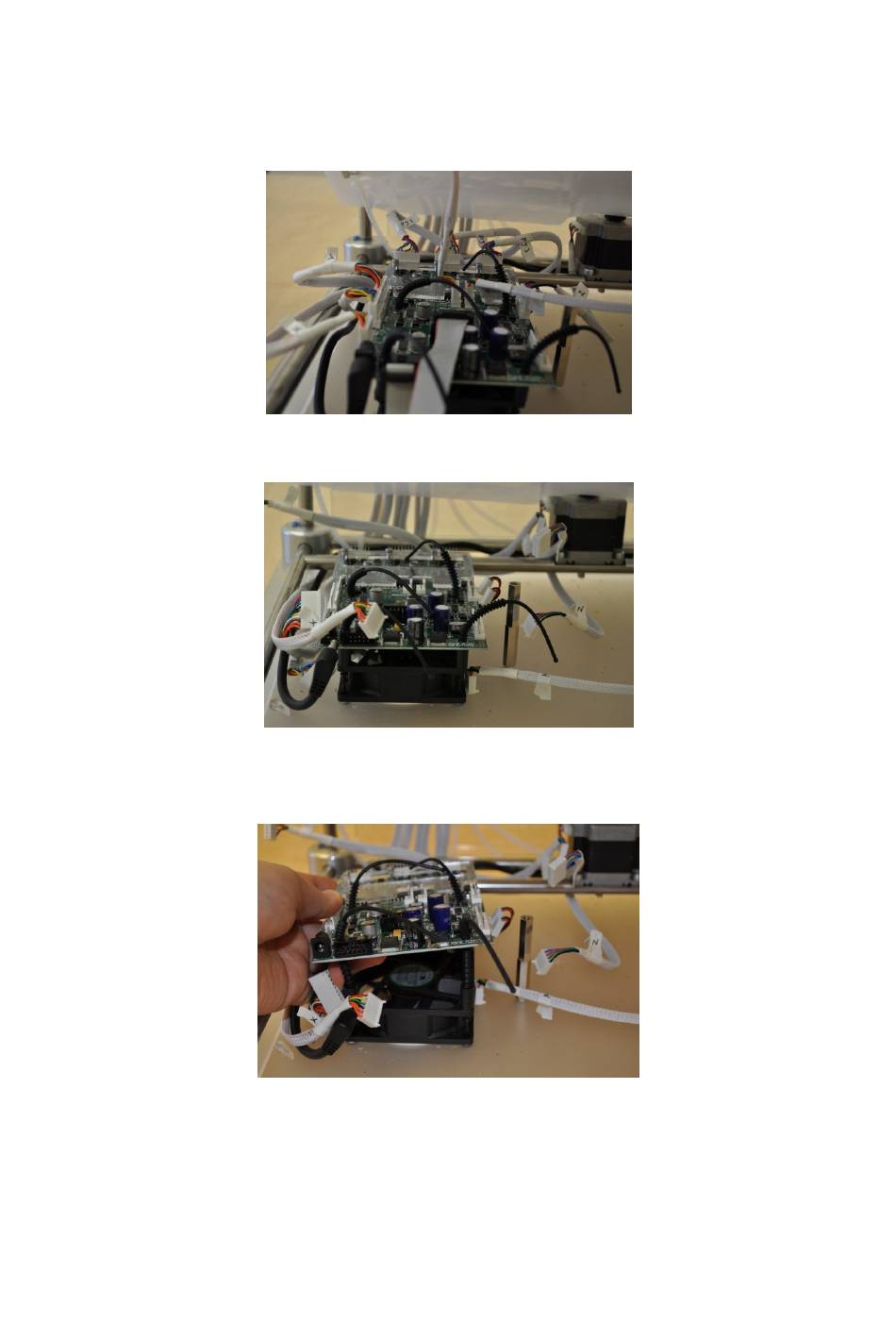

Removing the damaged Main Board PCB
Before removing the Main board PCB, label each of the looms that are plugged into
it. The PCB is marked to tell you which loom is plugged into which connector.
Remove the Looms and unplug the power supply from the main board PCB.
Gently pull up on the main board PCB to slide it off of the rubber ties holding it in
place.
6
