Summary of Contents for Insportline Steelflex PLBP

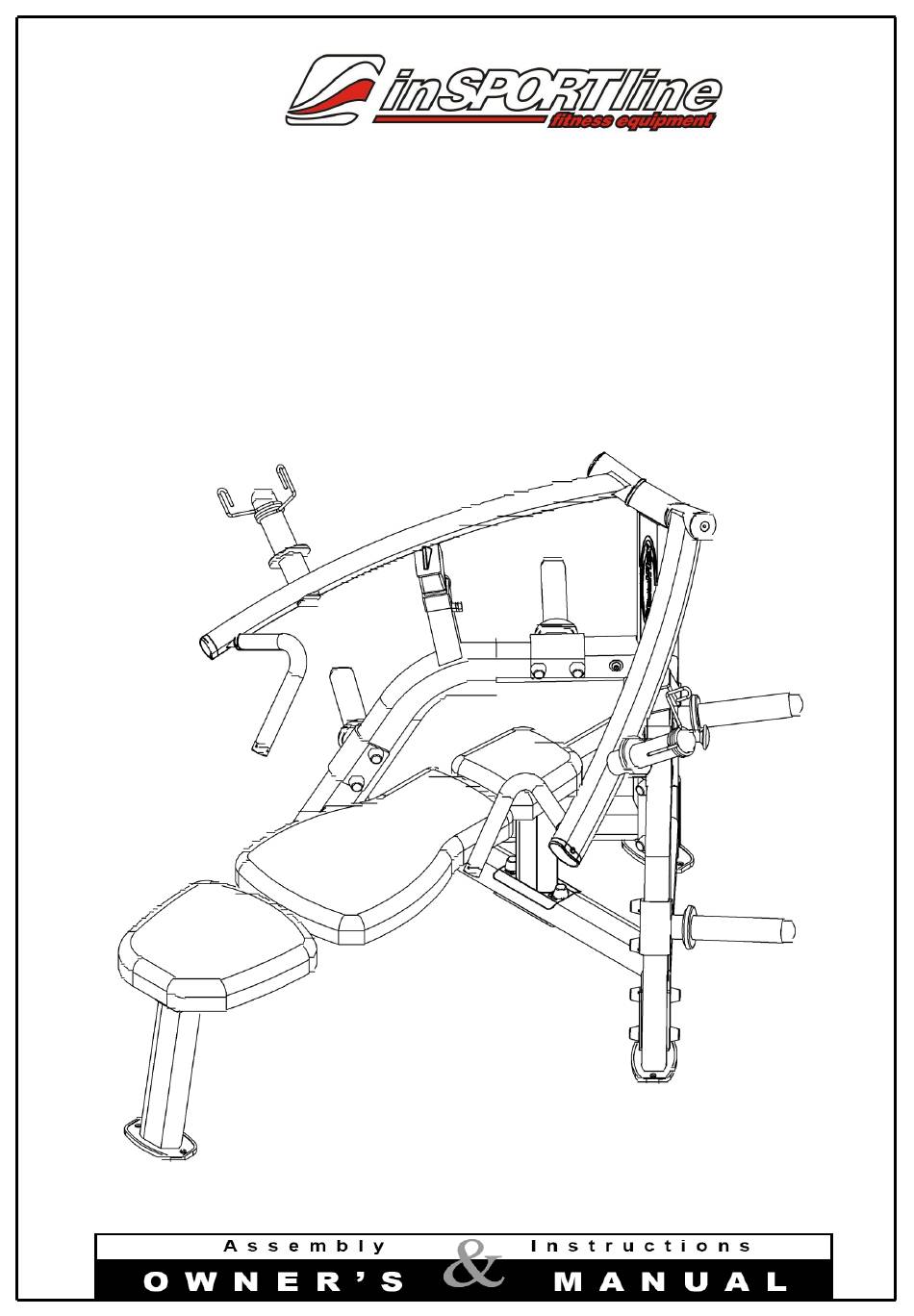

- Page 1 User manual - EN IN 5091 Steelflex PLBP – chest press...
- Page 2 PLBP HARDWARE (shown in actual size) A1. M10x75 HEX HEAD SCREW...10PCS A2. M10x65 HEX HEAD SCREW...8PCS A3. M10x20 ALLEN SCREW(FULL THREAD)...4PCS A4. M10x20 TAPER SCREW(FULL THREAD)...2PCS A5. M8x75 HEX HEAD SCREW...1PCS A6. M8x50 SOCKET SCREW(FULL THREAD)...4PCS A7. M8x25 HEX HEAD SCREW...8PCS inch 1"...
- Page 3 PLBP HARDWARE (shown in actual size) A8. M10x20 HEX HEAD SCREW...2PCS (Pre-installed) A9. M5x5 GRUB SCREW...8PCS (Pre-installed) A10. 1/2"x87.5L POP PIN (8250-124G)...2PCS (Pre-installed) B1. M10 NYLON LOCK NUT...10PCS B2. M10 LOCK NUT(5t)...2PCS (Pre-installed) inch 1" 2" 3" 4" 5" 6"...
- Page 4 PLBP HARDWARE (shown in actual size) C1. M10 PLATE WASHER( Ø30 )...28PCS C2. M10 WASHER( Ø27 )...4PCS C3. M8 WASHER( Ø24 )...9PCS C4. M8 SPRING WASHER...9PCS inch 1" 2" 3" 4" 5" 6"...
- Page 5 PLBP PARTS B [1PCS] A [1PCS] D [1PCS] C [1PCS] E [1PCS] F [2PCS] 6730003 I [1PCS] H [1PCS] J [4PCS] K [3PCS] 6730001 8323188 N [1PCS] M [1PCS] L [1PCS] 9131025 9111071 9121075...
- Page 6 PLBP PARTS D1. End Closure (8130-248) ............. [2PCS] D2. Compression Spring (8840-050) ..........[2PCS] D3. Ø50 End Cap (9211-020) ............[2PCS] D4. Nylon Bushing (9211-030) ............[2PCS] D5. Ø50 End Cap (9211-074) ............[6PCS] D6. 40x80 End Cap (9211-113) pre-installed........[2PCS] D7.
- Page 7 S T E P Above shows STEP 1 assembled and completed PLBP-062009...
- Page 8 S T E P Above shows STEP 2 assembled and completed PLBP-062009...
- Page 9 S T E P Above shows STEP 3 assembled and completed PLBP-062009...
- Page 10 S T E P Above shows STEP 4 assembled and completed PLBP-062009...
- Page 11 S T E P Above shows STEP 5 assembled and completed PLBP-062009...
