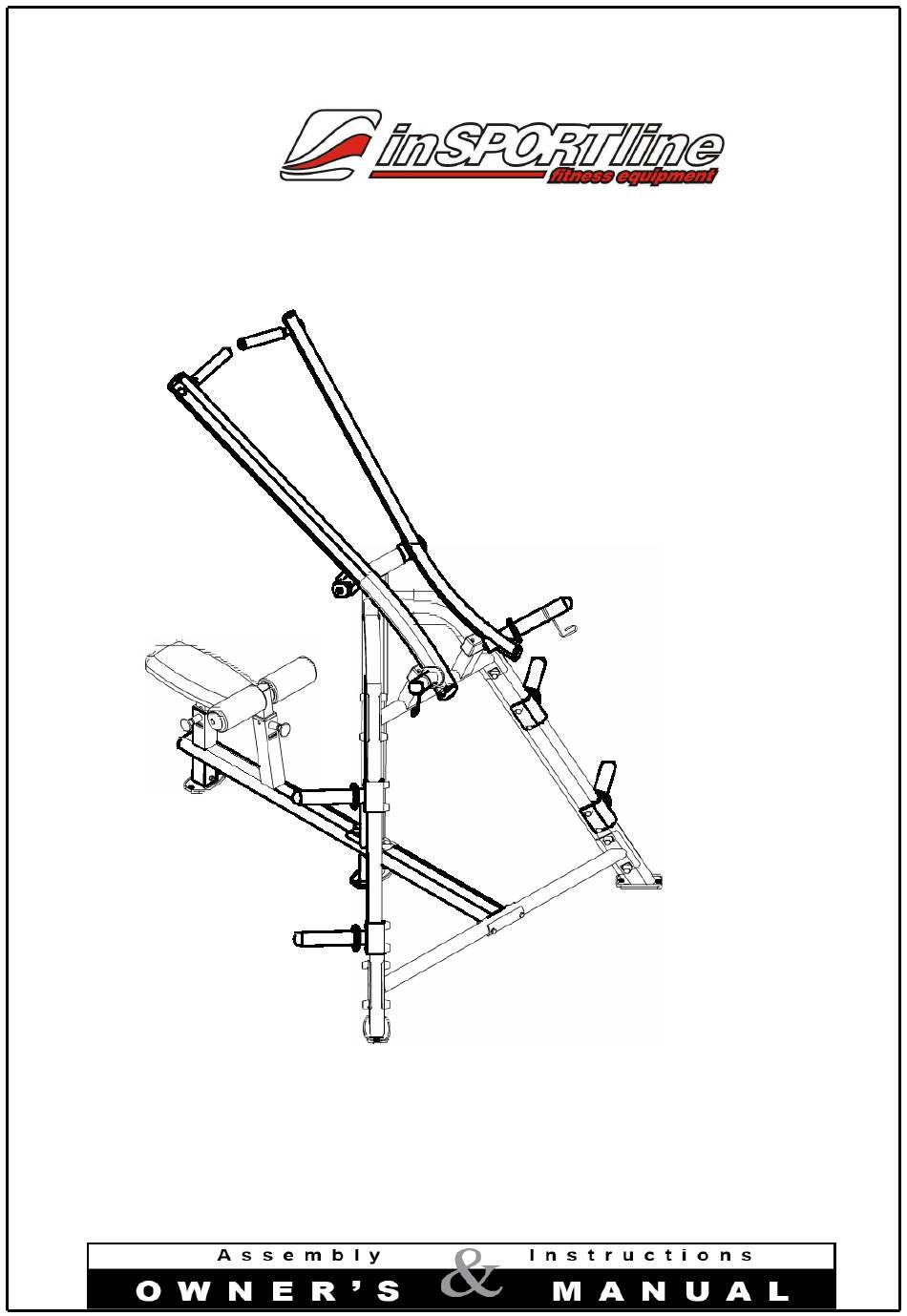

- Page 1 USER MANUAL - EN IN 5093 Steelflex PLLA – Pull down...
- Page 2 PLLA HARDWARE (shown in actual size) A1.M10X70L HEX HEAD SCREW ..10PSC A2.M8X20L HEX HEAD SCREW ..4PSC A3.M10X60L HEX HEAD SCREW..1PCS A4.M8X30L ALLEN SCREW (FULL THREAD)...2PCS A5.M10X25L ALLEN SCREW (FULL THREAD)...4PCS (Pre-installed) A6.POP PIN (8250-065G)...2PCS (Pre-installed) inch 2" 6" 1" 3" 4"...
- Page 3 PLLA HARDWARE (shown in actual size) A7.M8X50L SOCKET SCREW(FULL THREAD)...4PCS A8.M10X20L ALLEN SCREW(FULL THREAD)...4PCS A9.M10X20 TAPER SCREW(FULL THREAD)...4PCS (Pre-installde 2PCS) A10.M10X65L HEX HEAD SCREW...8PCS A11.M10X75L HEX HEAD SCREW...3PCS(Pre-installed 1PCS) inch 1" 2" 3" 4" 5" 6"...
- Page 4 PLLA HARDWARE (shown in actual size) C1.M10 PLATE WASHER (Ø30)...28PCS C2.M8 WASHER (Ø18)...4PCS C4.M10 CURVED WASHER...6PCS C3.M8 SPRING WASHER...6PCS (Pre-installed 2PCS) C5.M10 WASHER (Ø27)...4PCS C6.M10 WASHER (Ø19)...2PCS (Pre-installed) C7.M10 SPRING WASHER...2PCS B1.M10 NYLON LOCK NUT...14PCS (Pre-installed) (Pre-installed)1PCS...
- Page 5 PLLA PARTS A[1PCS] B[1PCS] D[2PCS] C[1PCS] P[4PCS] F[1PCS] E[1PCS] G[1PCS] 6730001 Q[1PCS] 8830-023 M[1PCS] H[1PCS] Pre-installed 9121078 J[4PCS] K[1PCS] I[1PCS] 8323188 8343163...
- Page 6 PLLA PARTS D1.50X100 END CAP (9211-114)............. 1PCS D2.RUBBER INSERT(9310-076)............. 4PCS D3.NYLON BUSHING(9211-047)............. 2PCS D6.CAP SLEEVE (9212-026)..............26PCS D7.PULLEY SPACER(8530-009)............2PCS D8.FOAM ROLLER(9161-009)..............2PCS D9.NYLON WASHER(9214-008)............. 2PCS D10.END COVER (9211-157)..............2PCS D11.END CAP(9211-091)................. 1PCS D12.RUBBER INSERT(9310-077)............2PCS D13.END CLOSURE(8130-248)............... 2PCS D14.CO ER WASHER(8520-008)............2PCS D15.RUBBER INSERT(9310-016)............
- Page 7 S T E P Above shows STEP 1 assembled and completed...
- Page 8 S T E P Above shows STEP 2 assembled and completed...
- Page 9 S T E P Above shows STEP 3 assembled and completed...
