5.3.3 Touch Current
General Information
Connect the measurement tip of your measuring device with the conductive parts shown in the
table below and measure the touch current.
Some test points may not be applicable for your Buzz variant.
Touch Current
The touch current test for ME SYSTEM may repeat some of the measurement points as defined
for equipment leakage current.

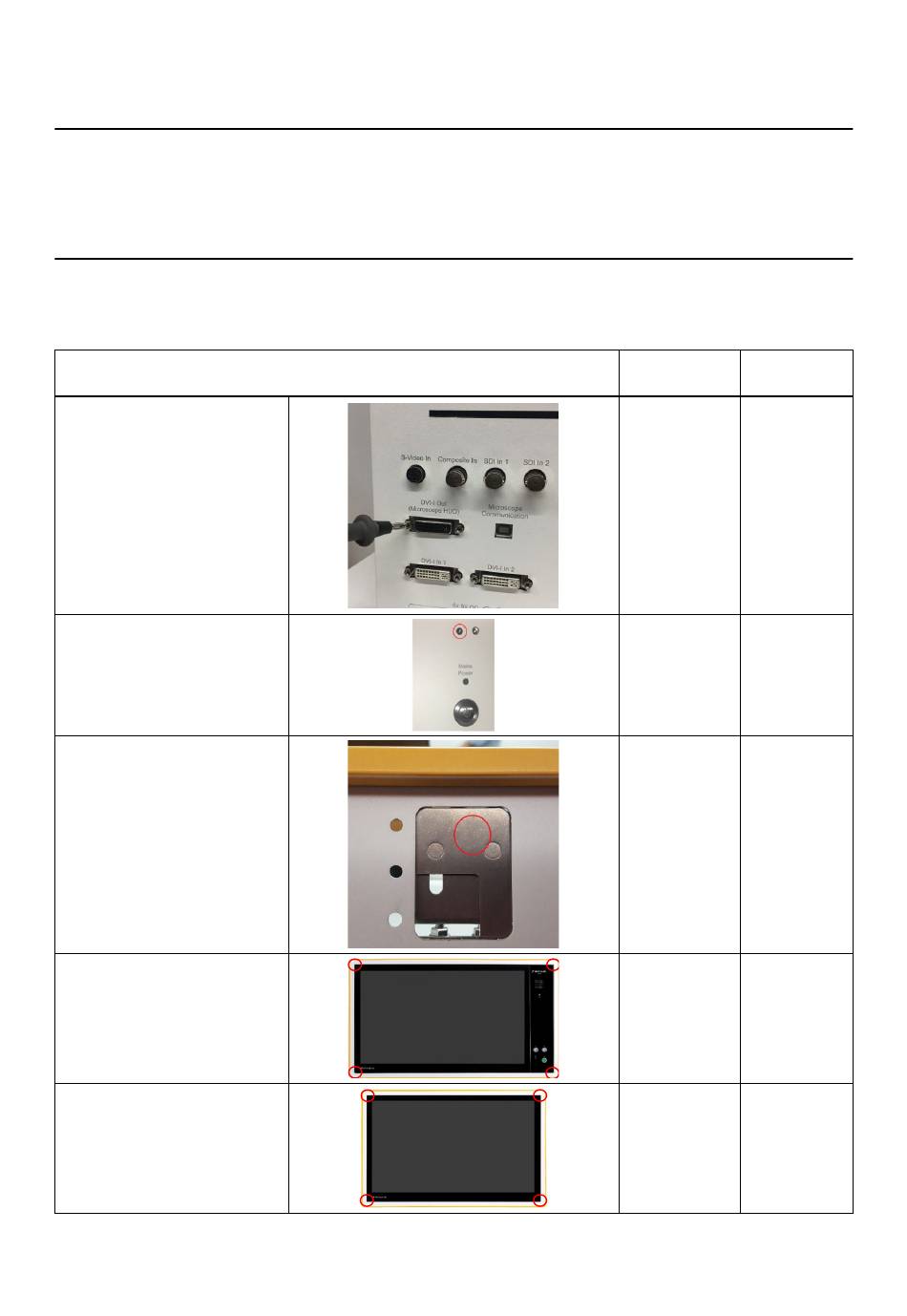

Point Tested
Screw of DVI-I Out on computer
user panel
Computer (measurement point on
power button)
(On-wall Frame only) Right bot-
tom hole of 42" Display to con-
nect to the metallic Feature Panel
Touch Display In-Wall Frame
(overview of potential measure-
ment points)
Additional Touch Display In-Wall
Frame (overview of potential
measurement points)
74
Measured Val-
ue
System and Technical User Guide Rev. 1.2 Buzz Ver. 2.0
Test Passed?
