System Components

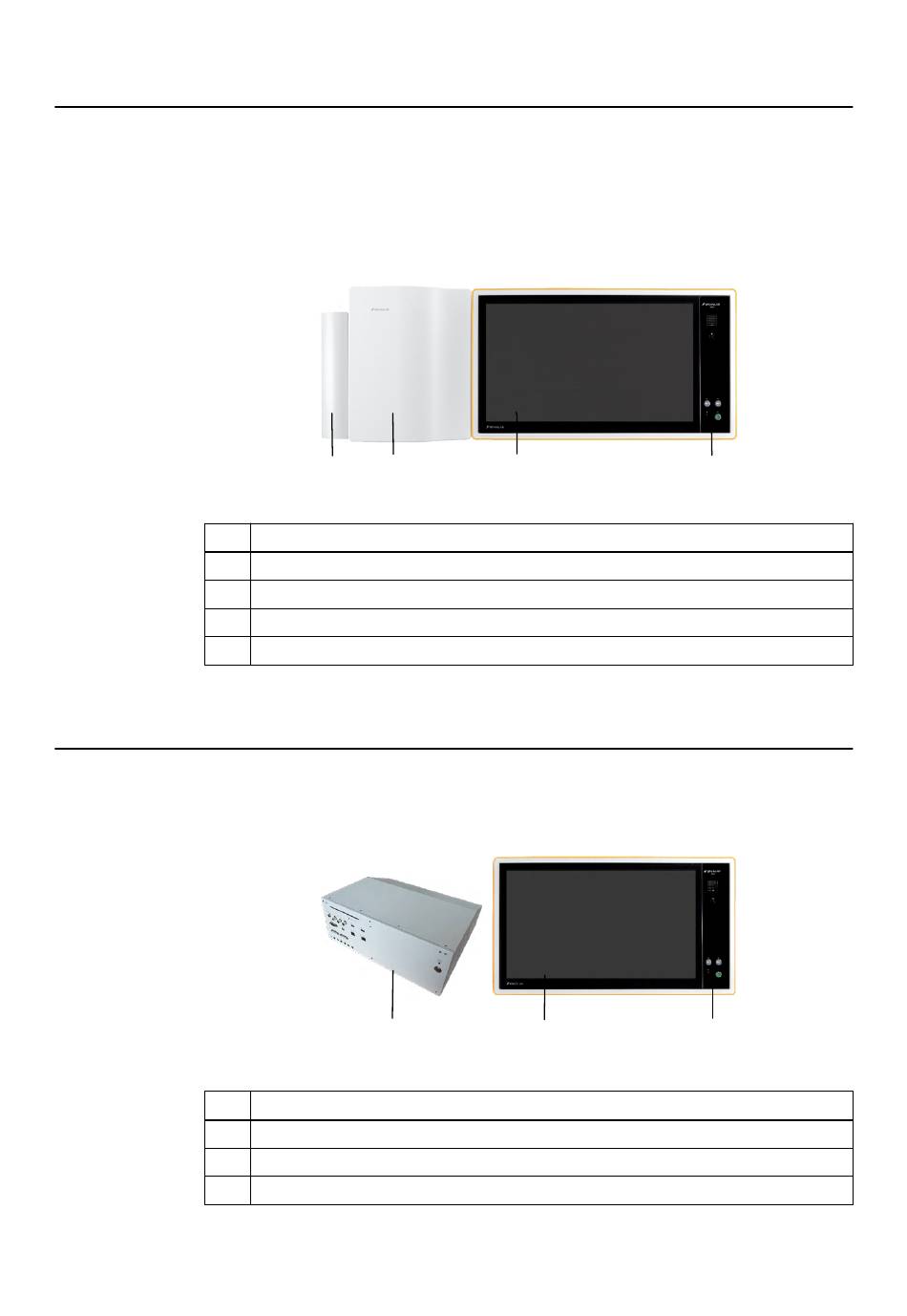

Buzz On-Wall
Buzz On-Wall can be mounted with all components attached to each other in a central location.
The computer can be mounted up to 2.5 m away from the touch display when connected using
copper cables.
When optical transfer lines are used to connect computer and touch display, the distance can be
up to 100 m. In this case the computer may be located in a control room rack, for example.
No.
①
②
③
④
NOTE: The cables connecting the computer to the touch display are visible when connected using
copper cables and not mounted next to each other.
Buzz In-Wall
Buzz In-Wall comprises a touch display integrated in the wall. Additional components are
separate and may be located in a control room rack, for example.
No.
①
②
③
22
①
②
Component
User panel (behind cover)
Computer (including cover)
Touch display
Feature panel
①
Component
Computer
Touch display
Feature panel
③
Figure 1
②
Figure 2
