XtendLan DPC-441 User Manual

DPC-441
User's manual
Precautions: Do not install camera/bell where there would be a bright light behind the visitor (or where there
would be a bright background), or in a place where the camera lens would be directly exposed to sunlight or a
bright light. If light shines directly into the outdoor camera lens, the image will be over-exposed; it will look white or
silhouetted. Take precautions against this. Do not install the unit in places where is constant vibration, extreme heat
or unusual external interference.
Important: Connect the 1R/2W/3Y/4B of Camera to 1R/2W/3Y/4B of Monitor. ONLY one type of electronic
lock, which is Power-On-To-Open(Power-to-Unlock) type, can be connected to the Camera.

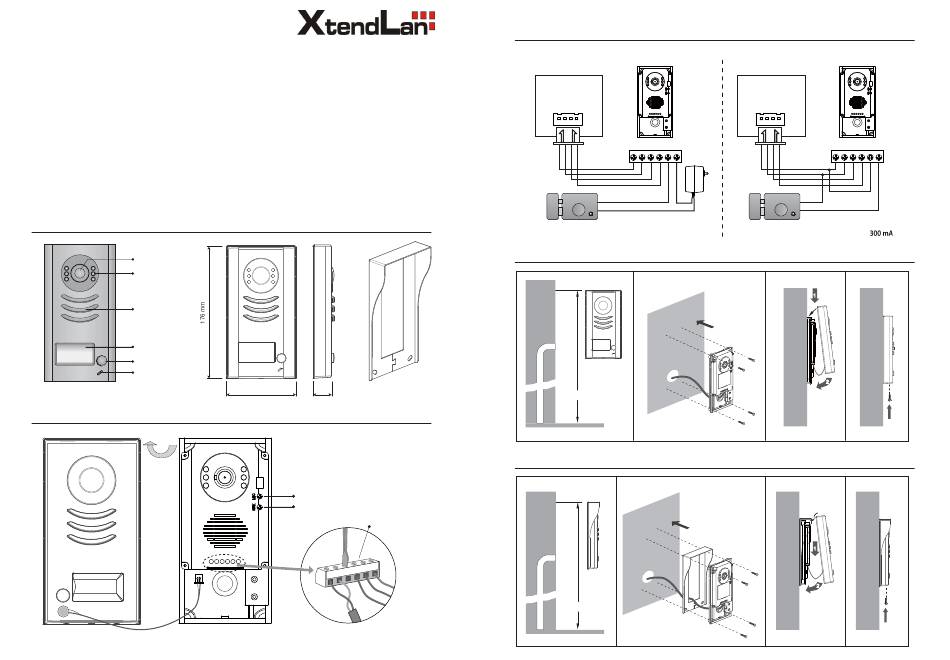

Parts and functions

Camera Lens
Night View LED
Speaker
Nameplate
Name
Call Button
Microphone

Terminal Descriptions

90 mm
23 mm
MIC adjustment
SPK adjustment
Connection Port
1
2
3Y 4B
1 R 2 W

System and Lock Connection

Use Additional Power Supply
Indoor Monitor
Connection Port
1R 2W 3Y 4B
1R 2W 3Y 4B 2 1
+
+
-
Safety Type: Power-on-to-open
The lock consumption must not
greater than 48V 1.5A.

Mounting Without Rain Cover

1
160-165cm

Mounting With Rain Cover

1
160-165cm
Power Supply From Monitor
Indoor Monitor
Connection Port
1R 2W 3Y 4B
1R 2W 3Y 4B 2 1
-
-
+
Safety Type: Power-on-to-open
The lock consumption must not
greater than 12V 500mA.
2 3
1
2
2 3
1
2
4
4
