SINGLE FAMILY VIDEO INTERCOM

SYSTEM

DPC-434 series outdoor camera

David

■

CAMERA ANGLE ADJUSTABLE

■

NAMEPLATE CALL BUTTON

■

INFRARED NIGHT VIEW FUNTION

DPC-434 Installation Manual

Outdoor Camera (Outdoor Station)

Features:

Suitable for 4-wires Single Entry system, compatible with VT6xx serials of monitors

Call button with blue backlight nameplate , up to 4 Monitors directly

Flush mount, and easy to be installed in a 86x86 box

Capable of installing with Rainy Cover in flush or surface mount.

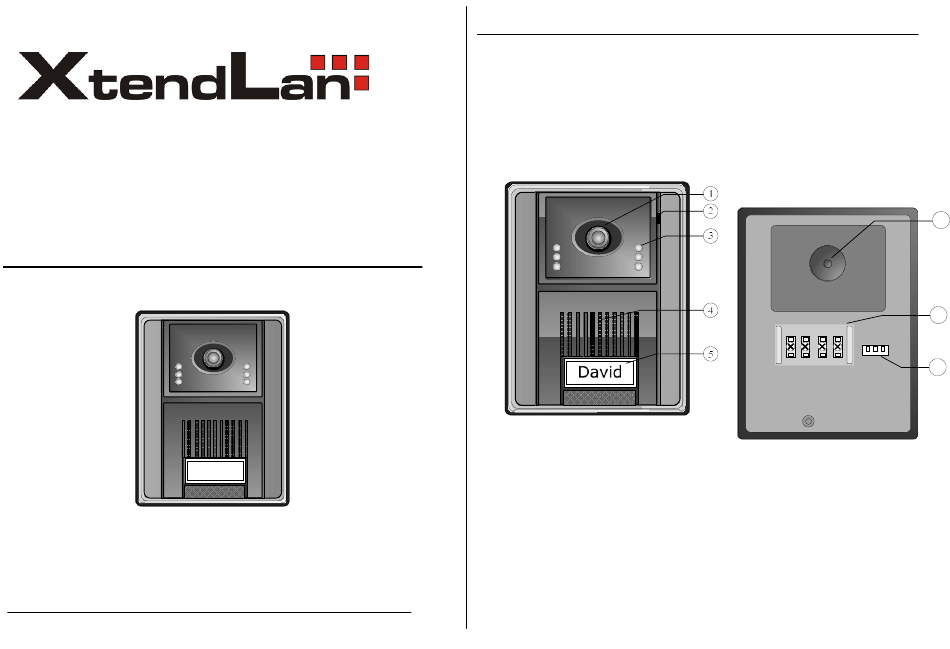

Parts and Functions:

Dimensions: 130(H)×98(W)×40(D)

1. Camera lens: To capture the video image of the visitor.

2. Microphone: To collect the voice of the visitor.

3. Night view LED: To enhance the brightness when the outside is dim.

4. Speaker: To send out the voice from the indoor.

5. Call button: To call the indoor monitor.

6. Angle adjust: To adjust different angles of the camera lens.

7. Connection Port: To connect to the indoor monitor, C3-4P cable should be used.

(NOTE: 1R-power positive, 2W-power negative, 3Y-video signal, 4B-audio and data)

8. Unlock Port LB: To connect to the electronic lock, C3-3P cable should be used.

1R 2W 3Y 4B

L B
