Titan Lifts HDML-1500XLT-E Installation, Operation & Maintenance Manual

1,500 lb capacity electric motorcycle/atv lift
Hide thumbs
Table of Contents

Advertisement

Quick Links

®
INSTALLATION, OPERATION,
& MAINTENANCE MANUAL
MODEL:
HDML-1500XLT-E

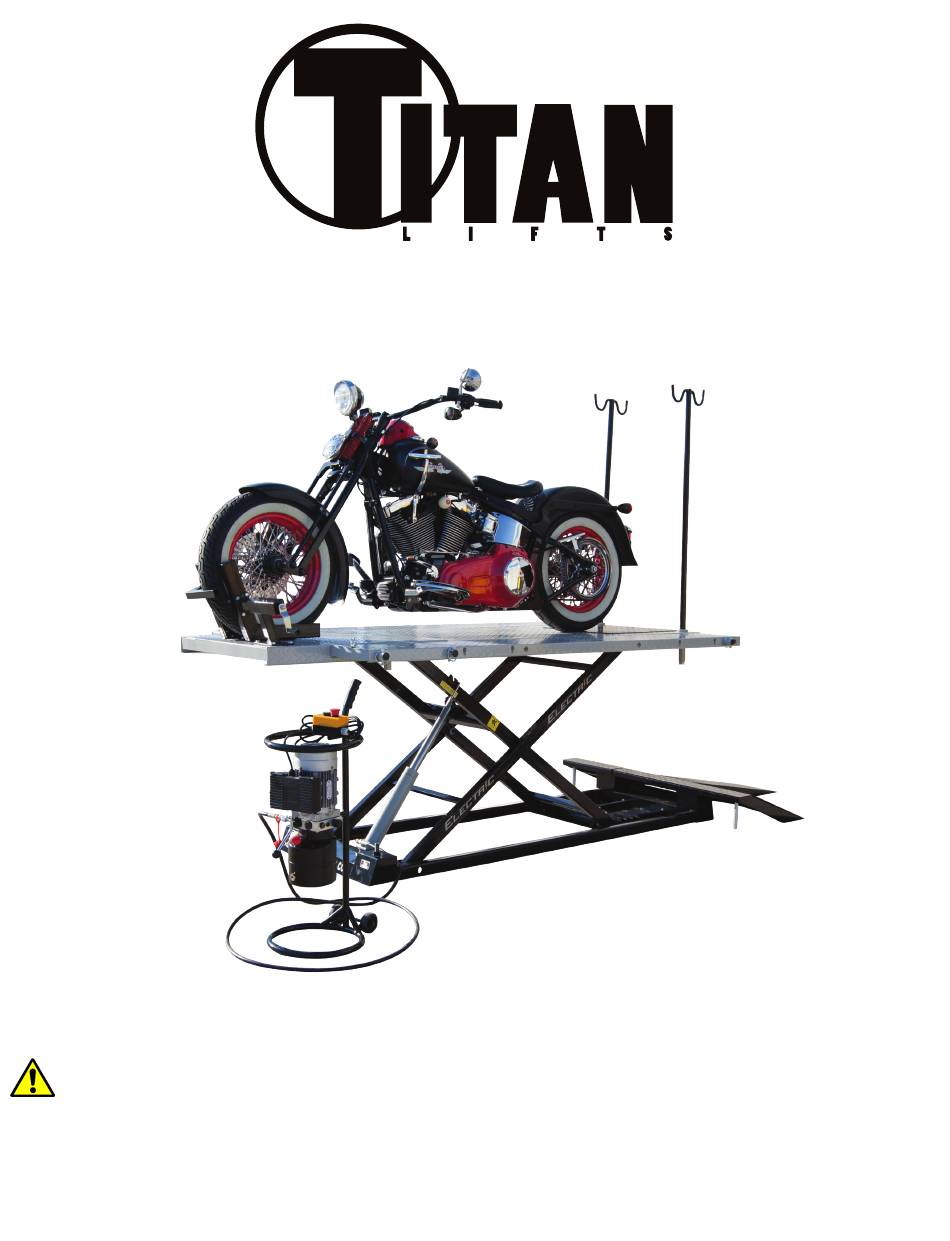

1,500 LB CAPACITY ELECTRIC MOTORCYCLE/ATV LIFT
FOLLOW THIS MANUAL CAREFULLY TO ENSURE THE MACHINE WILL
FUNCTION CORRECTLY AND PROVIDE MANY YEARS OF DEPENDABLE SERVICE.
FAILURE TO FOLLOW THESE INSTRUCTIONS AND SAFETY WARNINGS MAY
RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE. USE OF STRAPS IS
RECOMMENDED - SOLD SEPARATELY. KEEP THIS MANUAL IN A SAFE DRY PLACE
FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDML-1500XLT-E and is the answer not in the manual?

Questions and answers

Related Manuals for Titan Lifts HDML-1500XLT-E

Summary of Contents for Titan Lifts HDML-1500XLT-E

  • Page 1 ® INSTALLATION, OPERATION, & MAINTENANCE MANUAL MODEL: HDML-1500XLT-E 1,500 LB CAPACITY ELECTRIC MOTORCYCLE/ATV LIFT FOLLOW THIS MANUAL CAREFULLY TO ENSURE THE MACHINE WILL FUNCTION CORRECTLY AND PROVIDE MANY YEARS OF DEPENDABLE SERVICE. FAILURE TO FOLLOW THESE INSTRUCTIONS AND SAFETY WARNINGS MAY RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE.
  • Page 2 Claims must be filed to cover cost. If you have any questions or if we can be of any further assistance, please don’t hesitate to contact a Titan Lifts® representative at 1-888-908-4826. Thank you for the opportunity to continue to serve your lift equipment needs.

  • Page 3: Table Of Contents

    CONTENTS INSTRUCTIONS ......................... 1 OPERATION & MAINTENANCE ..................2 SAFETY PRECAUTIONS ....................3 PARTS LIST (FIG. 1) ......................4 PARTS LIST (FIG. 1) - CONTINUED ................... 5 RAM PARTS DETAIL (FIG. 2) ..................... 6 POWER UNIT (FIG. 3) ......................7 ROLLER DROP-OUT PARTS DETAIL (FIG.

  • Page 4: Instructions

    INSTRUCTIONS WARNING: READ ENTIRE MANUAL AND COMPLY WITH ALL SAFETY AND SERVICE PRECAUTIONS. DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY OCCUR IF INSTRUCTIONS ARE NOT FOLLOWED CAREFULLY. UNPACKING AND SET-UP *REFER TO PARTS LIST FIG. 1 1. Carefully unpack the lift making sure that all of the parts have been included. 2.

  • Page 5: Operation & Maintenance

    OPERATION & MAINTENANCE *REFER TO PARTS LIST FIG. 1 * TEST THE LIFT SEVERAL TIMES FOR PROPER OPERATION BEFORE ATTEMPTING TO LIFT A LOAD. 1. Raise Casters (22) to lower lift off Casters (22) onto solid surface. 2. Roll motorcycle onto Deck Plate (8) until Wheel is inside the Clamp (10 & 16). 3.

  • Page 6: Safety Precautions

    16. Industrial applications must follow OSHA requirements. 17. Do NOT use for aircraft purposes. 18. Have your lift serviced by a qualified technician using only identical Titan Lifts ® replacement parts and attachments. This will ensure that the safety of the lift is maintained.

  • Page 7: Parts List (Fig. 1)

    PARTS LIST (FIG. 1) PLEASE MAKE SURE TO CONFIRM THAT ALL PARTS ARE INCLUDED.

  • Page 8: Parts List (Fig. 1) - Continued

    PARTS LIST (FIG. 1) - CONTINUED DESCRIPTION DESCRIPTION STAND POLE RETAINING NUT M8 STANDARD DROPOUT PLATE SAFETY CABLE LOCK BOLT QUICK PIN WHEEL ROLLER DROP OUT PLATE (See Fig. 4) RAMP STAND CONNECTING BAR RAMP-LEFT ADJUST LEG RAMP-CENTER SIDE EXTENSIONS ( RIGHT & LEFT) RAMP-RIGHT DECK PLATE EXTENSION RAMP...

  • Page 9: Ram Parts Detail (Fig. 2)

    RAM PARTS DETAIL (FIG. 2) DESCRIPTION DESCRIPTION RAM COVER CYLINDER CASING (GREY) DUST SEAL WASHER BACK-UP RING FILLER NET SPRING COLLAR RELEASE VALVE PISTON ROD BALL O-RING ADAPTER FITTING PISTON HEAD 90 DEGREE FITTING PISTON RING O-RING SEAL GASKET HYDRAULIC HOSE OIL SEAL HYDRAULIC HOSE FITTING ROUND NUT...

  • Page 10: Power Unit (Fig. 3)

    POWER UNIT (FIG. 3) DESCRIPTION DESCRIPTION WASHER Φ10 HANDLE SLEEVE WHEEL THREE-PIN PLUG WITH WIRE RETAINING RING Φ12 SCREW M4*15 PUMP BED-FRAME BOLT M10*20 COUPLING RING LOCK WASHER Φ10 ELECTRIC HYDRAULIC PUMP COUPLING BOLT BLOCK TERMINAL - GREEN O-RING EMERGENCY BUTTON - RED DUST CAP CONTROL BUTTON - GREEN...

  • Page 11: Roller Drop-Out Parts Detail (Fig. 4)

    ROLLER DROP-OUT PARTS DETAIL (FIG. 4) DESCRIPTION DROPOUT PLATE (COLOR) RETAINING NUT M8 BEARING ROLLER BUSHING...

  • Page 12: Checking & Filling Hydraulic Fluid

    CHECKING & FILLING HYDRAULIC FLUID 1. Lower the lift completely. Remove the fill cap. 2. The oil level should be even within the minimum and maximum range on the fill cap dipstick. 3. If the fluid level is low, add premium quality ISO-32, AW-46 hydraulic oil. DO NOT USE ANY OTHER FLUID OR BRAKE FLUID.
  • Page 13 WARRANTY REGISTRATION In order to utilize the warranty on this Titan Lifts product, you must register your product with us. The TITANLIFTS.COM/WARRANTIES simplest way to do this is to visit and submit your information online. If you prefer to send your information through the mail, please fill out the form below and send this page to us at :...
  • Page 15 LIMITED WARRANTY The Titan 2 Post lifts, 4 Post lifts and Bridge Jacks are backed by a standard 1-year replacement parts warranty and a 5-year structural warranty from the date of purchase, to the original purchaser only. The 1-year replacement parts warranty covers power units, hydraulic cylinders, and all other assembly components such as, but not limited to: turn plates, slip plates, cables, chains, valves, switches etc.
  • Page 16 WARNING The warnings, precautions and instructions in this manual cannot cover all possible conditions and situations that may occur. The operator must understand that the operator must supply common sense and examine caution factors when using this product to determine safety in all circumstances being used. ®...
