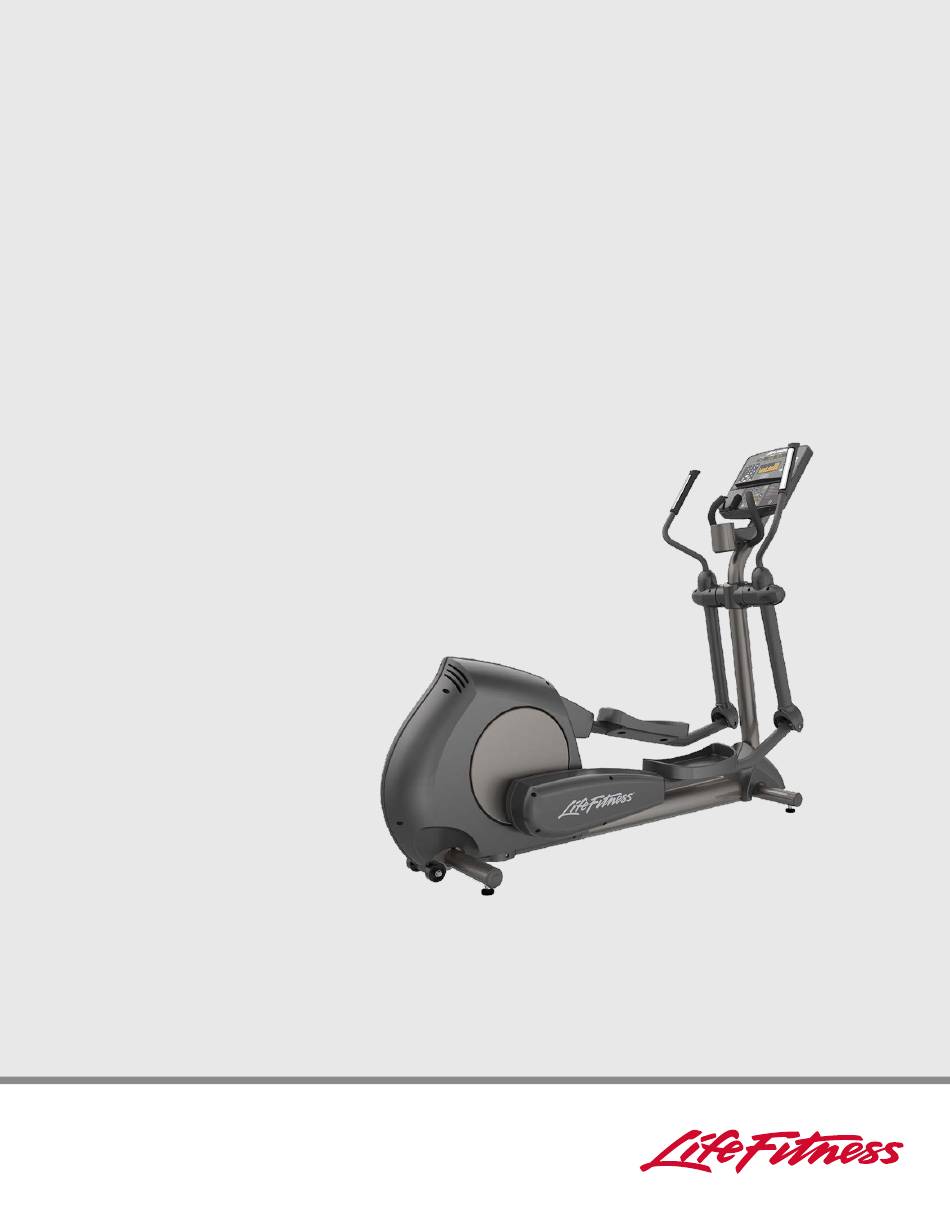

- Page 1 INTEGRITY AND CLUB SERIES CROSS-TRAINERS CLSX & CSX ASSEMBLY INSTRUCTIONS M051-00K61-0131 REV F...
- Page 3 21 Wong Chuk Hang Road marketing.benelux@lifefitness.com HONG KONG Operating Hours: 9.00h-17.00h (CET) Telephone: (+852) 2575.6262 Fax: (+852) 2575.6894 Service Email: HongKongEnquiry@lifefitness.com Sales/Marketing Email: * Also check www.lifefitness.com for local representation or distributor/dealer Marketing.HK.Asia@lifefitness.com Operating Hours: 9.00h-17.00h Service Operating Hours: 9.00h-18.00h...
- Page 4 Please take special note of the following safety instructions and important points prior to choosing a location and beginning assembly of the Integrity and Club Series Cross-Trainers. WARNING: Health-related injuries may result from incorrect or excessive use of exercise equipment. LIFE FITNESS STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program, particularly if the user has a family history of high blood pressure or heart disease, is over the age of 45, smokes, has high cholesterol, is obese, or has not exercised regularly in the past year.
-
Page 5: Table Of Contents
Table of Contents 1. Getting Started ................4 1.1 Important Safety Instructions . -
Page 6: Getting Started
Getting Started 1.1 Important Safety Instructions Read all instructions before using the LIFE FITNESS Cross-Trainer. • DANGER: To reduce the risk of electrical shock, always unplug LIFE FITNESS products before cleaning or attempting any maintenance activity. • WARNING: To reduce the risk of burns, fire, electric shock, or injury, it is imperative to connect each product to a properly grounded electrical outlet. - Page 7 1.1 Consign s De S curit Importantes É É É Lire toutes les instructions avant d’utiliser les appareils LIFE FITNESS. • DANGER: Pour réduire les risques de décharge électrique, toujours débrancher cet appareil LIFE FITNESS avant le nettoyage ou toute mesure d’entretien. •...
-
Page 8: Set-Up
Set-Up Read the entire manual before setting up the LIFE FITNESS Cross-Trainer. 1 ft” (0.3 m) Where to place the Life Fitness® Cross-Trainer Follow all Safety Instructions in Section 1.1 and move the Life Fitness Cross-Trainer to the location in which it will be used. See Section 4, Specifications, for the dimensions of the footprint. - Page 9 Grounding Instructions (Applicable for Units Using External Power Supply) This Life Fitness product must be properly grounded. If the unit malfunctions or breaks down, proper grounding pro- vides a path of least resistance for the electric current, which reduces the risk of shock to anyone touching or using the equipment.
-
Page 10: Service And Technical Data
Gym Wipes are large, durable pre-moistened wipes to use on the equipment before and after workouts. Use Gym Wipes on the equipment for at least 2 minutes for general disinfection purposes. Contact Customer Support Services to order these cleaners (1.800.351.3737 or email: customersupport@lifefitness. com). -
Page 11: Preventive Maintenance Schedule
2. Locate and write down the serial number of the unit which is located on the back of the unit near the toe guard. Document the serial number, which consists of three letters followed by six numerals. 3. Contact LIFE FITNESS Customer Support Services via the Web at: www.lifefitness. com, or call the nearest LIFE FITNESS Customer Support Services group (refer to page 1 of this manual). -
Page 12: Assembly
Assembly Component List Part Description Hex Socket Head Cap Screw Phillips Pan Head Screw Phillips Pan Head Pointed Screw Console Assembly (shipped separately) Front Monocolumn Cover Back Monocolumn Cover Console Support Assembly Flat Washer Left Front Cover Right Front Cover Left User Arm Assembly Right User Arm Assembly Front Rocker Cover... - Page 13 Hardware FLAT WASHER (#8) INTERNAL TOOTH LOCK WASHER (#18) #8-18 X 3/4”PHILLIPS PAN HEAD #8 -18 X 10 PHILLIPS PAN HEAD SCREW (#2) POINTED SCREW (#3) 3/8 -16 X 1” HEX SOCKET HEAD CAP SCREW (#1) GROMMET (#20) Tools Required •...
- Page 14 IMPORTANT! DO NOT DISCARD THE SHIP KIT LOCATED ON TOP OF THE PEDAL LEVERS. ALL NECESSARY COMPONENTS NEED- ED TO COMPLETE THE INSTALLATION ARE LOCATED IN THE SHIP KIT. NE JETEZ PAS LE KIT PLACÉ SUR LE DESSUS DES LEVIERS DE PÉDALE. IL CONTIENT TOUSLES ÉLÉMENTS NÉCES- SAIRES POUR L’INSTALLATION.
- Page 15 8. Attach the 4-Pin (4P) and 16-Pin (16P) Connectors to the cor- responding Jacks on the back of the Console Assembly (4). 9. Feed any excess Wire Harness (E) down into the Console Support Assembly (7). Secure the Console Assembly (4) to the Console Support Assembly using four Phillips Pan Head Screws (2).
-
Page 16: Specifications
Specifications Life Fitness CLSX & CSX Cross-Trainers Designed use: Heavy / Commercial (CLSX) Home (CSX) Maximum User Weight: 350 pounds / 160 kilograms CSX:120 volt, 1.0 amp (U.S. & Canada); 100- 240 volt, 1.0 amp (outside U.S. & Canada) Power Requirements: Console Displays: Elapsed time, total distance, total calories burned, calories burned per hour, heart rate, target heart rate, Watts, METs, workout profile, resistance level, speed...
